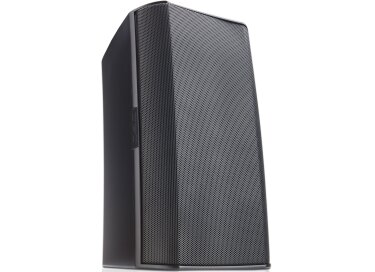

QSC AD-S8T

Projecteur de son de la marque QSC appartenant à la série AD-S

Écrire un avis ou Demander un avis

Présentation du produit Présentation

Avis

Comparateur de prix

Petites annonces

Forums

Annonces AD-S8T

Alerte nouvelle annonce

Fiche technique

Fabricant : QSC
Modèle : AD-S8T
Série : AD-S
Catégorie : Projecteurs de son
Fiche créée le : 13/11/2015

Features

8” weather treated woofer; 1.4” compression driver
105° conical DMT coverage
60 watt low-saturation and low-loss 70/100V transformers with 8Ω bypass
Maximum peak SPL 119 dB (8Ω bypass)
DMT™ (Directivity Matched Transition) ensures smooth, uniform frequency response over the coverage area
X-Mount™ system enables the loudspeaker to be easily installed and deployed at a variety of angles with no slippage over time
Optional Yoke mount and M10 Kit-C for additional installation versatility
Advanced voicing filter sets using QSC Intrinsic Correction™, available through either Q-SYS processing or CXD amplifier platforms
Lightweight ABS enclosures offer long-term durability and lasting good looks
Sealed input panel cover and powder coated aluminum grilles for added weather resistance
Meets IEC60529 IP-54 for dust and splash resistance
Available in black (RAL 9011) or white (RAL 9010)
Complete EASE, CF2, CAD, and BIM information available online

System Details	AD-S8T
Effective frequency range1	55 Hz - 20 kHz
Rated noise power / voltage2	200 watts / 40 volts (rms)
Broadband sensitivity3	90 dB SPL
Coverage angle (-6 dB)	105° conical DMT
Directivity factor (Q)	7
Directivity Index	9 dB
Maximum continuous SPL4	113 dB
Maximum peak SPL4	119 dB
Rated impedance	8 ohms
Recommended amplifier power (loudspeaker "program" power)	400 watts
Transformer taps	70 V: 60, 30, 15, 7.5 W and 8Ω bypass 100V: 60, 30, 15 W and 8Ω bypass
HF transducer	1” exit / 1.4” voice coil compression driver
LF transducer	8” weather resistant paper cone woofer 2” / 51 mm voice coil
Input connector type	Euroblock connector with parallel output terminals
Enclosure material	Painted ABS polymer
Grille material	Powder coated aluminum
X-Mount material	Powder coated aluminum
Enclosure Details
Ingress protection	IP-54
Operating environment	Designed for indoor and outdoor use
Testing	The AD Series loudspeakers qualified for outdoor use using the following tests: Salt fog: MIL-STD-810G Method 509.5 for 100 hrs. Humidity: MIL-STD-810G Method 507.5, Natural cycle B2, cyclic high RH for 7 days High and low temperature: tested to QSC internal standards between -20° and 50° C
Net weight	24.1 lb / 11 kg
Product dimensions (HWD) inches	17.3 × 10 × 9.9
Product dimensions (HWD) mm	440 × 254 × 251
Shipping weight	32.1 lb / 14.5 kg
Shipping dimensions (HWD) inches	24.3 × 13.8 × 13.8
Shipping dimensions (HWD) mm	729 × 351 × 351
Included accessories	X-Mount mounting system, Euroblock connector, input panel cover
Optional accessories	YMS8T yoke mount, M10 Kit-C
1 Free-field, -10 dB from on-axis sensitivity 2IEC60268-1 noise signal for 2 hours 3On-Axis, free-field sensitivity, 2.83V, 1 m 4Calculated from rated noise voltage and sensitivity

Source : http://www.qsc.com/systems/products/loudspeakers/surface-mount-loudspeakers/acousticdesigntm-series-surface-mount/ad-s8t/
