Fiche technique
- Fabricant : nUX
- Modèle : Amp Force
- Série : Force
- Catégorie : Simulateurs d'amplis/baffles guitare en pédales
- Autres dénominations : ampforce

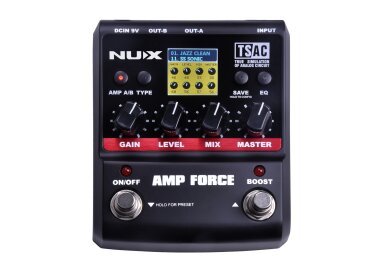

L'Amp Force est une pédale offrant 12 simulations d'amplis guitare et 12 de cabinet. Il est possible d'envoyer un ampli différent sur chacune des sorties. Vous pouvez enregistrer jusqu'à 9 presets.
General
- Amp emulation: 12 (see list below)
- Cabinet emulation: 12 (see list below)
- Presets: up to 9 storable user presets plus manual mode
- Display: 128*128 TFT
- Controls:
- Knobs: Gain, Level, Mix, Master
- Buttons: Amp A/B, Type, Save, EQ
- Footswitches: On/Off, Boost
- Connectors: Input, Output A, Output B, DC In
Technical Data
- Sampling frequency: 44.1 kHz
- A/D converter: 24 bit
- Signal processing: 32 bit
- Frequency response: 20 Hz - 20 kHz ±1 dB
- THD+N: 93 dBu (＜0.003%) A-Weighting
- Dynamic Range: 100 dB
- Input Level / Impedance: -20 dBV / 1 MΩ
- Output Level / Load Impedance: -10 dBV / 10 K or more
- Power: 9V DC (battery or AC Adapter, center negative)
- Current Draw: less than 300 mA
- Dimension (LxWxH): 125 x 108 x 57 mm
- Weight: 390 g
Amp Modeled
- Jazz Clean: Roland JC-120
- BLK Panel: Fender Deluxe Reverb
- Blues Man: Fender Bassman
- Class 30A: Vox AC30TB
- Crunch US: Mesa Boogie Mark IV
- Plexi Face: Marshall JTM45
- Super Face: Marshall Super Lead 100W
- T800: Marshall JCM 800
- Solo 100: Soldano SLO100
- Dual Rect: Mesa Boogie Dual Rectifier Solo Head
- SS Sonic: modern solid state amp
- Big Metal: tons of fain and deep low end
Cab Modeled
- Jazz 2*2 : 2x12 Roland JC-120
- Black 112: 1x12 Fender Deluxe Reverb
- Tweed 112: 1x12 Fender Tweed Deluxe
- Bsman 410: 4x10 Fender '59 Bassman
- Twin 212: 2x12 Fender Twin Reverb
- Blue 212: 2x12 Vox AC30TB
- Match 112: 1x12 Matchless 30W
- Green 4*12: 4x12 Celestion Greenback
- V30 4*12: 4x12 Celestion Vintage 30
- T75 4*12: 4x12 Celestion G12-T75
- Rect 4*12: 4x12 Mesa Boogie Slant
- Cali 1*12: 1x12 Mesa Boogie Mark IV
Source : Mode d'emploi
»
