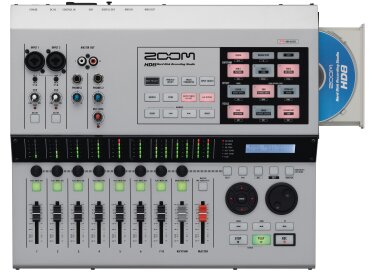

Zoom HD8

• Fabricant : Zoom
• Modèle : HD8
• Catégorie : Studios intégrés numériques
• Fiche créée le : 14/08/2013

Le HD8 est un appareil complet, permettant d'enregistrer, de mixer et de graver le résultat final. C'est un enregistreur audio 16 pistes, une boite à rythmes, un mixeur numérique, un multi-effets et aussi un graveur CD (optionnel).

Recorder

• Physical track: 16 (mono x8, stereo x4)
• Virtual take: 160 (10V-takes per track)
• Rhythm track: Stereo (Drum) x1, mono (bass) x1
• Simultaneous recording track: 8
• Simultaneous playback track: 19 (16audio + stereo drum + bass)
• Recording data format: 44.1kHz, 16bit mono WAV
• Maximum recording time: Approx.3hours/GB (in mono track)
• Project: 1000
• Marker: 100 points per project
• Locator: Minite/second/millisecond, measure/beat/chic
• Track editing: Copy, move, erase, exchange, trim, fade in/out, reverse, time stretch, pitch fix, harmony generate, duo harmony
• Punch in/out: Manual, auto
• Other function: Bounce, scrub/preview, A-B repeat, capture/swap, phrase loop

Mixer

• Fader: 14 (mono x8, stereo x4, master x1, rhythm x1)
• Level meter: Post-fader, pre-fader 5-segment
• Track parameter: Equlizer (3-band), effect send (Chorus/delay, reverb),
• panning (balance)
• Stereo linking: Tracks 1/2, 3/4, 5/6 7/8 selectable
• Scene: 100 scenes per project

Effect

• Algorithm: 9 (CLEAN,DISTORTION, ACO/BASS SIM, BASS, MIC, DUAL MIC, LINE, 8xCOMP EQ, MASTERING)
• Patch: 330 for insert, 60 for send/return
• Module: 7 for insert, 2 for send/return
• Tuner: Chiromatic, guitar, bass, open A/D/E/G, D modal

Rhythm

• Voice: 9 (Drum 8 + Bass 1)
• Sound source principle: 16bit, linear PCM
• Drum kit: 20
• Drum sound: 27 per kit(9 pad x 3 bank)
• Sampling capacity: Total 66 seconds per kit in mono (5.5MB) (Maximum sample is 22 seconds per pad)
• Bass program: 11
• Pad: 9 (velocity sensitive)
• Resolution: 48PPQN
• Beat: 1/4 - 8/4
• Rhythm pattern: 511 patterns per project
• Rhythm song: 10 songs per project
• Measure: 999 measures per song, 99 measures per pattern
• Note/event: Approx. 20000 notes per song
• Tempo: 40.0 - 250.0 BPM

General Specifications

• Hard disk drive: 3.5-inch, E-IDE type 80 GB
• CD-R drive: 5 inch bay type (CD-R/RW model)
• A/D conversion: 24-bit, 64-times oversampling
• D/A conversion: 24-bit, 128-times oversampling
• Sampling frequency: 44.1 kHz
• Signal processing: 24-bit
• Frequency response: 20Hz – 20kHz ±1 dB (10-kilohm load)
• S/N ratio: 93dB (IHF-A)
• Dynamic range: 97dB (IHF-A)
• THD+N: 0.02% (400-Hz, 10kilohm load)
• Display: 16-digit 2-line backlight LCD
• Input:
• XLR/standard phone combo jack x8 (Balanced operation): Input impedance 1 kilohm, pin 2hot (Unbalanced operation) Input impedance 50 kilohm
• Hi-Z selectable x2: Input impedance 1 megohm (Hi-Z switch ON) With phantom power supply x8
• Phantom power supply: 48V
• Input level: -50 dBm to +4 dBm continuously variable
• Master output: RCA phono jack (L/R), Output impedance 1 kilohm, Rated output level -10 dBm
• Headphones output: Standard stereo phone jack x2, 50 mW into 32-ohm load
• Sub output: Standard stereo phone jack 50 mW into 32-ohm load
• Digital output: S/P DIF, Optical (20-bit)
• MIDI: IN,OUT
• USB: USB2.0 High Speed Mass Strage Class operation, USB MIDI operation
• Control input: For FP02/FP01 or FS01
• Dimension: 482(W) x 328(D) x 84(H)mm
• Weight: 6.0 kg (CD-R/RW drive installed), 5.3 kg (CD-R/RW drive uninstalled)
• Power supply: DC12V, 3A (supplied AC adaptor AD-0011)
• Power consumption: 30 W (12V, 2.5A) typical
• Supplied accessory: Operation manual, AC adaptor/cable, CD-ROM, screws for CD-R/RW drive
• Optional accessory: Foot switch FS01, Expression pedal FP02, CD-R/RW drive CD-02 or our recommendation drive

Distribué par Mogar
