- Fabricant : Avante Audio
- Modèle : AS8
- Série : Achromic
- Catégorie : Systèmes sub + satellites sono
- Fiche créée le : 21/01/2019

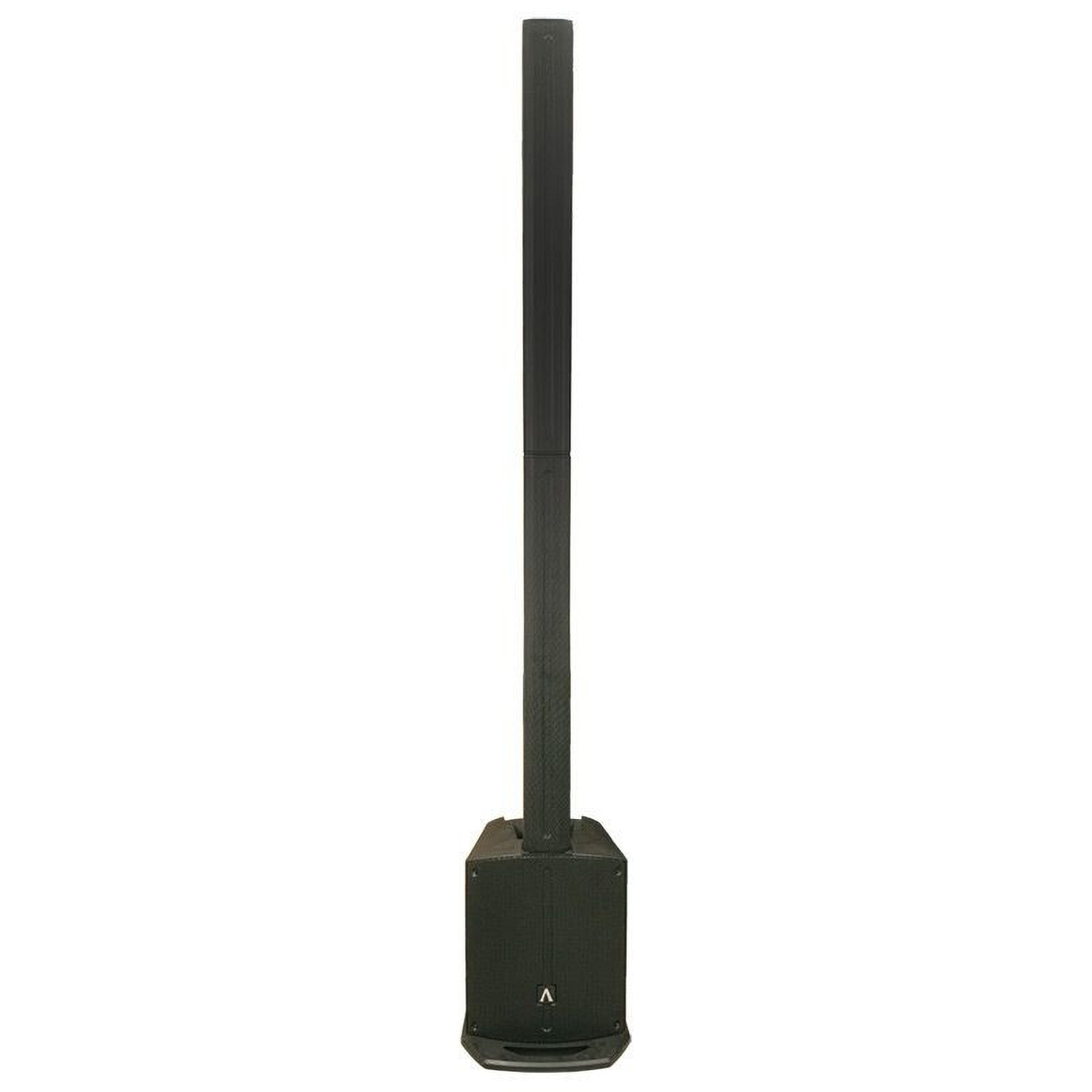

Système de sonorisation portable amplifié consistant en un subwoofer et deux colonnes satellites
SYSTEM INCLUDES:
- (1) 8-inch neodymium Subwoofer
- (1) Column with six 2-75-inch neodymium Speakers
- (1) Spacer
- (1) Carry bag for columns
AMPLIFIER:
- Inputs: Two XLR/TRS combo jacks, Stereo 1/4” inputs, Stereo 1/8” inputs, Bluetooth
- Outputs: XLR balanced line output
- Power output: RMS 120W(SUB) RMS, 400W peak, +120W(SAT) RMS, 400W peak
- Volume: Input Gain control per channel
- EQ: Main out 2 band EQ
- LEDs: Power/Clip indicator
- Power Input: 100-240V~50/60Hz switchable 250W
- Amplifier: Class D amplifier with switching power design
ACTIVE VENTED SUBWOOFER:
- Frequency Response: 55-200Hz
- Max Output SPL: 116dB (at max. amp output)
- Impedance: 4 Ohm
- Driver: 8-inch neodymium subwoofer, 1.5” voice coil, 28 oz. magnet
- Cabinet: PP plastic
- Grill: 1.0mm steel
- Dimensions: 13.8”x16.9”x16.3” / 350x430x413mm
- Weight: 28.6 lbs. / 13 kg.
PASSIVE FULL-RANGE SPEAKER COLUMN:
- Frequency Response: 180-20kHz
- Max. output SPL: 110dB
- Impedance: 4 Ohm
- Driver: 6x 2.75-inch neodymium drivers
- Cabinet: PP plastic
- Grill: 1.0mm steel
- Dimensions: 3.8”x3.8”x34.3” / 96x96x870mm (each column)
- Weight: 11 lbs. / 5 kg. (each column)

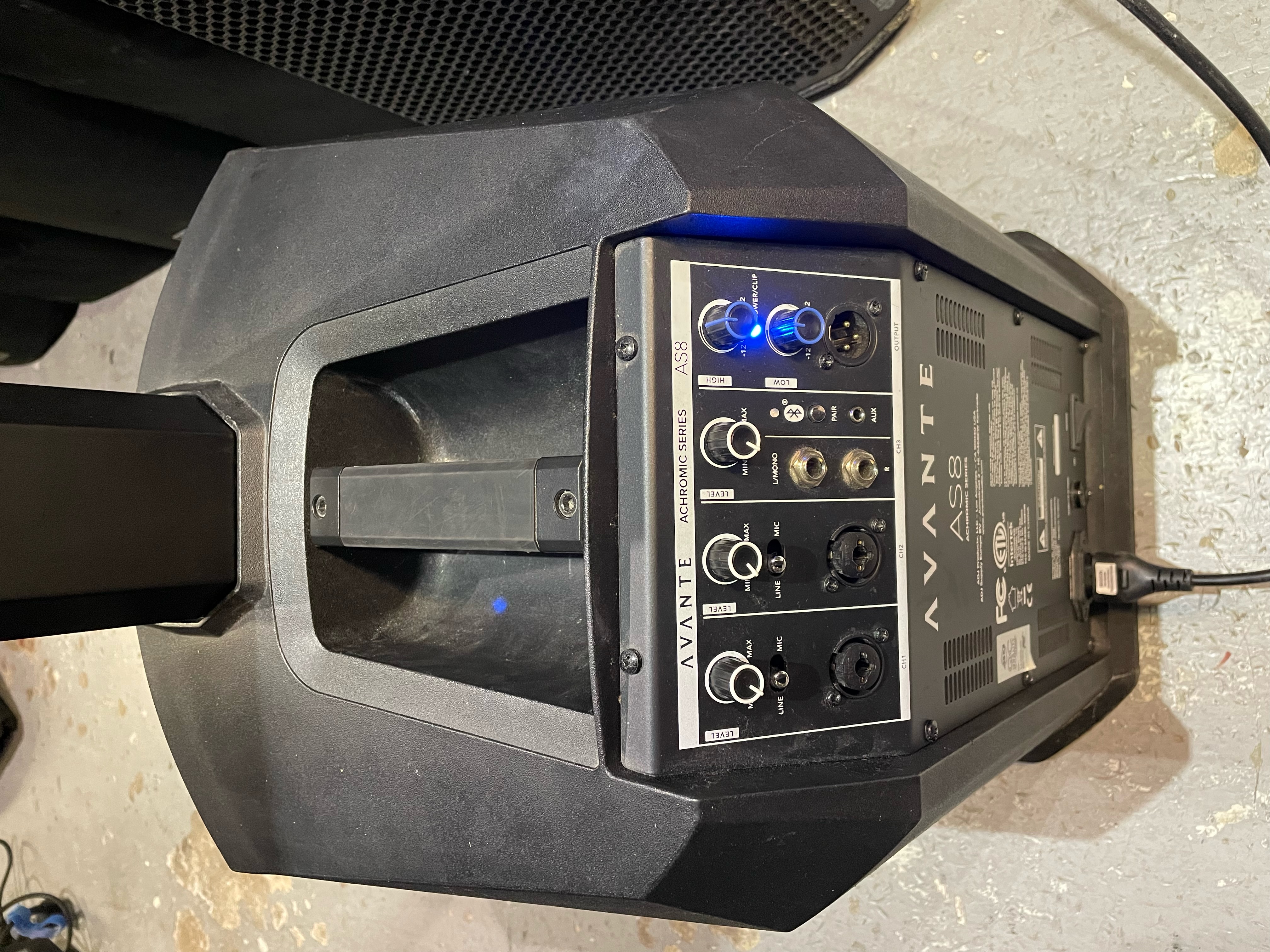

REAR PANEL:
- 4 input mixer with line out
- Mic/Line Input
- Guitar/Line Input
- 1/8” Aux Input
- Line Output
- Dual Band EQ
- Bluetooth Connection
EXTENDED POSITION:
- Dimensions: 13.8”x16.9”x79.1” / 350x430x2010mm
- Weight: 50.6 lbs. / 23 kg.
COMPACT POSITION:
- Dimensions: 13.8”x16.9”x47.6” / 350x430x1210mm
- Weight: 39.6 lbs. / 18 kg.
»
