Fiche technique
- Fabricant : Yorkville

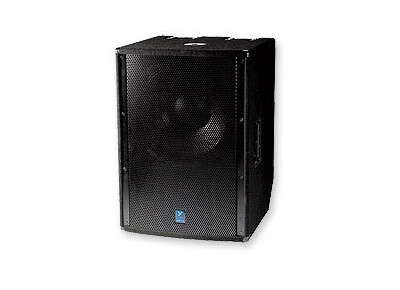

- Modèle : LS2100P
- Catégorie : Subwoofers amplifiés
- Autres dénominations : ls2100p, ls 2100p, ls2100 p
Specifications
| System Type | Rear Horn-Loaded Subwoofer |
| Active or Passive | Active |
| Program Power (Watts) | 2400 watts (3600 Watts Peak) |
| Max SPL (dB) | 142dB Peak (135dB Continuous) |
| Frequency Response (Hz +/- 3dB) | 32 - 200 |
| Driver Configuration | 21-inch Woofer w/ 6-inch Voice Coil |
| LF Protection | Thermal / Overcurrent / Clip |
| Power Cable | Detachable |
| Power Switch | Yes |
| Power Consumption (typ/max) | 800/1440VA (12A@60hz, 6A@50hz) |
| Inputs - 1/4" Jacks | 2 line/speaker level inputs, 2 link (in/out) |
| Inputs - XLR | 2 line inputs, 2 link (in/out) |
| Level Controls | Master |
| Other Controls / Features | Active Controls: Level Low Pass Filter Frequency Bass Boost Level |
| Corners | Metal |
| Feet | Rubber |
| Wheels | Rear tilt-back |
| Bar Handles | 6 (Side), 2 (Top) |
| Pole Mount Adapter (1 3/8"-3.5cm) | 1 (Top) |
| Enclosure Materials | 3/4 inch 7-ply Spruce |
| Grille | Perforated Metal |
| Covering / Finish | Black Ozite (Carpet) |
| Optional Covering / Finishes | Black Ultrathane Paint (LS2100PB) |
| Dimensions (DWH xbackW, inches) | 31 x 25.25 x 36 |
| Dimensions (DWH xbackW, cm) | 78.7 x 64.1 x 94.1 |
| Weight (lbs/kg) | 203 / 92.1 |
Distribué par Major Audio
»
