Annonces V218-S
Alerte nouvelle annonceNews
Images
Fiche technique

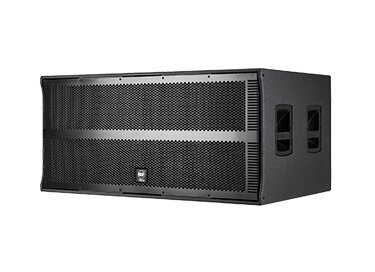

- Fabricant : RCF
- Modèle : V218-S
- Série : V-MAX
- Catégorie : Subwoofers passifs
- Fiche créée le : 24/01/2014
FEATURES
- High power, bass reflex subwoofer system
- 2 x 18" high power, 4" voice coil hypervented woofers
- 141 dB max SPL
- 3000 Watt AES
- Very high output, response down to 30 Hz
- Birch plywood cabinet
- Weather resistant, textured, polyurea finish
- Epoxy powder coated front grille
ACOUSTICAL SPECIFICATIONS
- Frequency Response -10 dB:30 Hz ÷ 250 Hz
- Max SPL @ 1m:141 dB
- System Sensitivity:99 dB
- Nominal Impedance:8 Ω
- Power Handling:3000 W
- Peak Power Handling:12000 W
- Recommended Amplifier:6000 W
TRANSDUCERS
- Woofer:2 x 18", 4" voice coil
- Nominal Impedance:8 Ω
- Input Power Rating:1500 W AES each W AES
INPUT SECTION
- Input connector:2 x SPEAKON NL4
CABINET
- Cabinet Material:15mm Birch Plywood
- Hardware:Pole mount ready
- Handles:4 side
- Grille:Custom perforated steel grille
- Colour:black
PHYSICAL SPECIFICATIONS
- Height:569 / 22.40 mm/inch
- Width:1200 / 47.24 mm/inch
- Depth:745 / 29.33 mm/inch
- Net Weight:78 / 172 kg/lbs
Source : http://www.rcf.it/en_US/homepage-usa/
Distribué par RCF France
»
Manuels et autres fichiers
Autres catégories dans Enceintes de sonorisation
Autres dénominations : v218 s, v218s, v 218 s, vmax 218 sub, vmax218, vmax218sub
