Fiche technique
- Fabricant : Orange
- Modèle : 4 Stroke 500
- Série : 4 Stroke
- Catégorie : Têtes d'amplis Basse
- Autres dénominations : 4stroke500, 4 stroke500, 4stroke 500
| FEATURES: | CLASS AB SOLID STATE BASS AMPLIFIER RACKMOUNTABLE HEAD | ACTIVE 4-BAND PARAMETRIC EQ SECTION | FOOTSWITCHABLE CLASS A COMPRESSION | BALANCED & LINE OUTPUTS | 2 X PARALLEL SPEAKON SPEAKER OUTPUTS |
|---|---|

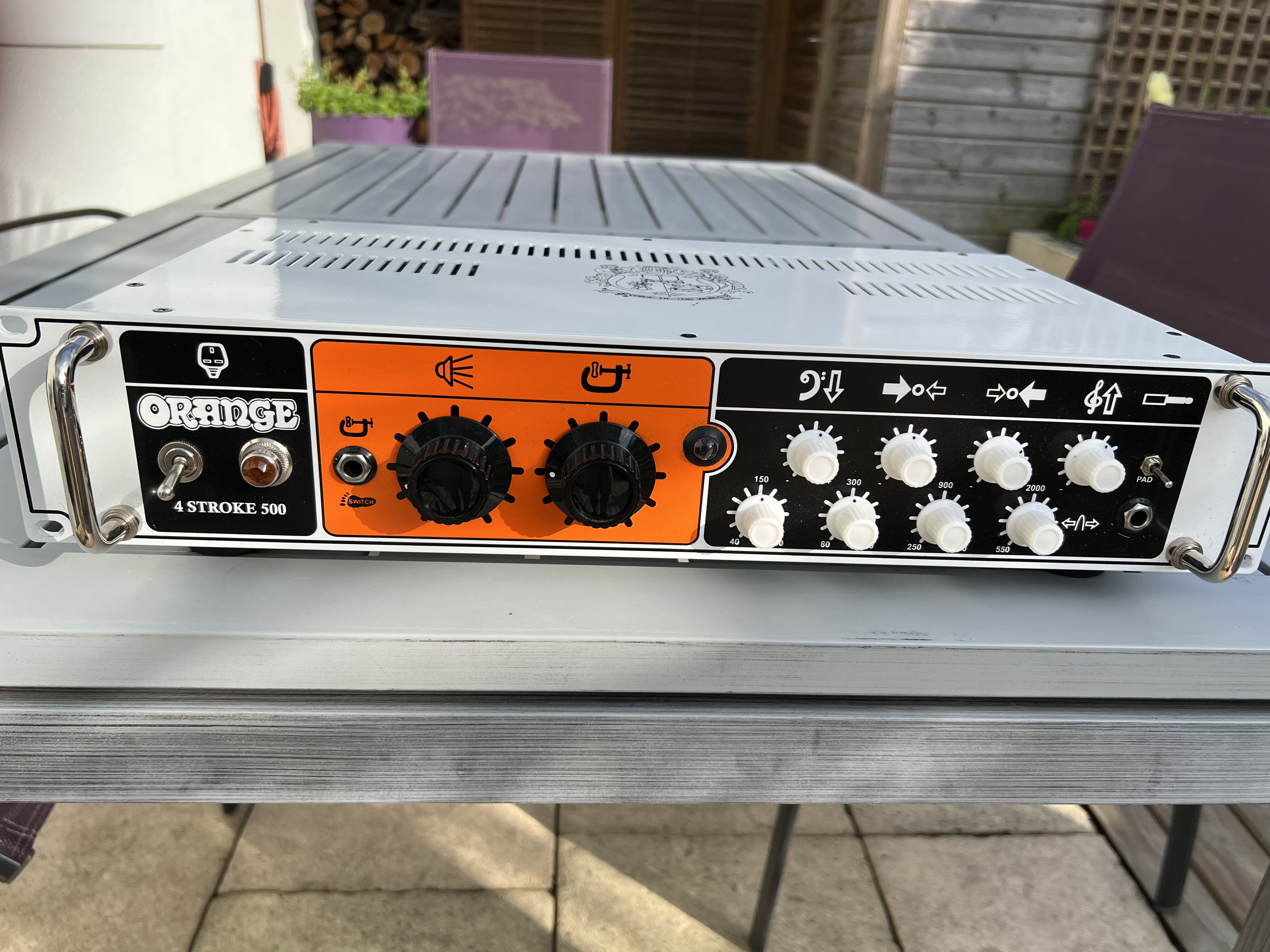

| FRONT PANEL (RIGHT TO LEFT): | INPUT [-6DB PAD] | TREBLE (550-5500HZ) | HIGH MID (250-2500HZ) | LOW MID (80-800HZ) | BASS (40-400HZ) | COMPRESSION LEVEL | VOLUME | FOOTSWITCH INPUT | POWER |

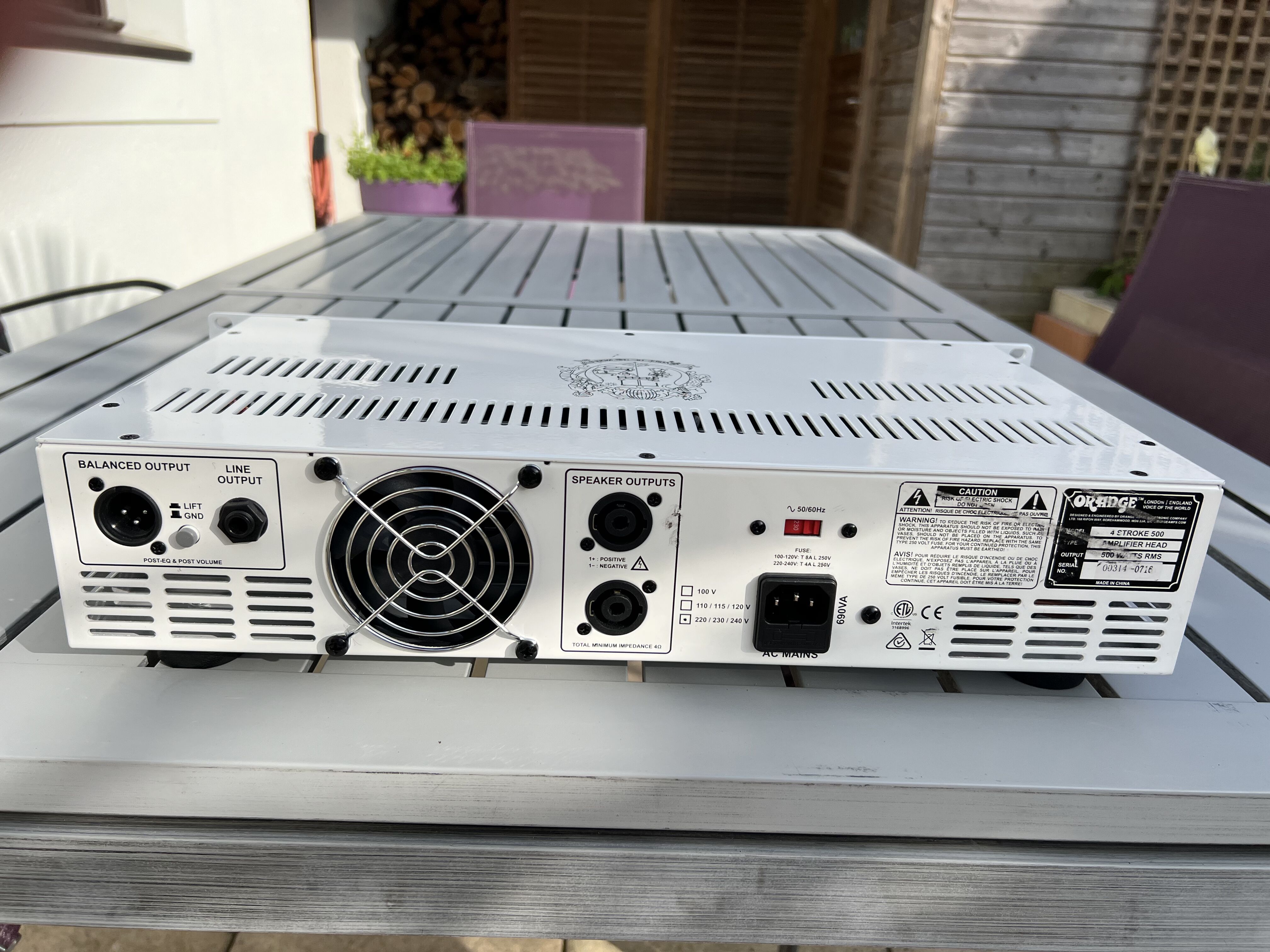

| REAR PANEL: | SPEAKER OUTPUTS | LINE OUT & BALANCED DI OUTPUT (POST-EQ AND VOLUME) |

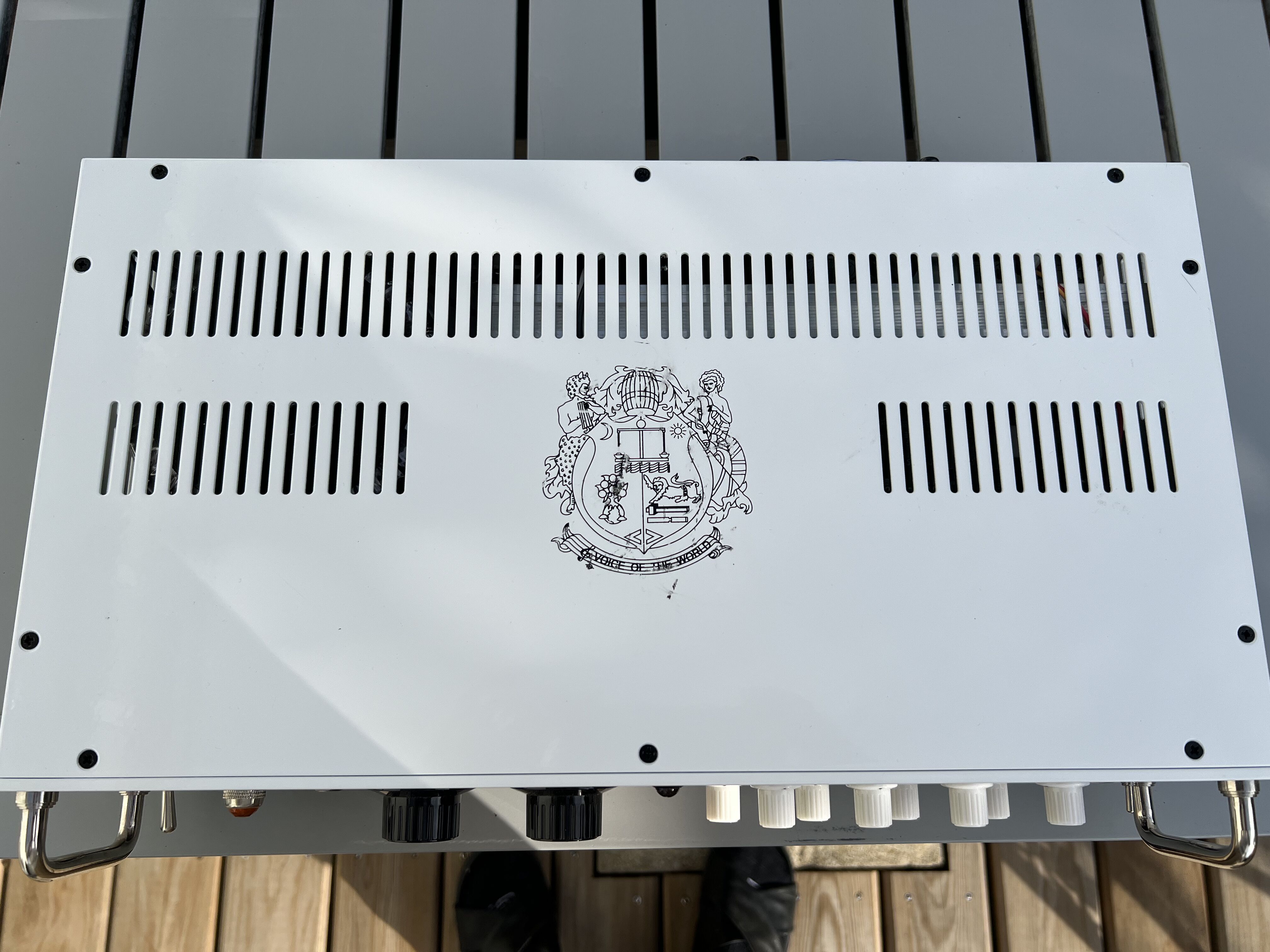

| FINISH: | 2U WHITE STEEL CHASSIS |
| SPEAKER OUTPUTS: | 2 X SPEAKON (PARALLEL). 4 OHM MINIMUM TOTAL LOAD. |
| RANGE OPTIONS: | 4 STROKE 300 (300W @ 4 OHMS)
4 STROKE 500 (500W @ 4 OHMS) |
| UNBOXED DIMENSIONS (W × H × D): | 48.2 × 10 × 26.5CM (18.97 × 3.93 × 10.43″) |
| UNBOXED WEIGHT: | 4 STROKE 300: 9.45KG (20.83 LB)
4 STROKE 500: 10.05KG (22.16 LB) |
Distribué par hightechdistri
»
