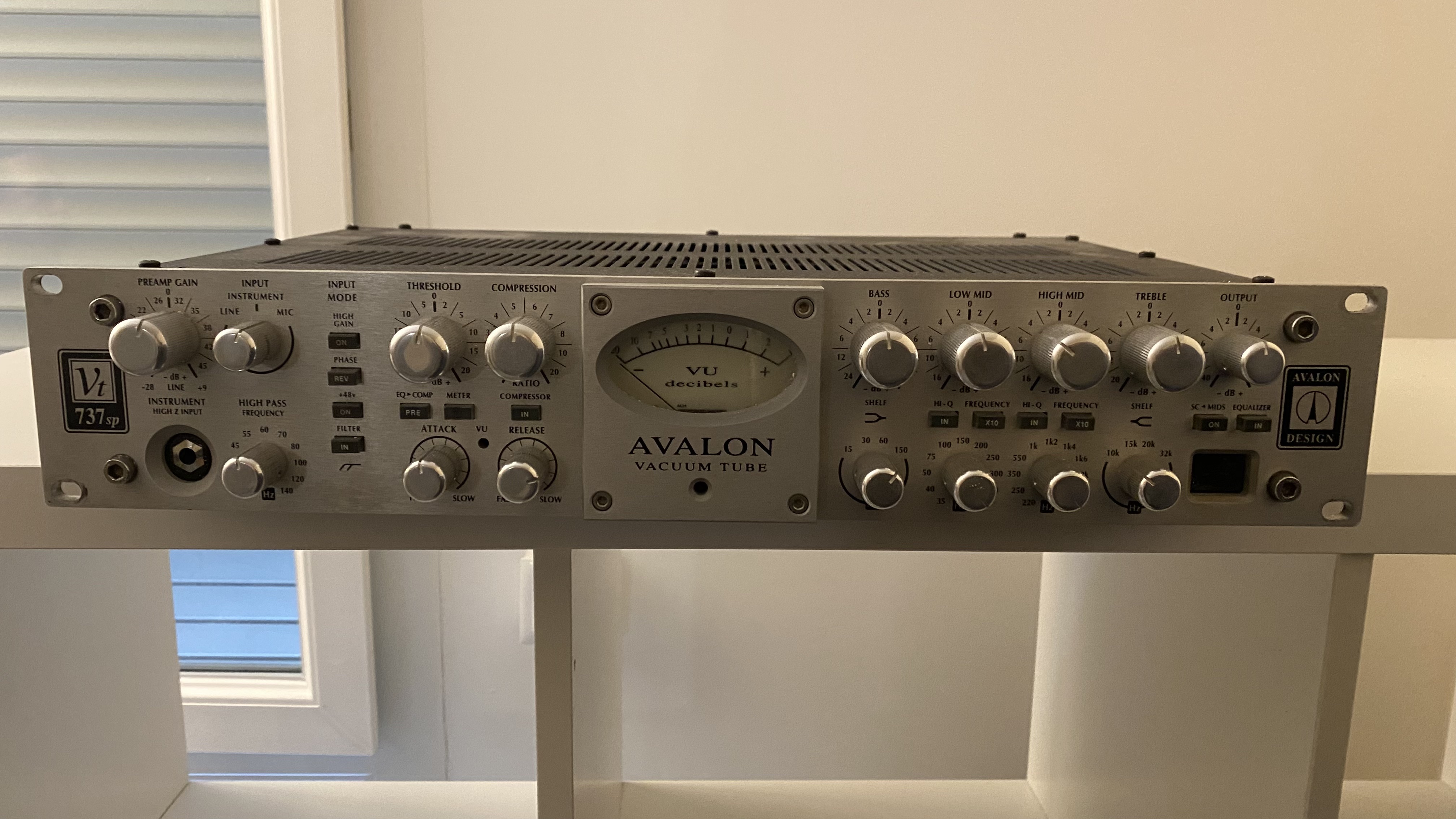

a vendre avalon 737 sp

Description

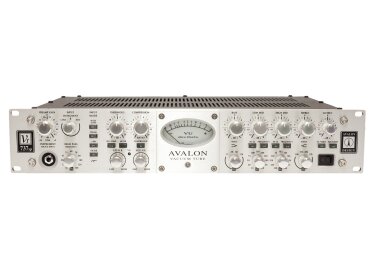

Fabricant : Avalon
Modèle : Vt-737sp
Catégorie : Tranches de console
Autres dénominations : vt737sp, vt 737 sp, vt737 sp
Circuit topology Four dual triode vacuum tubes (Sovtek 6922), high-voltage discrete Class A
Gain Range Microphone: Transformer balanced 850/2500 ohm, 0dB to +58dB Instrument: Unbalanced 1 meg ohm, 0dB to+30dB Line: Balanced Class A 20k ohms, -27dB to 28dB
Maximum input level and connector types Microphone26dB@25Hz, +30dB@1kHz balanced XLR Instrument+30dB unbalanced front panel jack socket
Line +36dB balanced XLR
Maximum output level +30dB balanced 600 ohms, DC coupled, discrete Class A
Output type and gain XLR connector, output trim gain -45dB to20dB
Noise 20kHz unweighted -92dB
Noise microphone EIN -116dB, 22Hz to 22kHz unweighted
Distortion THD, IMD 0.5%
Frequency response -/2.5dB 10Hz to 120kHz input filter included
Frequency response -3dB 1Hz to 200kHz line in-out
VU meter and gain reduction High quality illuminated OVU =+4dB and gain reduction to -20dB
High cut filter Variable 6dB per octave 30Hz to 140Hz
Compressor type Optical passive attenuator incorporating twin vacuum tubes and stereo link
Threshold - Ratio Threshold variable -30dB to +20dB, ratio-compression variable 1:1 to 20:1
Attack - Release Attack variable 2mS to 200mS, release variable 100mS to 5 seconds
Equalizer type Discrete Class A, variable active and switched passive design
Frequency bands (4) Treble - switched 10kHz, 15kHz, 20kHz, 32kHz, +/- 20dB range, shelf High mid - variable 200Hz to 2k8Hz and 2kHz to 28kHz, +/- 16dB range, hi-lo Q Low mid - variable 30Hz to 450Hz and 300Hz to 4k5Hz, +/- 16dB range, hi-lo Q Bass - switched 15Hz, 30Hz, 60Hz, 150Hz, +/- 24dB range, shelf
AC power Internal toroidal 100v to 240v, 50-60Hz selectable, 75 watts maximum
Dimensions 19 x 12 x 3.5 in (482 x 305 x 89mm)
Weight 22lbs (10kg)
Dimensions-shipping carton 21 x 18 x 8 in (533 x 457 x 203mm)
Weight-packed 26lbs (11.8kg)
Source : http://www.avalondesign.com/vt737sp.html

Distribué par Freevox
