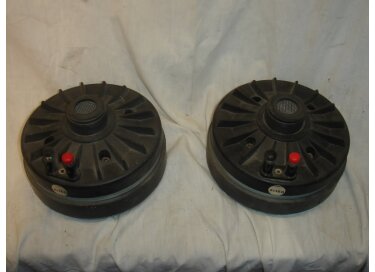

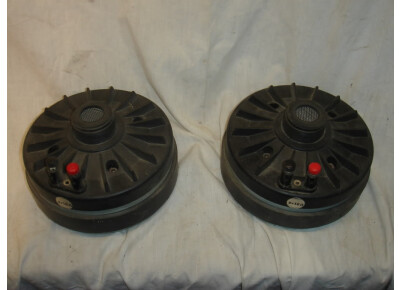

Beyma CP 140

Throat diameter

25 mm 1 in

Nominal impedance

8 ohm

Minimum impedance

5.2 ohm @ 4.5 kHz

Re

4.7 ohm

Power capacity

70 W AES above 1.5 kHz

Program power

140 W above 1.5 kHz

Sensitivity

107 dB 1 W @ 1 m   coupled to horn

Frequency range

800-20000 Hz

Recom. crossover frequency

1.2 kHz or higher   (12dB/oct min slope)

Voice coil diameter

44.3 mm 1.75 in

Flux density

2.2 T

BL factor

7.5 N/A

Diaphragm material

Polyester

External diameter

100 mm 4 in

Depth

80 mm 3.1 in

Mounting

Three M5 threaded holes. 120º apart on
  57 mm (2.24 in) diameter circle.
  Two M5 threaded holes. 180º apart on
  76.2 mm (3 in) diameter circle.
  Mounting hardware is supplied

Net weight

1.35 kg 2.97 lb

Total weight

1.5 kg 3.3 lb

Magnet

Neodymium
