Faital Pro HF100
Photos
1/1

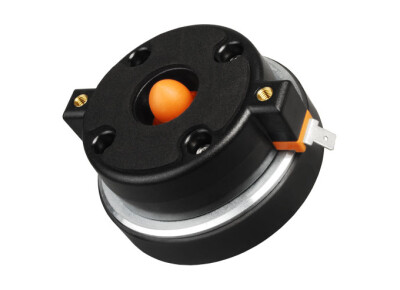

Faital Pro HF100

Compression / Tweeter de la marque Faital Pro

Écrire un avis ou Demander un avis

Acheter neuf Faital Pro HF100

  • SonoVente Pas de stock / NC 63,00 €

Annonces HF100

Alerte nouvelle annonce

Fiche technique

  • Fabricant : Faital Pro
  • Modèle : HF100
  • Catégorie : Compressions / Tweeters
  • Fiche créée le : 29/04/2016

Compression 1" - 30 W - 108 dB - 8 Ohm

Technical Parameters
Nominal Impedance 8 Ohm
Minimum Impedance 7 Ohm
AES Power Handling (1) 30 W
Maximum Power Handling (2) 60 W
Minimum Crossover Frequency (3) 2 kHz
Sensitivity (1W/1m) (4) 108 dB
Frequency Range 1.5÷20 kHz
Voice Coil Diameter 25 mm (0.98 in)
Winding Material Al
Former Material Kapton
Diaphragm Material Ketone Polymer
Diaphragm Shape Dome
Winding Depth 1.7 mm (0.07 in)
Magnetic Gap Depth 2 mm (0.08 in)
Flux Density 1.7 T
Magnet Ferrite Ring
Re 6 Ohm
Phase Plug Design Radial
Exit Angle (5) 9° Conical
NET Air Volume filled by HF Driver 0.25 dm^3 (0.009 ft^3)
Nominal Specifications
Throat Diameter 25.4 mm (1 in)
Overall Diameter 108 mm (4.02 in)
180° Mounting Holes Diameter (2xM6) 76 mm (2.99 in)
Depth 55 mm (2.17 in)
Net Weight 830 g (1.8 lb)
Shipping Box 147 x 130 x 82 mm
(5.8 x 5.1 x 3.2 in)
Shipping Weight 862 g (1.90 lb)


Part Number (P/N)
Faston Terminals - 8 Ohm Version 00254029



Notes:
Driver mounted on a 1" 50° x 40° Horn
(1) 2 Hours Test According to AES 2-1984 Rev. 2003
(2) Maximum power is defined as 3dB greater than nominal power.
(3) 12 dB/oct or higher slope high-pass filter
(4) Averaged within the frequency range
(5) The phase plug is recessed from the driver's exit which is at the end of a conical adaptation horn.



Distribué par Son Lumiere Concept SARL

»
