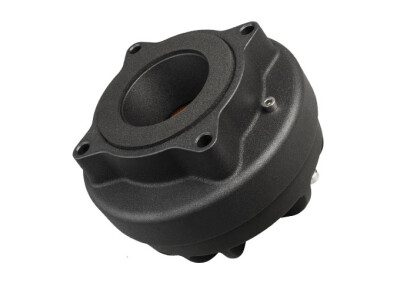

Faital Pro HF204

Name: HF204
Brand: Faital Pro
SKU: 251943

Ajouter ce produit à

Déposer un avis

Où acheter HF204 ?

Moins

Meilleur prix neuf

Voir plus d’offres

Fiche technique

Créée le 29/04/2016

Compression 1.4" - 90 W - 110 dB - 8 Ohm

Technical Parameters

Nominal Impedance	8 Ohm
Minimum Impedance	7.2 Ohm
AES Power above 0.9 kHz (1)	90 W
AES Power above 0.65 kHz	50 W
Maximum Power above 0.9 kHz (2)	180 W
Maximum Power above 0.65 kHz	100 W
Minimum Crossover Frequency (3)	0.9 kHz
Sensitivity (1W/1m) (4)	110 dB
Frequency Range	0.5÷18 kHz
Voice Coil Diameter	74 mm (2.91 in)
Winding Material	Al
Former Material	Kapton
Diaphragm Material	Titanium
Diaphragm Shape	Dome
Winding Depth	2.35 mm (0.10 in)
Magnetic Gap Depth	2.80 mm (0.11 in)
Flux Density	1.95 T
Magnet	Neodymium Ring
Re	5.6 Ohm
Phase Plug Design	Annular
NET Air Volume filled by HF Driver	0.7 dm^3 (0.025 ft^3)

Nominal Specifications
