Fiche technique
- Fabricant : RCF

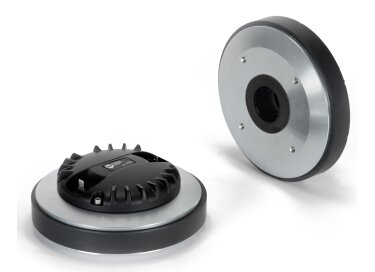

- Modèle : CD650
- Catégorie : Compressions / Tweeters
- Autres dénominations : cd 650
Moteur à compression 1,4 pouces
- 2.5-inch Diaphragm, 1.4-inch Exit Throat / Pure Titanium Compression Driver
- 180W continuous program power handling
- Frequency range: 700Hz - 20kHz
- 3-slot optimized geometry phase plug
- Titanium diaphragm
- Copper inductance ring for extended response
- Vented, damped, low distortion suspension system
- Ceramic magnet assembly
General Specifications
- Exit Throat Diameter: 35.5 / 1.4 mm/inch
- Rated Impedance: 8 Ω
- Power handling capacity continuous program1: 180 W AES
- Power handling capacity AES2: 90 W AES
- Sensitivity: 109 dB
- Frequency Range: 700 Hz ÷ 20000 Hz
- Diaphragm Material: Pure titanium
- Suspension Material: Polyester
- Suspension Design: Flat
- Minimum Impedance: (at 2.5kHz) 7.5 Ω
- Voice Coil Diameter: 63.7 / 2.5 mm/inch
- Voice Coil Material: Edgewound aluminium
- Voice Coil Former Design: Straight kapton
- Number of layers: 1 - outside
- BL Factor: 9.8 T · m
- Flux Density: 1.9 T
- Phase Plug Design: 3 slots
- Phase Plug Material: Aluminium
- Magnetics: Ceramic
- Voice Coil Demodulation: Copper ring
Mounting information
- Overall diameter: 165 / 6.5 mm/inch
- Overall height: 56 / 2.2 mm/inch
- Mounting 4 × 5 mm holes at 90°: 101.6 / 4.0 mm/inch
- Net weight: 4.3 / 9.5 kg/lbs
Shipping information
- Shipping weight: 4.7 / 10.3 kg/lbs
Source : http://www.rcf.it/fr_FR/products/precision-transducers/compression-drivers/cd650
Distribué par RCF France
»
