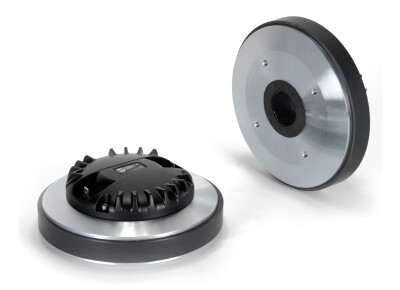

Acheter neuf RCF CD850 1.4
- Music Store En stock / Livré en 72h 309,00 €
Annonces CD850 1.4
Alerte nouvelle annonceFiche technique
- Fabricant : RCF
- Modèle : CD850 1.4
- Catégorie : Compressions / Tweeters
- Fiche créée le : 24/02/2016
Moteur à compression 1,4 pouces
- 3-inch Diaphragm, 1.4-inch Exit Throat / Pure Titanium Compression Driver
- 220W continuous program power handling
- Frequency range: 500Hz - 20kHz
- 3-slot optimized geometry phase plug
- Ceramic Magnet Assembly
- Copper inductance ring for extended response
- Vented, damped, low distortion suspension system
General Specifications
- Exit Throat Diameter: 35.5 / 1.4 mm/inch
- Rated Impedance: 8 Ω
- Power handling capacity continuous program1: 220 W AES
- Power handling capacity AES2: 110 W AES
- Sensitivity: 109 dB
- Frequency Range: 500 Hz ÷ 20000 Hz
- Diaphragm Material: Pure titanium
- Suspension Material: Polyester
- Suspension Design: Flat
- Minimum Impedance: (at 3.5kHz) 8.5 Ω
- Voice Coil Diameter: 74.4 / 3.0 mm/inch
- Voice Coil Material: Edgewound aluminium
- Voice Coil Former Design: Straight kapton
- Number of layers: 1 - outside
- BL Factor: 12.3 T · m
- Flux Density: 1.9 T
- Phase Plug Design: 3 slots
- Phase Plug Material: Composite
- Magnetics: Ceramic
- Voice Coil Demodulation: Copper ring
Mounting information
- Overall diameter: 180 / 7.1 mm/inch
- Overall height: 62 / 2.4 mm/inch
- Mounting 4 × 5 mm holes at 90°: 101.6 / 4.0 mm/inch
- Net weight: 5 / 11 kg/lbs
Shipping information
- Shipping weight: 5.5 / 12.1 kg/lbs
Source : http://www.rcf.it/fr_FR/products/precision-transducers/compression-drivers/cd850-1.4
Distribué par RCF France
»
