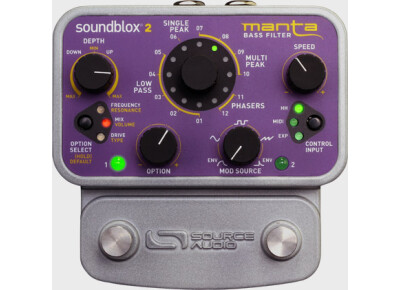

Source Audio Soundblox 2 Manta Bass Filter

General

• Model Number: SA223
• Bypass: Analog Buffered or Relay True Bypass
• Number of Presets: 2
• Controls:
  • Depth: controls the depth of the filter sweep
  • Option: Adjusts the parameter selected by the OPTION SELECT button
  • Mod Source: Selects between the envelopes, sine wave LFO, square wave LFO, and sawtooth wave LFO
  • Speed: Adjusts the attack and decay rate of the envelopes, the rate of the LFO (Low Frequency Oscillator), or the ”Smoothing” of the Hot Hand.
  • Effects: 5 Low Pass, 1 Single Peak, 4 Multi Peak and 2 Phasers
• Buttons: Option Select (Frequency / Mix / Drive or Resonance / Volume / Type), Control Input (HH / Midi / EXP)
•  Footswitches:
  • Left: Preset 1
  • Right: Preset 2
•  Connectors:
  • Inputs:
    • Guitar In
    • Multi Fonction In
  • Outputs:
    • Guitar Out
    • Multi Fonction Out
  • Power: 9V DC

Technical Data

• Maximum input level: 2.0 Vrms (+6 dBV)
• Input impedance: 1 MOhm
• Output impedance: 1 kOhm
• 115dB DNR audio path
• 24-bit audio conversion
• 56-bit digital data path
• Power: 9V DC (negative center)
• Current Draw: 140 mA (180 mA max with Hot Hand Wireless Adapter)
• Dimensions (LxWxH): 4.5 x 4.5 x 2.25 inch
• Weight: 1.0 lbs
