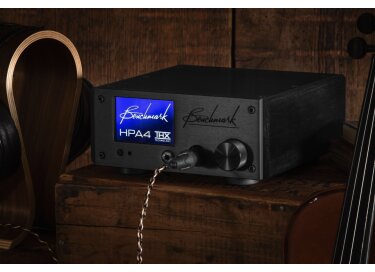

Benchmark Media Systems HPA4

(using balanced inputs at +24 dBu)

THX-888™Headphone Output:

• THD < -125 dB (0.00006%)
• SNR > 131 dB, unweighted, 20-20 kHz
• SNR > 135 dB, A-weighted
• Frequency Response - 0.003 dB at 10 Hz, -0.001 dB at 20 kHz
• - 3 dB Bandwidth exceeds 0.1 Hz to 500 kHz
• Output Impedance, near 0 Ohms
• Output Noise < 2.45 uV at Unity Gain, 20-20 kHz
• Maximum Output Power, 6 Watts into 16 Ohms
• Maximum Output Current, 1.5 A
• Maximum Output Voltage, 11.5 Vrms into 300 Ohms
• Crosstalk < -133 dB @ 1 kHz, -115 dB @ 10 kHz (XLR4)

Balanced Line Outputs:

• THD < -125 dB (0.00006%)
• SNR > 135 dB, unweighted, 20-20 kHz
• SNR > 137 dB, A-weighted
• Frequency Response - 0.003 dB at 10 Hz, -0.001 dB at 20 kHz
• - 3 dB Bandwidth exceeds 0.1 Hz to 500 kHz
• Output Impedance 60 Ohms
• Output Noise < 1.9 uV at Unity Gain, 20-20 kHz
• Maximum Input and Output Voltage, 20 Vrms (+28 dBu)
• Crosstalk < -133 dB @ 1 kHz, -116 dB @ 10 kHz

Dimensions:

21,97 cm  x 9,85 cm x 21,15 cm avec pieds

21,97 cm  x 8,81 cm x 21,15 cm sans pieds

Poids

3,63 kgs

Power:

• 18W Typical Input Power
• 35W Maximum Input power
• 0.33 W Standby Power (when off)
• Internal Universal Power Supply
