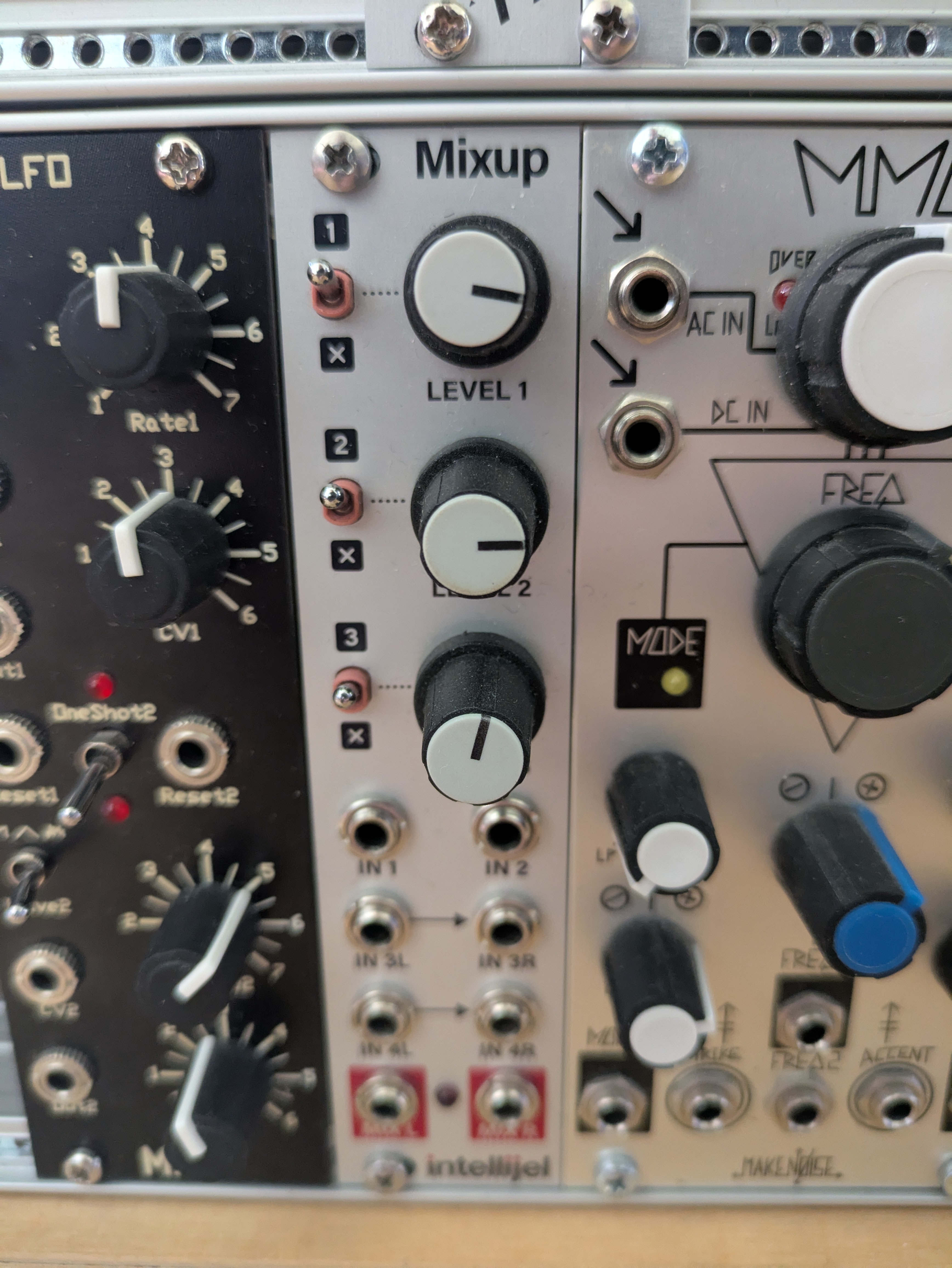

Intellijel Designs Mixup

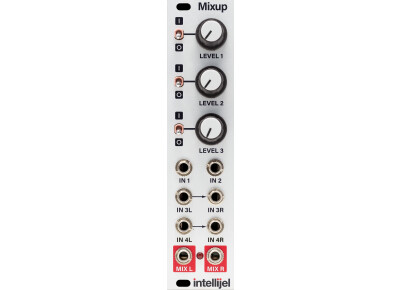

Mixup is a versatile, expandable audio mixer for eurorack format. It has eight inputs (6 on the front panel) and two outputs. Inputs 1 and 2 are single-channel mono inputs, each with its own mute switch and level control; Input 3 is a dual-channel stereo input with a shared mute and level control; and input 4 is an auxiliary unity-gain, non-mutable stereo input.

• Mixes up to eight channels to a stereo output.
• Mute switches and level knobs for channels 1 to 3.
• Chain-able with other Mixup modules.

Using bus connectors on the back panel, you can chain multiple Mixups together in series, giving you the ability to mix together even more inputs, or to create sub-mixes for routing around larger systems.

Because Mixup is designed specifically for audio (and not for CV mixing), it uses AC-coupled circuitry (which reduces the potential for ‘pops’ when muting and unmuting audio), and it uses audio-grade, logarithmic attenuators for a smooth, even response across the entire volume range.

Width : 6HP

Depth : 29mm

Power : 15mA @ 12V / 16mA @ -12V
