Fiche technique
- Fabricant : Ferrofish
- Modèle : Pulse8 AE
- Catégorie : Convertisseurs A/N N/A
- Fiche créée le : 01/01/2025

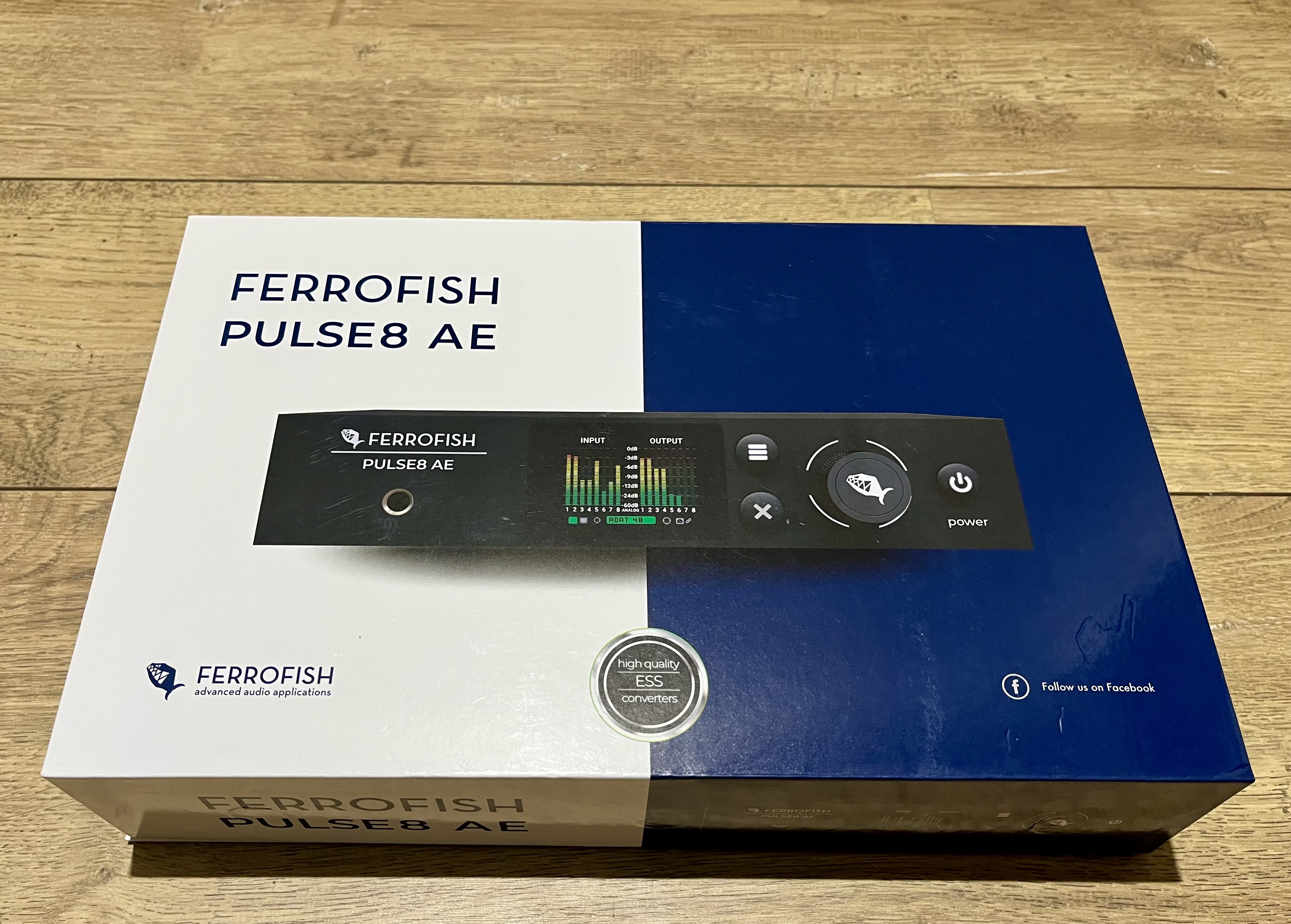

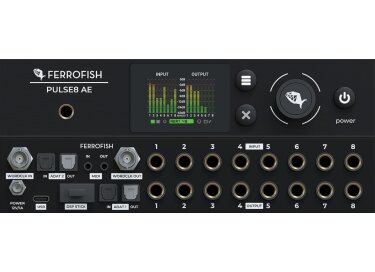

Pulse8 AE compact AD/DA converter
https://www.ferrofish.com/portfolio/pulse8-ae-compact-ad-da-converter/
Essential Connectivity, Exceptional Quality
The Ferrofish Pulse8 AE is a versatile and compact AD/DA converter designed for seamless integration into studio or live setups. With 8 high-quality balanced analog inputs and outputs, it ensures precise and clean signal conversion.
The Pulse8 AE offers full visual control via its vibrant front-panel display, simplifying real-time monitoring and configuration. Built to accommodate professional workflows, its robust clocking options and compatibility with standard studio connections make it an essential tool for engineers seeking reliable performance in a flexible, space-saving form factor.
Developed on the same premium conversion technology as its bigger sibling, this compact powerhouse delivers 8×8 balanced analog I/O alongside comprehensive ADAT connectivity up to 192kHz.
With its crystal-clear display and intuitive controls, the Pulse8 AE brings studio-grade conversion and routing capabilities to any professional workflow, from home studios to live setups. Every detail, from the high-stability clock to the premium ESS converters, ensures uncompromising audio quality in a versatile, space-efficient design.
Converter info:
analog outputs: SNR 120dB (typ.)
THD+N -115dB (1kHz, 48kHz SR, a-weighted, typ.)
analog inputs: SNR 112dB (typ.)
THD+N -108dB (1kHz, 48kHz SR, a-weighted, typ.)
DSP
– Expandable via optional DSP stick
PLL (Phase-Locked Loop)
– Digitally controlled PLL with active jitter reduction
Internal Wordclock
– 125 MHz oscillator with high precision
– Initial accuracy: ±1.5 ppm
– Drift over the temperature range: ±2.5 ppm
– Aging: ±1 ppm
Fuse
– Polyfuse, internal, self-resetting
Power Adapter
– 12 V, 3 A (or 12 V, 1 A)
– Positive pin
– Included in the package
Power Consumption
– Nominal: 12 VA
– Standby: Below 1 VA
Operating Temperature Range
– +5 °C to +45 °C
Humidity
– Maximum: <75 %, non-condensing
Weight
– 1 kg
Dimensions
– Size: 13.5 cm (D) x 22 cm (W) x 4.4 cm (H) (1U)
(Dimensions exclude knobs and connectors)
Analog I/O:
– 8 balanced TRS inputs (¼-inch)
– 8 balanced TRS outputs (¼-inch)
ADAT Connectivity:
– 2 ADAT input ports
– 2 ADAT output ports
– Supports SMUX for higher sample rates:
up to 192kHz with 4×4 ADAT channels via SMUX/4,
up to 96kHz with 8×8 ADAT channels via SMUX/2,
or up to 48kHz with 16×16 ADAT channels.
Clocking:
– Word Clock input and output (BNC connectors)
– Internal clock with high stability or external sync via ADAT or Word Clock
Signal Monitoring:
– High-resolution front display for signal level monitoring (both input and output)
– Clear visual feedback with multi-colored level meters
Controls:
– Front-panel control knob and buttons for quick navigation and configuration
Connectivity:
– USB-C for remote configuration using Ferrofish RemoteFish software
– MIDI input/output for firmware updates or potential future features
Power:
– External 12V/1A power supply
Form Factor:
– Compact design, suitable for rack-mounted or desktop use
Headphone Output
– 6.3mm jack output
– Amplification power adjustable in four stages
– Digital volume control with 1 dB resolution
– Dedicated monitoring path via a separate ESS DAC
Power Supply
– Voltage: 12 V at a maximum of 1 A
– Connector: 2.54 mm barrel jack with locking screw
