C2 Dual/Stereo Compressor, Compresseur de studio de la marque Smart Research.


2 avis d'utilisateurs
Prix public : 2 514 € TTC
Comparateur de prix
Petites annonces

Fiche technique Smart Research C2 Dual/Stereo Compressor

  • Fabricant : Smart Research
  • Modèle : C2 Dual/Stereo Compressor
  • Catégorie : Compresseurs de studio
  • Fiche créée le : 22/01/2003



The C2 compressor houses two independant mono compressors, or in STEREO mode, the left-hand controls operate both audio channels, with the right-hand controls not used, giving true Stereo operation. The C2M version has one set of controls and two audio channels for Stereo use, whilst the C2R is a dual channel remote expander for building up to 8 channel systems controlled from one C2M or C2.

The characteristic sound of this unit arises mostly from the fast response at the onset of compression, which when delayed to occur around the mid range attack settings (after 0.3 to 3 milliseconds) results in a window through which transients can still pass. When used accross a mix, or with any dynamic programme, this has the effect of adding 'punch', as the sidechain 'breathes' around these transients, while still controlling overall levels. CRUSH mode has been developed as an extension of this 'musicality', adding to and accentuating the factors involved in producing the character of the unit. CRUSH may sound surprising to those interested in more gentle applications, being capable of exaggerated compression effects, but in conjunction with the fast limit settings also introduced with this unit, it allows the C2 to be used for a much wider range of applications than the C1.

Operation:

  • Fast attack and limit settings for protective limiting.
  • Crush mode gives f.e.t 'overcompression' with tailored frequency response, and higher distortion, for 'huge' dynamic effects.
  • External sidechain inputs, (for ducking etc.)
  • Power fail bypass for broadcast or live sound.
  • Ratios 1.5:1, 2:1, 3:1, 4:1, 10:1 and Limit.
  • Attack 0, 0.1, 0.3, 1, 3, 10, and 30 m/sec.
  • Release 0.1, 0.3, 0.6, 1.2, and 2.4 seconds.

Options:

  • External fader level control input, (to order) (stereo mastering etc).
  • Extra dual channel slave units, for multichannel applications, (film / surround formats etc.).
  • Sidechain High Pass filter cables:
Reduces sensitivity to low frequency compression. The C2 input is split through 150Hz -6dB/octave High Pass filter to feed the External Sidechain input. The C2 operates as normal, untill the 'External Sidechain' switches selected. (External signals can still be connected if required, with or without the filters)

Circuitry:

  • New generation of Voltage Controlled Amplifiers.
  • High slew rate amplifiers, with hybrid f.e.t/ transistor inputs (Analog Devices).
  • High current push-pull transistor outputs.
  • Total symmetry throughout signal path.
  • No electrolytic capacitors used in main signal path.
  • All inputs and outputs balanced.

C2 Family Specifications:



Power:  100v-240v AC selectable, 30 watts.
Noise floor:  Below -104 dBm (flat 20Hz-20Khz).
Distortion:  Below 0.005% (1K/+4 THD 20Hz-20Khz)
Frq. Response:  Within 1/2dB from 20Hz to 100Khz.
Depth in rack:  258mm.
Main input:  Balanced, impedance 1K8 per leg.
Sidechain i/p:  Balanced, impedance 10K per leg.
Output:  Discrete transistor. Above +26dBm into 600 ohm load.
Threshold:  Adjustable -20 to +20dBm.
Make-up gain:  Adjustable 0 to +20dBm.



In a normal C2 unit, when in 'Stereo' mode, the left channel front panel controls become the masters for both the left and right audio paths, and the right hand controls become inactive. Both audio paths are 'sensed', the result processed, and then acted on equally to eliminate image shift (so a 'peak' on either channel results in the compression of both). By extension of this method, in a multichannel system, the master set of controls can be interlinked to sense and control any number of audio channels where image shift would otherwise be a problem. When 'stereo'or 'left master' mode is selected, the left hand front panel controls become the masters for all channels in the system.

A multichannel system comprises a master C2 or C2M unit, to which is added one additional remote controlled 1RU audio rack per pair of extra channels needed. A four channel system would therefore need one master C2 (or C2M), and one C2R (remote C2). The system can be extended as needed, for more or less channels, or the additional channels unplugged and the master unit used on its own functioning as a normal unit (the only difference being that the 'sidechain' XLR connectors on the rear panel are changed to multipin types for additional control lines to and from the C2R chain). As an example for film mix formats this can be used to build a system with three interlinked channels for L-C-R to avoid image shifting, with suround L-R handled by a second pair of channels. Sub bass can be either processed separately or combined with the surround channels.

This approach has been adopted for two reasons: first as the most adaptable in allowing for different choices of mix formats and the ability for additional C2R channel capacity to 'float' between control rooms or be purchased as needed, and second because of being able to offer the C2R unit at a more reasonable sale price than a complete unit. In allowing for the above configuration, we have also provided for further customisation. The master C2 unit has an external fader input, and we would be happy to discuss any further modifications required.

»

Avis utilisateurs Smart Research C2 Dual/Stereo Compressor

Note moyenne :4.0( 4/5 sur 2 avis )
 1 avis50 %
 1 avis50 %
Cible :
Dave Artside29/08/2018

L'avis de Dave Artside"Parfait"

Smart Research C2 Dual/Stereo Compressor
Après de multiple essais de compresseur de studio de niveau pro, j'ai pu essayé celui ci en studio pro et j'ai eu le coup de foudre ! Très transparent; n'altère pas le son, et fait le travail de manière inespéré sur tous les instruments et voix !

Je n'en ai jamais utilisé de meilleur en 30 ans de home studio et studio !

Son seul défaut est qu'il n'est pas à la portée de toutes les bourses.
»
Dealer31/05/2016

L'avis de Dealer"utile, efficace"

Smart Research C2 Dual/Stereo Compressor
C'est une machine de studio pro, bien finie.
Circuits et aspect très proches de SSL, fabrication solide, petites séries faites en GB, machine fiable
Le son n'est pas typé, il est propre, ca fait le boulot, on peut bien lui rentrer dedans.
A comparer avec les compresseurs SSL originaux et TK Audio, Vintage Design qui ont la fonction sidechain intégrée pour éviter de pomper sur le contenu grave.
»

News Smart Research C2 Dual/Stereo Compressor

Le compresseur C2 de Smart Research reçoit un nouveau contrôle

Le compresseur C2 de Smart Research reçoit un nouveau contrôle

3 Publiée le 04/07/19
La version dual/stéréo du compresseur conçu par Alan Smart, le papa du compresseur de bus de la SSL G-Master, va recevoir une nouvelle amélioration.

Images Smart Research C2 Dual/Stereo Compressor

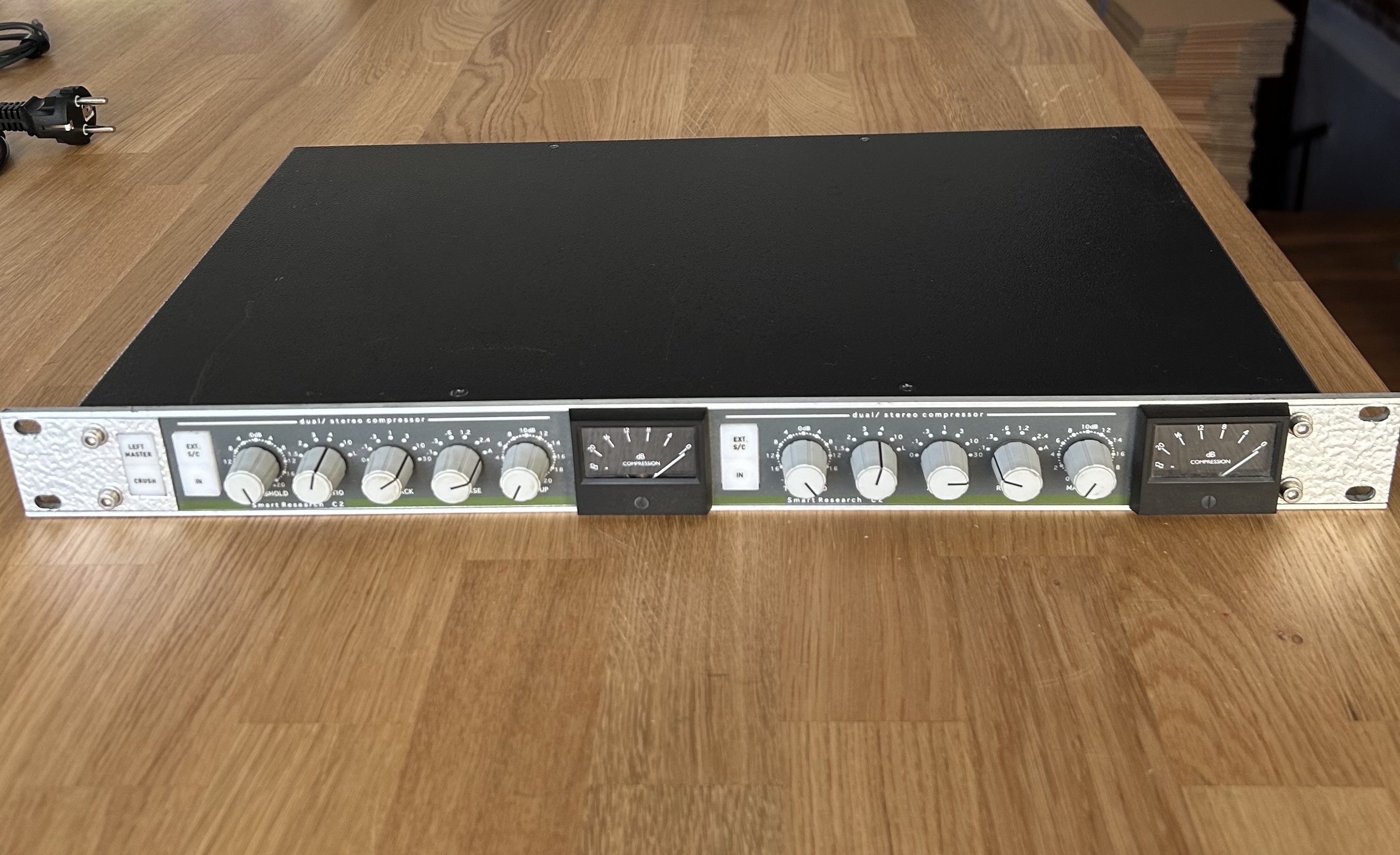

  • Smart Research C2 Dual/Stereo Compressor
