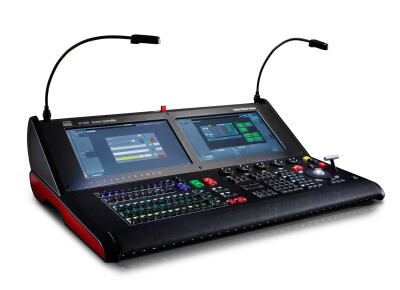

Barco EC-200

• Fabricant : Barco
• Modèle : EC-200
• Catégorie : Consoles dédiées à l'éclairage automatique
• Fiche créée le : 08/02/2016

standalone lighting controller featuring a Linux-based operating system and a built-in Central Processing Unit (CPU)

• Robust Linux version of EventMaster Toolset - same user interface used on Mac and PC
• Onboard PC running Linux to support a purpose-built version of Event Master toolset, enabling stand-alone usage
• Full control over the EventMaster Series switchers
• Simultaneous connection of multiple controllers, GUI interfaces, and processors supported on same network. (Redundant backups of control)
• 2 internal 15.6-inch wide screen full HD (1,920x1,080) touchscreens with 10 point multi touch
• 2 external monitors or touchscreens supported*
• High-resolution T-Bar for manual transitions
• 36 user-assignable buttons with customizable LCD labels
• Dedicated Background layer button
• 8 dedicated Layer selection buttons with multi-page functionality (shift pages for destinations with 9 or more layers)
• 12 user-definable Destination buttons with multi-page functionality (easily supports all the destinations available in future releases)
• Dedicated buttons for transition, live switching, modifying program, transitions, etc.
• 5 rotary encoders with wheels for ergonomic pip control and rapid placement of resources
• 12 LCD Contextual Display Buttons to support the Syntax Programmer
• Tri Axis backlit trackball (based on function), with a very smooth rotary encoder for the third axis and 4 buttons for cursor and position control
• 2 separate gigabit Ethernet network interface connections, one for Primary system control, and one for supplemental network control (additional IP address range and mode)
• Internal Solid State Hard drive
• 5 USB ports for additional accessories such as external touchscreens, mouse, keyboard, thumbdrive, etc.
• Script lights, feedback LEDs, and integrated work lights all dimmable
• Dust cover included
• Custom road case included

* Note: The EC-200 DVI-D monitor connections do not support analog output. Digital displays or digital to analog converters are required.

• Controls multiple EventMaster Series systems, including E2 and S3-4K
• Allows for an external control system to interact over a separate network interface
• Two additional DVI outputs for monitors to increase workspace, or add on up to 2 EC-50 for ultimate expansion
• Auto-ranging mains input (90-250VAC)
• External pointing device and Keyboards supported over USB
• 244.34 x 901.19 x 575.36 mm / 9.62 x 35.49 x 22.65 inches
• 20.41 kg (45 lbs)
