Fiche technique
- Fabricant : ARX

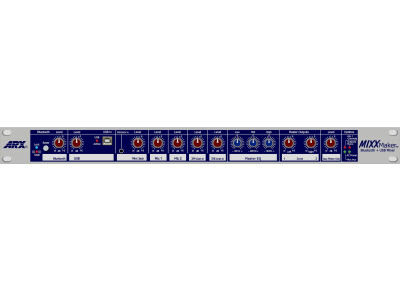

- Modèle : MIXXMaker
- Catégorie : Consoles numériques
- Bluetooth, USB and MiniJack inputs!
- Plus 2 x Balanced XLR Mic / Line Inputs
- Plus 2 x stereo Line In channels
- Global 3 way EQ control
- Switchable Phantom power
- Switchable push-to-talk with a Priority override ducker for Mic channel 1
- User-friendly layout in 1 RU package
- Flawless performance in any audio environment
Microphone Inputs: Electronically Balanced on XLR Connectors
Stereo Line Inputs: Line level inputs on RCA Connectors
Mic Priority Switchable Channel 1 override; 20dB attenuation to all other channels
Input Gain: Variable 0dB to 60dB on Mic/Line channels by rear panel trim control, plus Mic/Line input switch (–20dB)
Channel Level: Infinity to +6dB Gain
Mic and Line Channel EQ:
Low 100Hz 15dB Cut/Boost Shelving
Mid 800HZ 15dB Cut/Boost Bell, Broad Q
High 10KHz 15dB Cut/Boost Shelving
Frequency Response: 20-20KHz +or- 1dB
Distortion: Below .005% 100Hz to 10KHz
Phantom Power: +48VDC switchable on all Microphone Inputs
Bluetooth Receiver Specifications
|
Range: |
Approx 12 metres |
|
|
LED Indicators: |
Scan Red LED |
Red LED Flashes |
|
Lock Blue LED |
Matching/Pairing: Blue LED Flashes |
|
|
Matched/Paired: Blue LED On |
||
|
Bluetooth Version |
V2.1 EDR, 3.0, 4.0 |
Note - not compatible with V1.0 or 2.0 |
|
Frequency |
2.402 - 2.480 GHz |
|
|
Sensitivity |
-90dBM @0.1% BER |
Master Outputs: Electronically Balanced XLR 300 ohms Line Level
Master Outputs Signal/Noise: -90dB unweighted.
Max Output Level: +20dB
USB Specifications
Input Connector USB type B port
Codec 24 bit High Resolution
USB Power Operating current via USB Port 80mA
