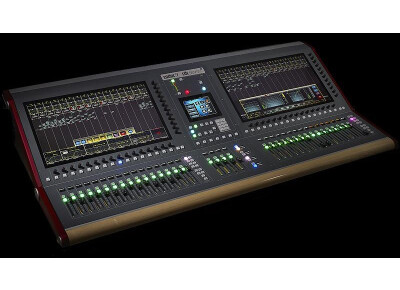

Cadac Consoles CDC Seven-S

Ajouter ce produit à

Déposer un avis

Où acheter CDC Seven-S ?

Moins

Il n’y a pas de petite annonce pour ce produit.

Alerte nouvelle annonce

Fiche technique

Créée le 10/04/2018

Console de mixage audio numérique de 128 entrées et 56 sorties avec DSP et 36 faders motorisés

Faders	36 x 100mm motorised faders
Screens	2 x 23.5" 16:9 HD + 1 x 6.5" Touchscreens
PSU	1 x external 19" 2U rackmount PSU
PSU	(option to add second external 19" 2U rackmount PSU with full redundancy
Inputs	Up to 192 (inc local I/O)
Channels	128 with full processing
Busses	48 configurable in pairs as group/aux/st aux plus dedicated LCR, monitor LR, headphones LR and talkback
Matrix	Up to 67 x 48 with full processing
Outputs	Up to 192 (inc local I/O)
Graphic EQ	32 band +/-16 dB on all 55 outputs
Internal FX	16 high-resolution 96 kHz stereo effects processors
Local IO	8 x XLR Mic Inputs (inc 48 V, PAD and 1 dB gain steps), 8x XLR Balanced outputs, 4 x XLR AES/EBU inputs and 4 x XLR AES/EBU outputs
Comms	2 x Cadac MegaCOMMS

Audio Specification
Sample Rate	96 kHz
Processing Delay	Sub 0.4 millisecond latency through complete signal chain
Internal Processing	40-bit floating point
ADC/DAC	24-bit
Frequency Response	20 Hz to 44 kHz + 0.5 / -1.5 dB
THD+N	better than 0.005% @unity gain, 10 dB input at 1 kHz
Channel Seperation	better than 90 dB
Residual Output Noise	< -90 dBu (20 Hz - 20 kHz)
MIC EIN	< -127 dB with 200 Ohm source impedance
Maximum Output	21 dBu
