e-licktronic midilickuino

Autre Contrôleur MIDI de la marque e-licktronic

Écrire un avis ou Demander un avis

Aucune annonce
Argus 50,00 €

Présentation du produit Présentation

Avis

Comparateur de prix

Petites annonces

Forums

Annonces midilickuino

Alerte nouvelle annonce

Images

Fiche technique

Fabricant : e-licktronic
Modèle : midilickuino
Catégorie : Autres Contrôleurs MIDI
Fiche créée le : 13/08/2018

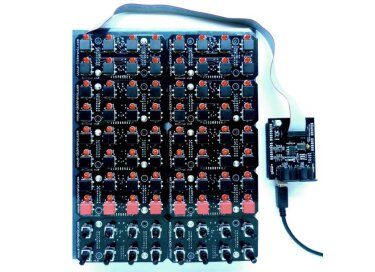

Midilickuino is a MIDI shield for Arduino that lets you build your own MIDI application (MIDI controller, sequencer, MIDI monitor ...). Two dedicated HE16 connectors allow you to connect up to 64 LEDs, 64 buttons (with Dilicktal board) and 48 potentiometers (with Lickogic board) and a LCD (with LCDBoard) to make your applications easier to use. I2C connector also allows you to add other components (EEPROM, converter ...)

The board is equipped with a Binary counter(CD4520). The first three bits A, B, C are connected to the input of the CD4051 Lickogic board. (see schematic) Specifications

Compatible with Arduino UNO, Arduino MEGA, Arduino Duemilanova, Freeduino ...

Two connectors MIDI IN and OUT

Two HE16 connectors allow you to connect various "Board" compatible

BOARD connector allows you to connect up to 6 x Lickogic board and 8 x Dilicktal board. LCD connector allows you to connect LCDBoard A connector dedicated to communication I2C protocol extends the possibilities of your applications (add digital to analog converter to control vintage synthesizers, add an EEPROM ...) compatible with the library wire.library.

Two switches are used to configure your Midilickuino

S2 can switch from "programming" mode to "MIDI"
S1 enables the I2C out (Warning: if you put the S1 position I2C you will not have more than 4 analog inputs on the Arduino instead of six (see wire.library).

A reset button
