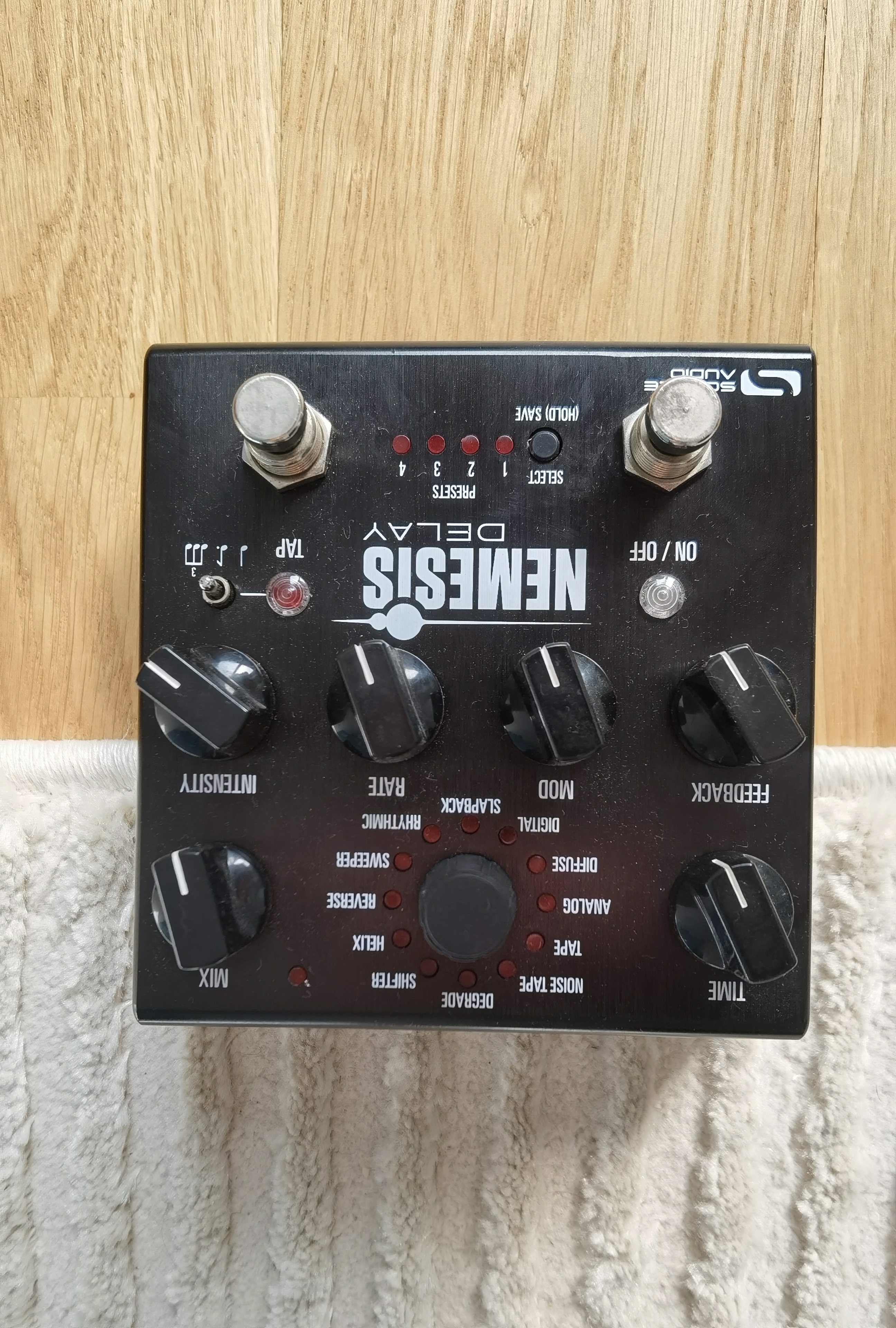

Source Audio Nemesis Delay

• Fabricant : Source Audio
• Modèle : Nemesis Delay
• Série : One
• Catégorie : Delays / échos pour guitare
• Poids du colis : 727 g
• Fiche créée le : 21/01/2015

La Nemesis est une pédale de délai numérique (12 types, extensible à 24) stéréo et MIDI. Elle peut enregistrer et rappeler jusqu'à 8 presets (128 via MIDI). Il est possible de modifier les reverb via l'éditeur Neuro.

General

• Model Number: SA260
• Bypass: True Bypass or Buffered Bypass
• Number of Presets: 8 (128 with MIDI)
• Controls:
  • Time Knob: Controls the delay time. If an effect engine uses multi-tap delays, this will set the time for the longest delay tap, and the sub-delays will automatically scale according to that.
  • Mix Knob: Controls the relative level between the dry input signal and the wet, processed signal. When set at 12 o'clock, the wet and dry signals will be at equal volume. Fully counter-clockwise is 100% dry, and fully clockwise is 100% wet.
  • Feedback Knob: Controls the amount of wet signal that is fed back into the delay effect. At minimum feedback, the delay effect will only process once. At maximum feedback, the delays will continue infinitely. It is also possible to set a feedback greater than 1, allowing for "self-oscillation" effects.
  • Mod Knob: Controls the depth of the modulation applied to the effect. It can have different functions depending on which engine is selected. Some effect engines use time (pitch) modulation, filter modulation, tape modulation (wow and flutter), or tremolo.
  • Rate Knob: This controls the speed of the time (pitch) modulation, filter modulation, wow and flutter, or tremolo. In tape delays, this simulates the tape speed.
  • Intensity Knob: The INTENSITY KNOB changes function depending on which engine is selected. Most effect engines can create a range of different sounds: warm to bright, clean to distorted, full to thin, and so on. The INTENSITY KNOB changes the color or character of the sound and allows you to dial in a unique flavor for each effect engine. The details of how the INTENSITY KNOB works are described in more detail in the individual descriptions of each effect engine.
  • Engine Selector Knob: Selects between the 12 main effect engines. To access the additional delay engines (the “back 12”), you’ll need to use the Neuro App or MIDI.
  • Tap Tempo Footswitch: Tap this footswitch two or more times to set the primary delay time. Make sure the SUBDIVISION SWITCH is set to quarter notes for basic quarter note operation. Press and hold the TAP footswitch to active HOLD mode. This will circulate the audio in the delay line infinitely until the TAP switch is released.
  • Tap Tempo Subdivision Switch: Selects a beat subdivision for tap tempo, allowing more complex delay times such as dotted eighths and triplets to be tapped in using the TAP FOOTSWITCH. The TAP LED will always blink in time with the duration you tapped in with the TAP FOOTSWITCH, even if a subdivision is selected.
  • Preset Select/Save Button: This button selects and loads one of the four user presets saved in the Nemesis. To save a preset into the currently selected spot, press and hold this button.
• Connectors:
  • Input 1: primary input for guitar, bass, or other instruments. It can also accept line-level inputs.
  • Input 2: secondary audio input for stereo sources, external feedback loop input, or as the data connection to your mobile device when using the Neuro App.
  • MIDI Input:  accepts MIDI control messages from external devices, including program changes, continuous controllers (CCs), and MIDI clock.
  • Output 1: primary output. Connect it to your amplifier, recording interface, or the next device in  your effects signal chain.
  • Output 2:  can act either as an audio output, external loop output, or as the daisy-chain data connection for the Neuro App
  • Midi Thru: echoes MIDI messages from the MIDI INPUT jack and sends them to other devices.
  • USB
  • Expression/Switch Pedal Input: connects to either an external passive expression pedal or footswitch
  • Control Input (3.5 mm): connects to external control devices such as the Source Audio Tap Tempo Switch, Source Audio Dual Expression Pedal, Reflex Universal Expression Pedal, Neuro Hub, and Hot Hand Motion Controller
  • Power: 9V DC
• Power Supply & 1/8” to 1/4” cable for Neuro Mobile App connection included

Technical Data

• Maximum Input Level: +6.54 dBV = 8.76 dBu = 2.12 V RMS = 6.0 V p-p
• Full Scale Output Level: +6.54 dBV = 8.76 dBu = 2.12 V RMS = 6.0 V p-p
• Input Impedance: 1 Mega Ohm
• Output Impedance: 600 Ohm
• 110 dB DNR Audio Path
• 24-bit Audio Conversion
• 56-bit Digital Data Path
• Power: 9V DC (center negative)
• Current Draw: 200 mA
• Dimensions (including knobs): 11.63 x 11.17 x 5.61 cm / 4.58 x 4.40 x 2.21 in
• Weight: 450 grams / 1 pound

Source : Mode d'emploi
