Fiche technique
- Fabricant : Brimstone Audio

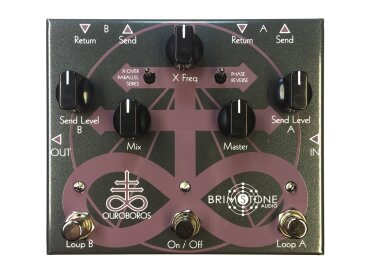

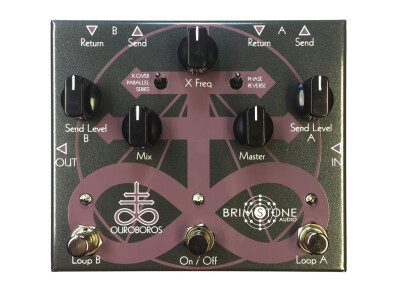

- Modèle : Ouroboros OB-1
- Catégorie : Effets guitare divers
- Fiche créée le : 15/06/2016
Everyone knows that the more effects pedals you turn on at once, the messier the sound gets. This can be desirable up to a point, but there's certainly a limit - and the Ouroboros smashes that limit to smithereens. Instead of having all your effects tripping over one another, the Ouroboros provides two effects loops that can be layered together in multiple ways. The Ouroboros can do a standard parallel blend configuration, but the real star of the show is Brimstone Audio’s innovate dual-band architecture, which uses a variable crossover to split your signal into high and low frequencies and route each to separate effects loops. You can then plug any effect into one of these loops and apply it only to the high or low frequencies of your sound. Now, instead of fighting with itself, your multi-effect tone becomes a beautiful, harmonious symphony.
FEATURES- Made in California, USA
- 100% analog signal path
- Buffered effects loops prevent signal loss, even when driving long cables
- Linkwitz-Riley sweepable steep-slope active crossover - THE standard for all high-end audio crossover applications
- 'Send Level' control for each effects loop (set to 12 o'clock for unity gain)
- 'Mix' control allows setting the balance between Loop A and Loop B
- 3-way mode switch allows for dual band (X-Over), parallel, or series operation
- Phase reverse switch for Loop A to avoid any potential phase issues between pedals
- Internal 2-position DIP switch to select guitar level or +4dB studio line level use for each effects loop, easily accessible through the battery compartment door without disassembly
- Panasonic metalized film capacitors throughout the audio path
- Nuetrik input and output jacks
- Internal 18V power supply (+/-9V) from single 9V source
- Standard 9V DC regulated power supply or 9V battery operation
- 18 gauge folded steel chassis
