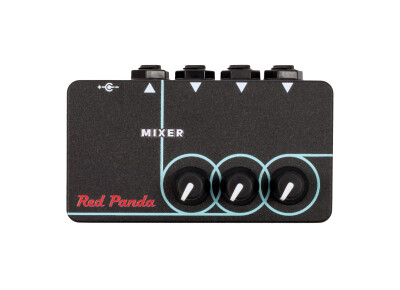

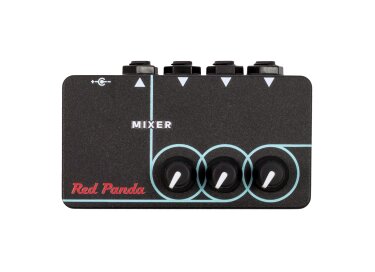

Red Panda Bit Mixer

The Bit Mixer is a small, high-quality mixer designed for pedalboards. It features ultra-low distortion, low noise op amps. High-impedance inputs are designed for guitar, but work with line level signals as well. Each input has a volume knob that goes from off to unity gain.

The Bit Mixer is always on when power is connected. An internal LED is visible below the power jack.

Usage

• Connect multiple instruments to one amp
• Combine parallel effects chains
• Clean blend or analog dry path

Specs

• Size: 4.4” x 2.6” x 1.5”
• Input impedance: 1 MΩ
• Output impedance: 1 kΩ
• Frequency response (+/- 3 dB): 20 Hz - 40 kHz
• Signal-to-noise ratio: 90 dB
• Power: 9-18 VDC, center negative
