- Fabricant : VFE Pedals
- Modèle : Klein Bottle
- Catégorie : Effets guitare divers
- Fiche créée le : 01/12/2017

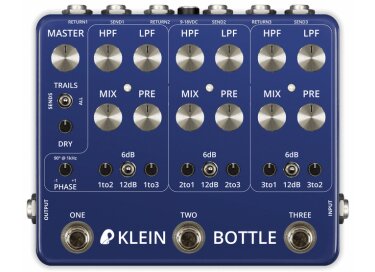

The Klein Bottle was designed for the noise makers, soundscape artists, endless tinkerers and tone wizards. This epic pedal starts by splitting the input signal into three FX loops. Each FX loop has dedicated controls for pre-gain, HPF/LPF (bandwidth filters), and main mix level. This allows you to send different parts of the signal to different effects, and blend them all back together to create new tones out of your existing pedals.
But wait, there's more! The magic happens when you use the independent feedback controls to send the signal from one FX loop into another...and then back again! Keep your existing tone intact with the DRY knob, while layering a cornucopia of sonic goodness on top.
DIMENSIONS - 6.2"W x 5"L x 1.6"H - 2.2" with knobs (158 x 127 x 41/56 mm)
WEIGHT - About 2.5 lbs (1.1 kg)
POWER - Accepts industry standard 9VDC, all the way up to 18VDC. We recommend using 18V if you plan on using the Klein Bottle with line level sources.
CURRENT DRAW - 50ma @ 9V, 100ma @ 18V
Klein Bottle Triple Delay Module (optional)
Since we hit our $50K stretch goal, I will begin working on a triple delay module to work specifically with the Klein Bottle. Here's a mockup of what it would look like. Of course, we'd design versions to match the other two graphic/color options.
In short, this module would have 3 independent delays with modulation, but remove the controls and features the Klein Bottle already covers (mix level, dry level, EQ, on/off switching). The jacks will align for easy connection with the Klein Bottle. By simplifying the design, it will make it much less expensive to build. My target retail price is $249 with a 20% discount for Kickstarter backers.
Because there is not time for me to develop a prototype before the end of this Kickstarter campaign, the delay module won't be available through Kickstarter. Instead, I will post an update once I have finished a working prototype and can show you how it works with the Klein Bottle. At that point, I'll also send out instructions on how to get a 20% discount.
