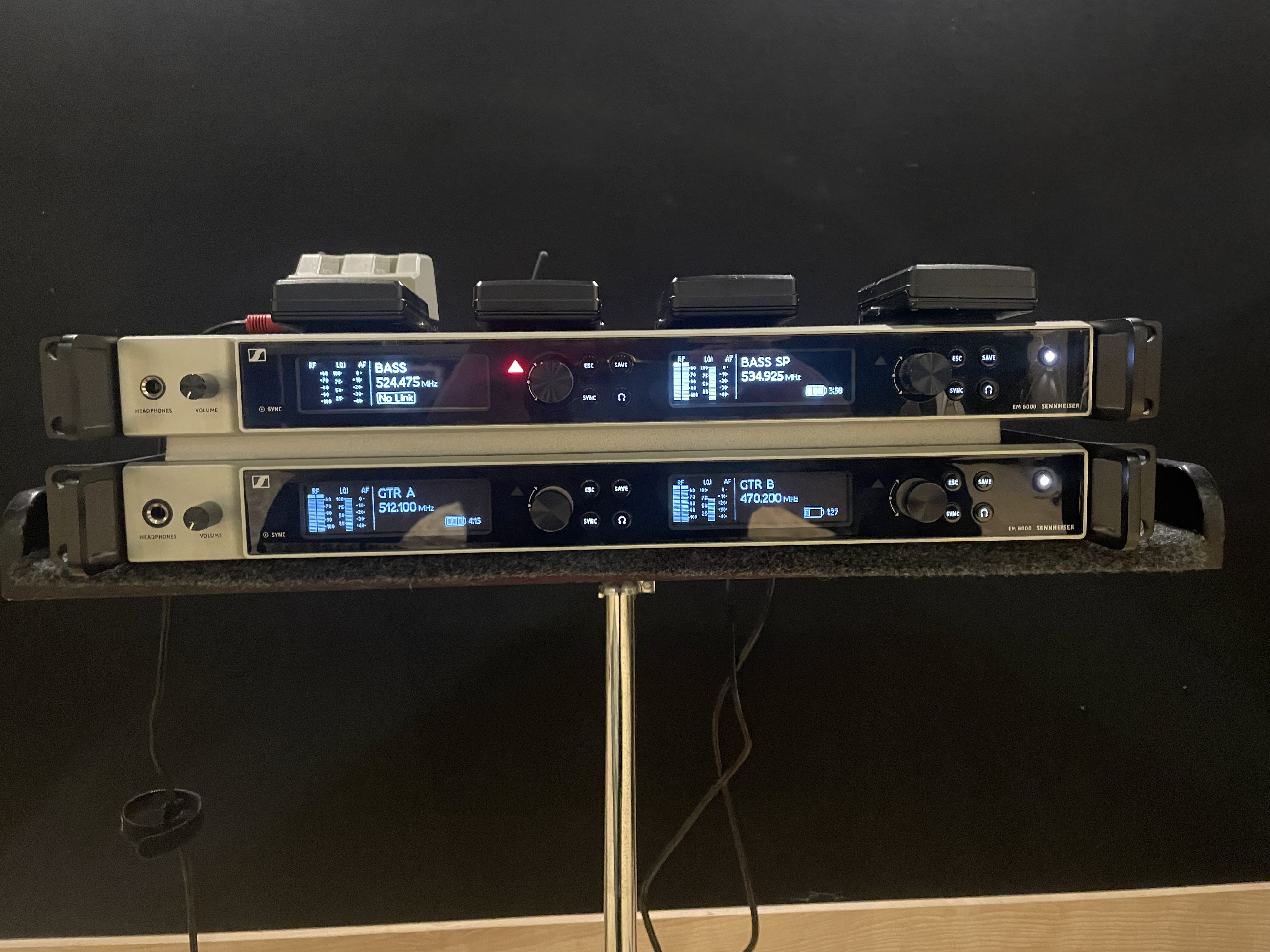

Sennheiser EM 6000

• Fabricant : Sennheiser
• Modèle : EM 6000
• Série : Digital 6000
• Catégorie : Emetteurs & récepteurs
• Poids du colis : 6.9 kg
• Fiche créée le : 07/03/2017

Module récepteur numérique de deux canaux du système HF Digital 6000

• 19’’ 2-Channel receiver, 19 inch 1RU

• Large 244 MHz switching bandwidth

• Legendary Long Range mode (LR) with proprietary audio codec (SeDAC) from the masterpiece Digital 9000

• True bit diversity utilizes both receiver paths, combines their information content to provide the best possible signal

• Equidistant frequency grid for maximum channel density and simplest setup

• 32 superior quality RF pre-selection filters for optimal suppression of interference signals at antenna input

• Error correction and audio error masking

• AES-256 encryption

• Automatic frequency setup

• Digital and transformer balanced analog outputs XLR, 6.3 mm jack, AES-3, EM 6000 Dante with Brooklyn II Card and Amphenol RJ-45

• Integrated antenna splitter for cascading of up to 8 systems

• one high-quality OLED display per channel

• Link Quality Indicator (LQI)

• Wireless Systems Manager (WSM) compatible

• Compatible with standard Sennheiser UHF antennas

• Compatible with Digital 9000 transmitters in Long Range mode

• Dimensions

  44 x 483 x 373 mm

• Réponse en fréquence

  30 Hz - 20 kHz (1.5 dB)

• Distorsion harmonique totale (DHT)

  < 0.03 % (@ 1 kHz)

• • Poids

    Approx. 5.2 kg

  • Alimentation

    Max. 35 W

  • Sortie audio

    Digital Audio outputs: AES3-2003, XLR-3: 48 kHz, 96 kHz, 24 bit
    Dante™, RJ-45: 48 kHz, 96 kHz, 24 bit
    Can be externally synchronized using WCLK loop-through with BNC sockets
    Analog Audio Outputs: XLR-3 and 6.3 mm jack per channel (transformer balanced)
    -10 dBu to +18 dBu in steps of 1 dB (2 kΩ)

  • Température d'entreposage

    -25°C to +70°C

  • Température de service

    -10°C to +50°C

  • Bande passante commutable

    244 MHz

  • Alimentation électrique

    90 - 240 V AC, 50/60 Hz

  • Connecteur d’antenne

    Input 2x BNC (50 Ω), 12 V DC, max. 200 mA each via antenna sockets, short circuit proof, Output 2 x BNC (50 Ω)

  • Plage dynamique

    111 dB (A) type

  • Plage de fréquences

    470 - 714 MHz

  • Niveau de sortie des écouteurs

    6.3 mm jack, 2x 100 mW at 32 Ω

  • Affaiblissement sur la fréquence image

    > 100 dB typ.

  • Sensibilité

    -100 dBm typ.

  • Word clock

    Input: BNC, 75 Ω
    Output: BNC, 75 Ω
    Sampling Rates: 48 kHz, 96 kHz

  • Humidité relative de l‘air Fonctionnement

    Operation: Max. 85% at 40°C (non-condensing)
    Storage: Max. 90% at 40°C (non-condensing)

  • Méthode de transmission

    Digital modulation, “LR” mode Min. frequency spacing for equidistant grid: 600 kHz

  • Latence

    Analog Audio Out: 3 ms
    Digital Audio Out: 3 ms (AES/EBU)

  • Codec audio

    SeDAC (Sennheiser Digital Audio Codec)

  • Network protocol

    IEEE 802.3-2002 (10/100 Mbit/s), shielded RJ-45 connection

  • Receiver Principle

    Double superheterodyne

  • Diversity principle

    True bit diversity

  • Encryption

    AES 256

  • Receiving channels

    2

  • Daisy-chained receivers (RF)

    Max. 8 EM 6000 units

  • Dante™ (only EM 6000 DANTE)

    IEEE 802.3 (1000 Mbit/s), shielded RJ-45 connection

  • Power plug

    3-pin, protection class I as per IEC/EN 60320-1

  • Water Protection Code

    The product must not be exposed to dripping and splashing (IP2X)
