Fiche technique
- Fabricant : HEDD Audio
- Modèle : Type 05
- Série : One
- Catégorie : Enceintes de monitoring actives
- Fiche créée le : 20/01/2016

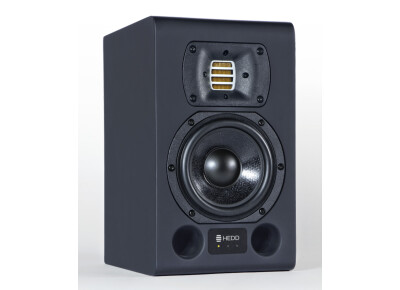

2-way bi-amped 50W, 5.5" active monitors for studio using Air Motion Transformer (AMT) technology, with an empty card slot that we have specifically designed to read AES3/EBU, Dante, or Ravenna Network (AES67) input cards.
| Drivers | |
| Woofer | 1 |
| Basket Ø | 5,5" (152 mm) |
| Voice coil Ø | 1,5" (38 mm) |
| Cone material | UHC cone (Ultra Honeycomb Composite) |
| Tweeter | 1 |
| Type | HEDD AMT (HEDD Air Motion Transformer) |
| Equiv. Diaphragm Ø | 2" (56 mm) |
| Input connectors | |
| Analog balanced/ unbalanced | XLR / RCA |
| Digital/HEDD Bridge Options | AES67 Ravenna, Dante, AES3/EBU |
| General data | |
| Amplification (ICEpower®) | 2 x 50 W |
| Input gain | -10 dB … +6 dB |
| High Shelf EQ > 5 kHz | ±4 dB |
| Low Shelf EQ < 300 Hz | ±4 dB |
| Tweeter gain | ±4 dB |
| Frequency response | 45 Hz - 50 kHz |
| THD 90dB/1m > 100 Hz | ≤0.5 % |
| Max SPL sine wave 100Hz - 3kH /1m | ≥103 dB |
| Max SPL peak per pair at 1m | ≥111 dB |
| Crossover frequencies | 2.600 Hz |
| Input impedance | 10 KOhm |
| Weight | 7 kg |
| Height x Width x Depth | 308 mm x 180 mm x 228 mm |
| Warranty | 2 years |
»
