Fiche technique
- Fabricant : EAW

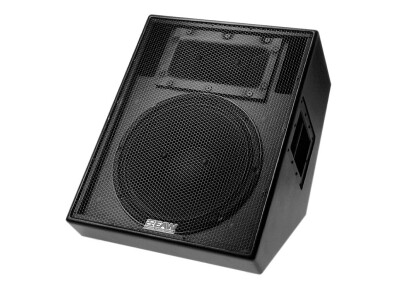

- Modèle : SM155e
- Catégorie : Enceintes de retour de scène / wedges
- Autres dénominations : sm 155e, sm155 e
LF Subsystem & Loading 1x 15-in, Vented
HF Subsystem & Loading 1x 1-in Exit Compression Driver on
Constant Directivity Horn
System Configuration 2-way, Full Range Floor Monitor
Powering Configuration(s) Passive LF/HF Crossover
Controls (switches, knobs) Midrange Presence Adjustment
Switch
Recommended High-Pass
Frequency (24 dB/Octave) 45Hz
Cabinet Type (shape) Irregular Pentagon (Floor Monitor)
Enclosure Materials Baltic Birch Plywood
Connectors 2x Neutrik NL4 Speakon
Frequency Response (Hz)
±3 db 70Hz to 17kHz
-10 dB 55Hz
Axial Sensitivity (dB SPL/1 Watt/1m) : 98
Impedance (Ohm) : 8
Power Handling (Watts)
AES Standard 480
Calculated Maximum Output (dB SPL, @ 1m)
Peak 130.8
Long Term 124.8
Nominal Coverage Angle / -6 dB points (degrees)
Horizontal 90
Vertical 45
Net Weight 28.2 kg
Distribué par Axente
