Fiche technique

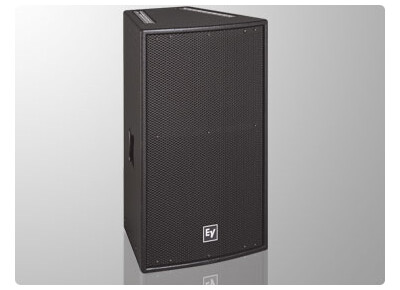

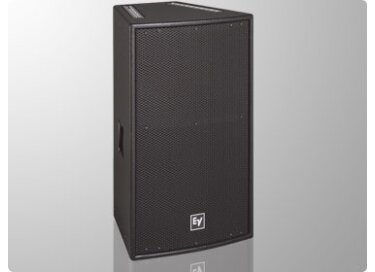

- Fabricant : Electro-Voice
- Modèle : Xi-1152A
- Catégorie : Enceintes de sono amplifiées
- Fiche créée le : 03/01/2013
| Axial Sensitivity (SPL, 1 W @ 1 m) | 98/113 (64F), 98/112 (94F) dB LF/HF |
| Chassis Size | 381 mm (15") |
| Directivity Index | 13.4 dB (+1.3/-2.3 dB) (64F), 12.3 dB (+0.7/-1.5 dB) (94F) dB 1200 - 16,000 Hz |
| Input Connections | Four-pin Speakon (2) |
| Long-Term Power Handling | 600/75 W LF/HF |
| Short-Term Power Handling | 2400/300 W LF/HF |
| Frequency Response (-3 dB) | 50 - 16000 Hz |
| Frequency Response (-10 dB) | 44 - 20000 Hz |
| Internal Crossover | No |
| Recommended High-Pass Frequency | Dx46 preset Hz |
| Sensitivity 1 W/1 m | 98 dB |
| Max. SPL/1m (calc) | 132/138 (64F), 132/137 (94F) dB LF/HF |
| Coverage (Nominal -6 dB) H | 60 (64F), 90 (94F) ° Const.-dir. horn |
| Coverage (Nominal -6 dB) V | 40 ° Const.-dir. horn |
| Rotatable Horn | Yes |
| LF Transducer | 15-inch (EVX-155) |
| LF Power Handling | 600 Watts |
| HF Power Handling | 75 Watts |
| LF Nominal Impedance | 8 Ω |
| HF Transducer | 1.4-inch (ND6-16) |
| HF Nominal Impedance | 16 Ω |
| Crossover Frequency | Dx46 preset Hz |
| Nominal Impedance (Passive) | 8/16 Ω LF/HF |
| Minimum Impedance | 6.3/14.0 (64F), 6.3/12.2 (94F) Ω |
| Flying | Yes |
| Outdoor | No |
| Height | 759 mm (29.88") |
| Width | 450 mm (17.72") |
| Depth | 413 mm (16.26") |
| Weight Net | 40.8 kg (89.95 lbs) |
