Fiche technique
- Fabricant : LD Systems

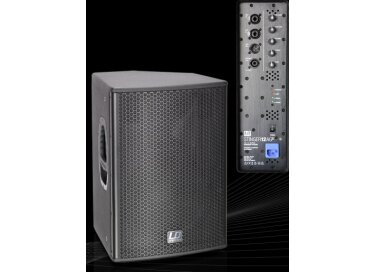

- Modèle : Stinger 12A G2
- Série : Stinger G2
- Catégorie : Enceintes de sono amplifiées
- Autres dénominations : stinger12ag2, stinger 12a g 2, stinger 12 a g2, stinger12 ag2, stinger12a g2
| Product number: | LDEB122AG2 |
|---|---|
| Product type: | PA loudspeaker |
| Type: | active |
| Low/mid driver dimensions: | 12" |
| Low/mid driver dimensions (mm): | 304.8mm |
| Woofer magnet: | Ferrite |
| Woofer brand: | Custom-made |
| Woofer voice coil: | 2.5" |
| Woofer voice coil (mm): | 63.5mm |
| Horn: | CD horn |
| HF driver dimensions: | 1" |
| HF driver dimensions (mm): | 25.4mm |
| HF driver magnet: | Ferrite |
| HF driver brand: | BMS |
| HF driver voice coil: | 1" |
| HF driver voice coil (mm): | 25.4mm |
| Amplifier: | Class D, Hypex Ucd400 |
| Dispersion (H x V): | 100 x 55° |
| RMS: | 400W |
| Peak power: | 1600W |
| Frequency response: | 58 - 19000Hz |
| Crossover frequency: | 1800Hz |
| Max. SPL (continuous): | 118dB |
| Max. SPL (peak): | 132*dB |
| Protection circuits: | over-current, HF Driver, over voltage |
| Input sensitivity: | - 5dBu |
| Controls: | Treble, Power, Mic Gain, volume, Bass, Line Gain |
| Indicators: | Power, protect (protection circuit engaged), signal, limit |
| Line inputs: | 1 |
| Line input connectors: | 6.3 mm Jack, XLR |
| Mic inputs: | XLR, 6.3 mm Jack |
| Line outputs: | 1 |
| Line output connectors: | XLR |
| Loudspeaker outputs: | 1 |
| Speaker output connections: | Speakon compatible |
| Minimum impedance of connected speakers: | 8Ohm(s) |
| Operating voltage: | Switching Power Supply, 220 V AC - 240 V AC, 50-60 Hz |
| Cabinet material: | 15 mm Plywood |
| Cabinet surface: | texture paint |
| Cabinet construction: | vented |
| Monitor angle: | 54° |
| Width: | 390mm |
| Height: | 570mm |
| Depth: | 370mm |
| Features: | SM707 stand mount 36 mm, 6 x M8 flying points, LD Systems "Evolutive" handles, *Short Term Max. SPL Peak @ 1m with Pink Noise |
| Weight: | 20.9kg |
Distribué par Adam Hall
»
