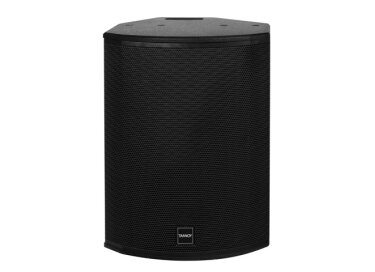

Tannoy VXP 15Q

Enceinte de sono amplifiée de la marque Tannoy appartenant à la série VXP

Écrire un avis ou Demander un avis

Avis

Comparateur de prix

Petites annonces

Annonces VXP 15Q

Alerte nouvelle annonce

PERFORMANCE

Frequency Response (-3 dB) (1) Full Range Mode	60 Hz – 25 kHz
Frequency Range (-10 dB) (1) Full Range Mode	47 Hz - 30 kHz
Frequency Response (-3 dB) (1) Hi-Pass mode	100 Hz – 25 kHz
Frequency Range (-10 dB) (1) Hi-Pass mode	80 Hz – 30 kHz
Dispersion (-6dB)	75 degrees (H) x 40 degrees (V)
Driver Complement	1 x 380 mm (15.00”) PowerDual™ with Q-Centric waveguide
Crossover	Passive 1.3 kHz
Directivity Factor (Q)	12.0 (averaged 1 kHz to 8 kHz)
Directivity Index (DI)	10.8 (averaged 1 kHz to 8 kHz)
Rated Maximum SPL (2)	Average: 125 dB Peak: 131 dB
Distortion 10% Full Power (17.9 V) 250 Hz 1 kHz 10 kHz	2nd Harmonic 3rd Harmonic 1.05% 0.10% 1.61% 1.02% 7.79% 1.15%
Distortion 1% Full Power (5.6 V) 250 Hz 1 kHz 10 kHz	2nd Harmonic 3rd Harmonic 0.30% 0.06% 0.58% 0.52% 2.32% 0.13%

CONSTRUCTION

Enclosure	54.9 litre, 18 mm birch plywood, vented and internally braced.
Finish	Textured black or white paint, with custom colours on request. Powder coated perforated steel grille, Airnet cloth behind
Connectors	1 x female XLR (input), 1 male XLR (link), 1 x Neutrik Powercon
Controls & Indicators	Level Control Power LED (Blue) Signal LED (Green) Limit/Protect LED (Red) Full Range / HighPass Switch (110Hz) Power Mode Switch Power Switch
Fittings	8 x M10 Flying inserts (portrait or landscape mounting), 8 x M10 yoke bracket inserts 1 x Integrip carrying handle Blanking plate for optional VTH pole mount
Dimensions (H x W x D)	590 x 450 x 420 mm (HxWxD) (23.2 x 17.7 x 16.5” )
Net Weight	29.0 kg (63.9 lbs)
Shipped Weight	31.5 kg (69.4 lbs)
Packed Quantity	1

ELECTRONICS

Maximum signal input for clip	'Input attenuator at Maximum: 4.5 dBu (Hard clip will occur at 14.5 dBu input signal)
Dynamic Range	'106 dB
Efficiency	>90%
Damping Factor	>400 ref 8 ohm at 1 kHz
Distortion	<0.05% @ 1 kHz -3 dB output (22 kHz bandwidth)
Input Impedance	10 kohm unbalanced, 20kohm balanced
Protection systems Over Current Clip limiter Temperature Brownout Mains Indicators	Output current limiter, always active Output voltage clip limiter, always active Over temperature causes protective mute Automatic protection & recovery Inrush current limiter 1x Power LED, 1x signal LED, 1x Limit LED (Power LED: Red = StandBy, Green = On, Yellow = Temperature protection active)
Amplifier Type	Inherently bridged, globally modulated, high performance single channel class D.

PSU SPECIFICATIONS

Input Connector	Locking Neutrik Powercon
Voltage Selection	Universal mains input
Type	High efficiency, regulated switch mode power supply
Efficiency	>85% typical
Input voltage	100Vac-240Vac /- 10%, 50-60 Hz /-10%
Mains fuse	Internal
Fuse type	3,15AT
Other features	Inrush current limiter

StandBy power consumtion	<1 W
Idle power consumption	<15 W
Maximum power consumtion	300 W
Notes: (1) Average over stated bandwidth. Measured at 1 metre on axis in an anechoic chamber. (2) Unweighted pink noise input, measured at 1 metre in an anechoic chamber.

Autres dénominations : vxp15q, vxp 15 q, vxp15 q
