Fiche technique
- Fabricant : RCF

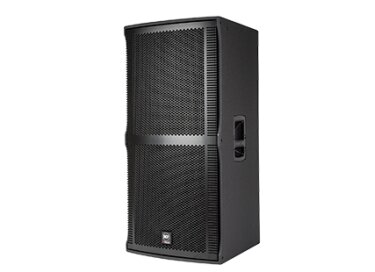

- Modèle : V45
- Série : V-MAX
- Catégorie : Enceintes de sono passives
- Poids du colis : 68.2 kg
- Fiche créée le : 24/01/2014
FEATURES
- High power, two-way bass reflex full range system
- 2 x 15" high power, 4" voice coil hypervented woofers
- 1 x 4" high power titanium neo compression driver
- 137 dB max SPL
- 1800 Watt AES
- Very high output, response down to 40 Hz
- Birch plywood cabinet
- Weather resistant, textured, polyurea finish
- Epoxy powder coated front grille
ACOUSTICAL SPECIFICATIONS
- Frequency Response -10 dB:30 Hz ÷ 20000 Hz
- Max SPL @ 1m:137 dB
- Horizontal coverage angle:90°
- Vertical coverage angle:40°
- Directivity index; Q:10
- System Sensitivity:99 dB
- Nominal Impedance:4 Ω
- Power Handling:1800 W
- Peak Power Handling:7200 W
- Recommended Amplifier:3600 W
- Protections:Bulb lamp dynamic
- Crossover frequencies:1200 Hz
TRANSDUCERS
- Compression Driver:1.4", 4" Voice coil
- Nominal Impedance:8 Ω
- Input Power Rating:140 W AES, 280 W PEAK W AES
- Sensitivity:110 dB
- Woofer:2 x 15", 4" voice coil
- Nominal Impedance:8 Ω
- Input Power Rating:900 W AES, 1800 W PEAK W AES
- Sensitivity:97 dB
INPUT SECTION
- Input connector:2 x SPEAKON NL4
CABINET
- Cabinet Material:15mm Birch Plywood
- Hardware:Pole mount, 12 x M10
- Handles:2 side
- Grille:Custom perforated steel grille
- Colour:black
PHYSICAL SPECIFICATIONS
- Height:1108.5 / 43.64 mm/inch
- Width:554,3 / 21.82 mm/inch
- Depth:579,3 / 22.81 mm/inch
- Net Weight:78 / 171.6 kg/lbs
Source : http://www.rcf.it/en_US/homepage-usa/
Distribué par RCF France
»
