Fiche technique
- Fabricant : Gibson

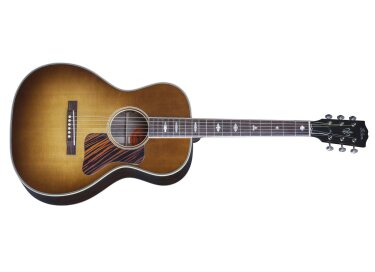

- Modèle : Nick Lucas Grande
- Catégorie : Guitares Folk / Western électro-acoustiques
- Fiche créée le : 07/01/2016
| Top | |
| Wood Species: | Sitka spruce |
| Pieces: | 2 |
| Grade: | AA |
| Binding: | 7 ply |
| Back | |
| Wood Species: | English Walnut |
| Pieces: | 2 |
| Binding: | 5 ply |
| Weight | |
| Average Weight (body only): | .866kg / 1.909lb |
| Materials Used | |
| Glue: | Franklin Titebond 50, Hide glue top bracing for optimal tonal transference |
| Tonal, Resonant, and/or Technical Effect: | Radiused top with scalloped bracing for projection and resonance, Full body depth L-00 |
| Body Contour | |
| Carve: | Radiused |
| Neck | |
| Wood Species: | Mahogany |
| Pieces: | 1 |
| Details | |
| Truss Rod: | Single Action |
| Profile: | V |
| Thickness at Fret 1: | 2.34cm / .924" |
| Other Materials: | Franklin Titebond 50, hot hide glue neck joint |
| Average Weight: | 408.23 g / 14.4 oz |
| Peg Head | |
| Type: | AJ w/Taper |
| Inlay: | MOP |
| Logo: | Gibson script and fleur de lis |
| Headstock Angle: | 17 degrees |
| Tonal, Resonant, and/or Technical Effect: | Compound Dovetail neck joint for resonance distribution throughout guitar |
| Neck Fit | |
| Joint Angle: | 3 degrees |
| Joint Angle Tolerance: | Compound Dovetail |
| Adhesive: | Hot hide glue |
| Gauges Used: | Short Scale Pitch Guage |
| Nut | |
| Material: | Bone |
| Width: | 4.38 cm / 1.725" |
| Slots: | E: .053 String Guage A: .043 D: .032 G: .024 B: .016 e: .012 |
| Fingerboard | |
| Wood Species: | Rosewood |
| Pieces: | 1 |
| Shade: | 30.48 cm / 12 " |
| Fingerboard Details | |
| Radius: | 19 |
| Frets: | 4.38cm / 1.725" |
| Nut/End of Board: | 5.70cm / 2.245" @ nut, @ end of board |
| Binding: | Single Ply Cream, WBW on side |
| Side Dots (Color): | Black |
| Fingerboard Inlays | |
| Style: | Traditional Nick Lucas |
| Material: | Mother of Pearl |
| Average Weight: | 0.11kg / 0.25lb |
Finishes Honeyburst
| Color Code: | HB |
| Surface Texture: | Smooth/ Hi Gloss 90 Sheen Lacquer |
| Filler: | Walnut |
| Sealer: | 1-1.5 mils |
| Top: | SNBST YELLOW / ANY0033, TBCO BROWN / NAB0531 |
| Top Coat: | Smooth/ Hi Gloss 90 Sheen Lacquer |
| Scraped: | Fingerboard Sides and Nut |
| Tuning Keys | |
|---|---|
| Style: | Nickel Waverly |
| Weight: | 32.65g / 1.152oz |
| Tuning Keys Details | |
| Tuning Ratio: | 16:1 |
| Plating specs: | Nickel |
| Part numbers: | 140-130-580 |
| String Dimensions | |
| E: | 0.053 |
| A: | 0.042 |
| D: | 0.032 |
| G: | 0.024 |
| B: | 0.016 |
| e: | 0.012 |
| Bridge | |
| Style: | Traditional rectangle |
| Material: | Rosewood with bone saddle |
| Part number: | 140-120-912, 140-130-868 |
| Weight: | 22g / .8 oz |
| Output Jack | |
| Pickup | |
| Style: | L.R. Baggs Lyric |
| Pick Guard | |
|---|---|
| Style: | Firestripe L-00 |
| Part Number: | 140-130-965 |
| Truss Rod Cover | |
| Style: | B/W |
| Part Number: | 140-130-840 |
| Case | |
|---|---|
| Style: | Hard Shell |
| Color: | Black |
| Manual: | Gibson Acoustic Owner's Manua |
»
