Fiche technique
- Fabricant : Gibson

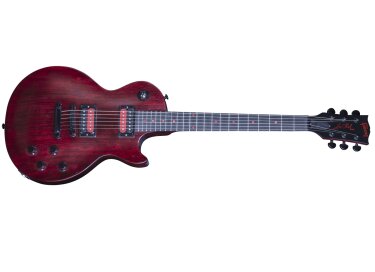

- Modèle : Les Paul Voodoo (2016)
- Série : Les Paul
- Catégorie : Guitares de forme LP
- Autres dénominations : les paul voodoo 2016, lespaulvoodoo 2016, lespaulvoodoo2016, les paul voodoo2016, lespaul voodoo 2016, les paul voodoo 20 16, lespaulvoodoo 20 16, lespaulvoodoo20 16, lespaul voodoo2016, les paul voodoo20 16
Edition limitée apparue en 2016 dans le catalogue Gibson.
| Top | |
| Wood Species: | Ash |
| Pieces: | 2 |
| Grade: | A |
| Binding: | None |
| Back | |
| Wood Species: | Ash |
| Pieces: | 1-2 |
| Density: | A |
| Binding: | None |
| Weight | |
| Weight Relief: | 9 Hole |
| Average Weight (body only): | 5 lbs. 0.8 oz |
| Materials Used | |
| Glue: | Franklin Titebond 50 |
| Body Contour | |
| Carve: | Classic |
| Neck | |
| Wood Species: | Maple |
| Pieces: | 1 |
| Details | |
| Truss Rod: | Les Paul |
| Profile: | Rounded |
| Thickness at Fret 1: | 0.800" |
| Thickness at Fret 12: | 0.875" |
| Average Weight: | 1.2 lbs |
| Peg Head | |
| Type: | SP1-B |
| Inlay: | Blank |
| Peg Head Binding: | None |
| Logo: | None |
| Silkscreen: | RED "Gibson" & "Les Paul Model" |
| Headstock Angle: | 17 degrees |
| Neck Fit | |
| Joint Angle: | 5.0 degrees |
| Joint Angle Tolerance: | 0 deg 0 min 15 sec |
| Type: | Mortis and Tenon |
| Adhesive: | Franklin Tightbond 50 |
| Gauges Used: | Pitch Gage |
| Nut | |
| Style: | Nut - Black |
| Material: | TekToid |
| Width: | 1.695 |
| Slots: | E: 0.046"' A: 0.036" D: 0.026' G: 0.016" B: 0.011" e: 0.009" |
| Fingerboard | |
| Wood Species: | Composite |
| Pieces: | 1 |
| Shade: | Dark |
| Fingerboard Details | |
| Radius: | 12 degrees |
| Frets: | 22 |
| Nut/End of Board: | 1.695" @ nut, 2.260" @ end of board |
| Scale: | 24.75 |
| Binding: | None |
| Side Dots (Color): | Red |
| Fingerboard Inlays | |
| Style: | Dot |
| Material: | Red Arcylic |
| Dimensions: | 0.249" |
| Average Weight: | 5.2 oz |
| Color Code: | JJ |
| Surface Texture: | 30 Sheen Satin |
| Filler: | Black |
| Sealer: | 1.0 - 1.5 mils |
| Top: | JuJu |
| Top Coat: | Satin Lacquer / 30 Sheen, 3-4 mils |
| Scraped: | Fingerboard sides and Nut |
| Pickups | Rhythm | Lead | |
|---|---|---|---|
| Style: | Voodoo Rhythm Double Slug | Voodoo Lead Double Slug | |
| Winds/Coil: Screw side/Slug side: | 5250 | 5400 | |
| Material of Wire (gauge): | Enamel (42) | Enamel (42) | |
| Coil Dimensions (per coil): | 6.6294 cm x 1.7272 mm / 2.61" x 0.68" | 6.6294 cm x 1.7272 mm / 2.61" x 0.68" | |
| Coil Material: | Red/Black Satin ABS | Red/Black Satin ABS | |
| Coil Winding Process: | Machine Wound | Machine Wound | |
| Pole Piece Material: | n/a | n/a | |
| Pole Piece Position from Nut: | slug-47.3075 cm / 18.625" | slug- 59.52998 cm / 23.437 inches | |
| Slug Material: | Nickel plated steel | Nickel plated steel | |
| Slug Dimensions (diameter x length): | 4.7498 mm x 1.24206 cm / 0.187 x 0.489" | 4.7498 mm x 1.24206 cm / 0.187 x 0.489" | |
| Magnet Material: | Alnico II | Alnico II | |
| Magnet Position from Nut: | 48.26 cm / 19 " | 58.7375cm / 23.125 " | |
| Magnet Dimensions: | 9.525 cm x 12.7 mm / 2.375" x 0.5" | 9.525 cm x 12.7 mm / 2.375" x 0.5" | |
| Cover: | None | None | |
| Qfactor: | 5.53 | 5.34 | |
| ResistanceDC: | 7925 Ohms | 8140 Ohms | |
| Resonant Frequency: | 2703.93Hz | 2622.86Hz |
| Control Pocket Assembly | Lead Volume | Rhythm Volume | |
|---|---|---|---|
| Type: | 500k Non-Linear | 500k Non-Linear | |
| Peak Voltage: | 500V | 500V | |
| Range: | 0-500k | 0-500k | |
| Power Rating: | 1/4 watt above 100k ohms | 1/4 watt above 100k ohms | |
| Resistance Tolerance: | +/- 20% | +/- 20% | |
| Minimum Resistance: | 200 ohms | 200 ohms | |
| Lead Tone | Rhythm Tone | ||
| Type: | 500k Non-Linear | 500k Non-Linear | |
| Peak Voltage: | 500V | 500V | |
| Range: | 0-500k | 0-500k | |
| Power Rating: | 1/4 watt above 100k ohms | 1/4 watt above 100k ohms | |
| Resistance Tolerance: | +/- 20% | +/- 20% | |
| Minimum Resistance: | 200 ohms | 200 ohms | |
| Capacitors: | Lead Value | Rhythm Value | |
| .022uF | .022uF |
| Tuning Keys | |
|---|---|
| Style: | Grover Kidney |
| Material: | Zamak |
| Weight: | 1.0 oz |
| Tuning Keys Details | |
| Tuning Ratio: | 14:01 |
| Gear Type: | worm |
| What is allowable turn: | +/- 4 degrees |
| Plating specs: | Black Chrome |
| Part numbers: | 430-14192/193 |
| String Dimensions | |
| E: | 1.1684mm / 0.046" |
| A: | 0.9144 mm / 0.036" |
| D: | 0.6604 mm / 0.026" |
| G: | 0.4064mm / 0.016" |
| B: | 0.2794mm / 0.011" |
| e: | 0.2286mm / 0.009" |
| Bridge | |
| Style: | Tune-o-matic |
| Material: | Zamac |
| Plating Specs: | Black Chrome |
| Part number: | 430-10774 |
| Weight: | 2.56 oz |
| Dimensions of String Slots | |
| E: | 0.046"' |
| A: | 0.036" |
| D: | 0.026' |
| G: | 0.016" |
| B: | 0.011" |
| e: | 0.009" |
| Tailpiece | |
| Style: | Stop Bar |
| Compensated: | No |
| Material: | Zamak |
| Plating Specs: | Black Chrome |
| Part number: | 430-10779 |
| Weight: | 2.9 oz |
| Output Jack | |
| Style: | 1/4" mono |
| Jack Plate | |
| Style: | Les Paul |
| Material: | ABS Black |
| Part Number: | 430-19385 |
| Weight: | .21 oz |
| Strap Buttons | |
| Material: | Anodized Aluminum |
| Plating Specs: | Black |
| Part numbers: | 430-19162 / 162E |
| Weight: | .14 oz |
| Pick Guard | |
|---|---|
| Style: | None |
| Truss Rod Cover | |
| Style: | Satin Black, Blank |
| Part Number: | 430-19363 |
| Knobs | |
| Style: | Black Top Hat w/ Red Numbers |
| Part Number: | 430-19667 |
| Dial Pointers | |
| Yes/No: | No |
| Control Plate(s) (Backplate Cover) | |
|---|---|
| Style: | Les Paul SS infused Polycarbonate |
| Part Number: | 430-12209 |
| Control Plate(s) (SwitchPlate Cover) | |
| Style: | Les Paul SS infused Polycarbonate |
| Part Number: | 430-12211 |
| Switch Washer | |
| Style: | Black w/ Red stamp |
| Part Number: | 430-19464 |
| Trim Rings | |
| Style: | Low/High Black Humbucker |
| Part Number: | 440-13884 / 440-13851 |
| Case | |
|---|---|
| Style: | Voodoo Harshell |
| Color: | Red Snake Skin |
| Strap Locks: | No |
| Tools: | Truss Rod Wrench |
| Manual: | Gibson USA Owner's |
| COA/Other: | None |
»
