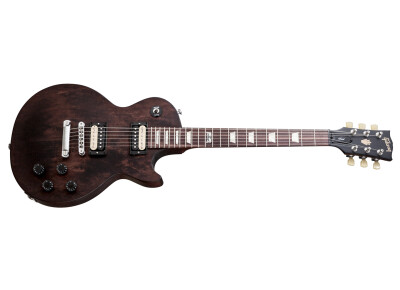

Fiche technique
- Fabricant : Gibson
- Modèle : LPM (2014)
- Série : Les Paul
- Catégorie : Guitares de forme LP
- Autres dénominations : lpm 2014, lpm2014, lpm 20 14, lpm20 14
Body
| Top | Maple |
| Back | Mahogany |
| Adhesive | Franklin Titebond 50 |
Neck
| Species | Maple |
| Profile | ’50s Rounded |
| Truss Rod | Standard |
| Joint Angle | 5° (+/- 15 seconds) |
| Adhesive | Franklin Titebond 50 |
Neck Fit
| Joint | Mortise & Tenon |
| Adhesive | Franklin Titebond 50 |
| Joint Angle Tolerance | +/- .005" |
Fingerboard
| Species | Rosewood |
| Frets | Cryogenically Frozen, 22 |
| Radius | 12" |
| Nut/E.O.B | 1.695/2.260 |
| Inlays | Figured Acrylic Trapezoid |
Nut
| Material | Black TekToid™ |
| Width | 1.695 |
| Slots | Gibson PLEK System |
Headstock
Tuners
| Silkscreen | Gold "Gibson" & "Les Paul Model" |
| Truss Rod Cover | Black w/ White |
Tuners
| Model | Vintage with Perloid Buttons |
| Plating | Nickel |
| Tuning Ratio | 14:1 |
Bridge
| Type | Tune-o-matic |
| Material | Chrome |
Tailpiece
| Type | Stop Bar |
| Plating | Chrome |
Hardware
| Knobs | Black Supreme Grip Speed Knobs |
| Control Plate | Black |
| Trim Rings | Black |
| Strings | .009 - .046, Genuine Gibson strings |
| Strap Buttons | Aluminum |
Pickups
| Neck Position | 1961 Zebra Coil (Alnico V) |
| Bridge Position | 1961 Zebra Coil (Alnico V) |
Electronics
| Potentiometers | 2 Volume Controls, 2 Tone Controls |
| Type | 500K Non-Linear |
| Toggle Switch | Three-way Switchcraft with Black Plastic Tip |
| Output Jacks | 1/4" mono |
Model Number / Finish
|
LPMC2RS1
LPMT2RS1
LPMHVRS1
LPM2VRS1
LPMF2RS1
|
Cherry (Satin)
Chocolate (Satin)
Rubbed Vintage Shade (Satin)
Vintage Sunburst Perimeter (Satin)
Fireburst (Satin)
|
| Sealer | Nitrocellulose |
| Process | 1-1.5 mils |
Case
| Type | Gibson Gigbag |
| Exterior | Black with White Logo |
Accessories
| Additional Materials | Each LPM comes with a Truss Rod Wrench, adjustment literature, and documentation for the guitar’s Limited Lifetime Warranty, along with Gibson’s 24/7/365 Customer Service. |
Source : http://www2.gibson.com/Products/Electric-Guitars/2014/LPM.aspx
»
