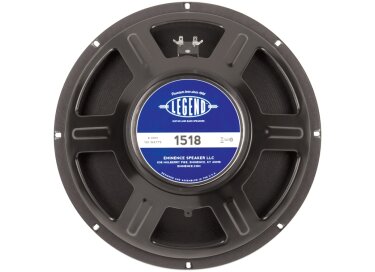

Eminence Legend 1518

Name: Legend 1518
Brand: Eminence
SKU: 248871

Ajouter ce produit à

Haut-parleur guitare de la marque Eminence appartenant à la série Legend

Déposer un avis

Où acheter Legend 1518 ?

Moins

Meilleur prix neuf

Voir plus d’offres

Fiche technique

Créée le 01/02/2016

A higher power 15 inch guitar speaker with well balanced vintage guitar tone. Big low-end, with a mellow, but singing top end and medium break-up.

Specification
Nominal Basket Diameter	15", 381 mm
Nominal Impedance*	8 Ω
Power Rating*
Program Power	N/A
Watts	150 W
Resonance	82 Hz
Usable Frequency Range	60 Hz - 4 kHz
Sensitivity*	103.4 dB
Magnet Weight	59 oz.
Gap Height	0.31", 7.9 mm
Voice Coil Diameter	2", 51 mm
Thiele & Small Parameters
Resonant Frequency (fs)	82 Hz
DC Resistance (Re)	7.16 Ω
Coil Inductance (Le)	0.86m H
Mechanical Q (Qms)	10.12
Electromagnetic Q (Qes)	1.02
Total Q (Qts)	0.93
Compliance Equivalent Volume (Vas)	65.4 liters / 2.31 cu.ft.
Peak Diaphragm Displacement Volume (Vd)	65.9 cc
Mechanical Compliance of Suspension (Cms)	0.07 mm/N
BL Product (BL)	14.1 T-M
Diaphragm Mass Inc. Airload (MMs)	55 grams
Efficiency Bandwidth Product (EBP)	80
Maximum Linear Excursion (Xmax)	0.8 mm
Surface Area of Cone (Sd)	823.7 cm2
Maximum Mechanical Limit (Xlim)	N/A
Mounting Information
Recommended Enclosure Volume
Sealed	Acceptable
Vented	Acceptable
Driver Volume Displaced	0.128 cu.ft. / 3.62 liters
Overall Diameter	15.15", 384.8 mm
Baffle Hole Diameter	13.87", 352.3 mm
Front Sealing Gasket	Yes
Rear Sealing Gasket	N/A
Mounting Holes Diameter	0.25", 6.4mm
Mounting Holes B.C.D.	14.56", 369.8mm
Depth	6.1", 154.9 mm
Net Weight	12.1 lbs, 5.49 kg
Shipping Weight	14.1 lbs, 6.4 kgs
Materials of Construction
Coil Construction	Copper voice coil
Coil Former	Polyimide former
Magnet Composition	Ferrite magnet
Core Details	Non-vented core

Basket Materials	Pressed steel basket
Cone Composition	Paper cone
Cone Edge Composition	Paper cone edge
Dust Cap Composition	Zurette dust cap
