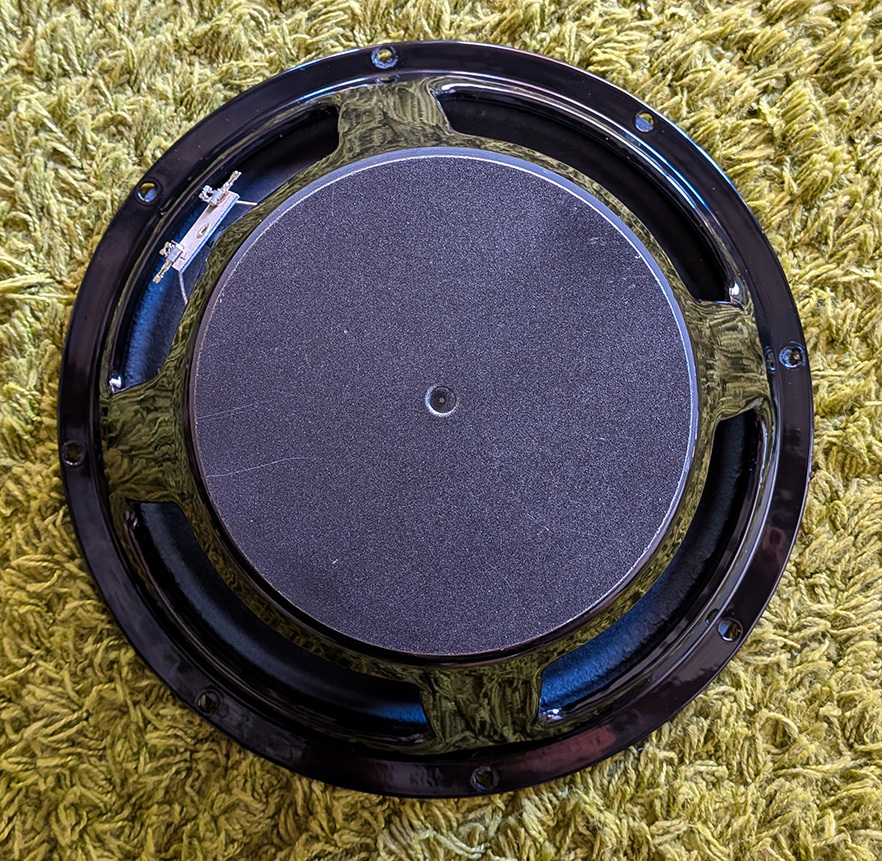

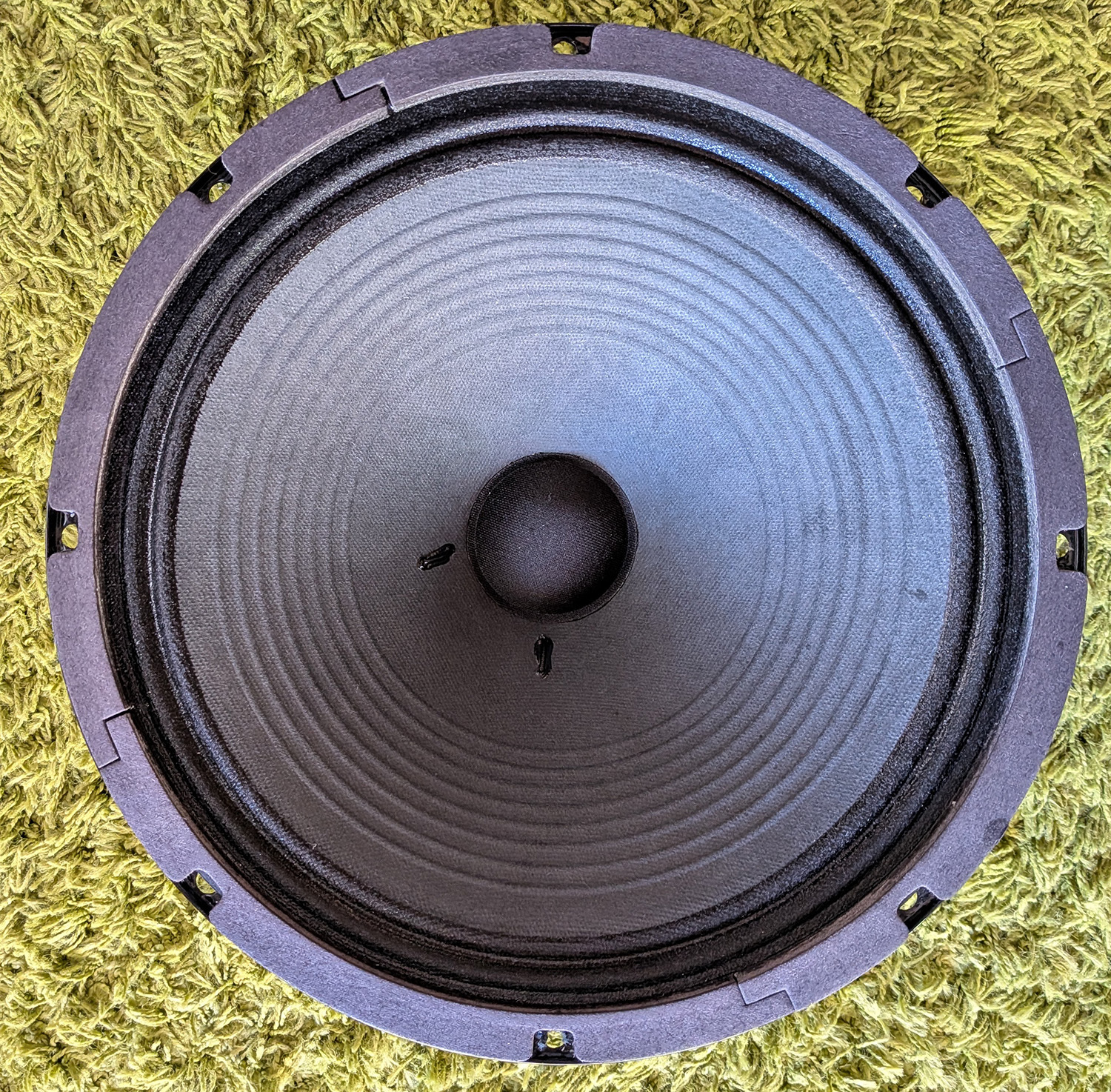

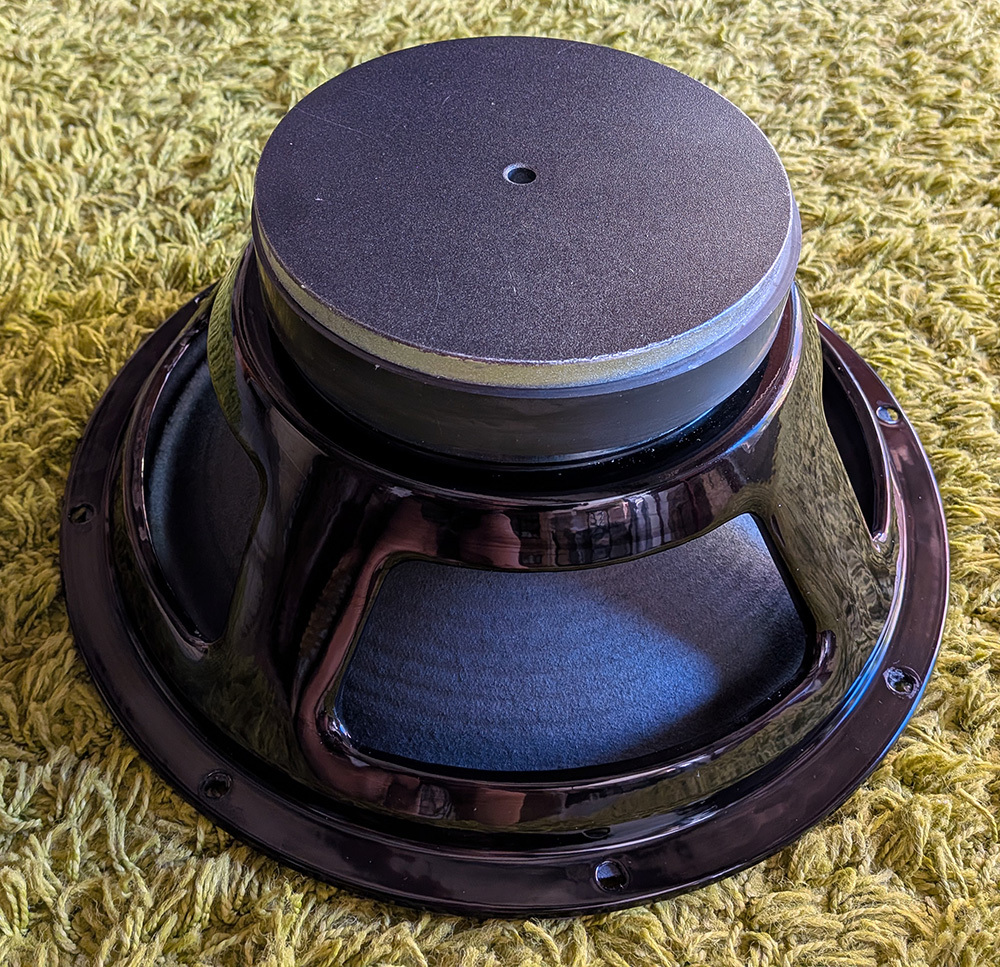

HP WGS Reaper 16 ohms

Description

Ce HP Reaper de chez WGS équipait un baffle Lys Amplification.

Reaper 12 pouces 16 ohms.

The 12” high power Reaper HP™ is designed to go where the 30 watt version couldn't. If you want a good clean tone with just the right amount of breakup at medium-high volume, then this is your speaker. This 50 watt version is both warmer and more powerful than the 30 watt version.

Unit Weight: 10 pounds

Mounting Information

Diameter: 12.2”
Overall depth: 5.3”
Cut-out diameter: 11.1”
Mounting slot dimensions: 0.31”
Number of mounting slots: 8


Thiele-Small Parameters

Resonant Frequency (Fs): 101.9 Hz
DC Resistance (Re): 6.7 Ohm
Coil Inductance (Le): 8 mH
Mechanical Q (Qms): 8.613
Electromagnetic Q (Qes): 0.7235
Total Q (Qts): 0.6674
Compliance Equiv. Vol. (Vas): 1.384 cu ft
Mech. Compliance of Susp. (Cms): 87.6 mm/N
BL Product (BL): 13.76 T-M
Diaphragm Mass Inc. Airload (Mms): 27.8476 grams
Surface Area of Cone (Sd): 558.645 cm squared
Sound Pressure Level (spl): 99.42 db
