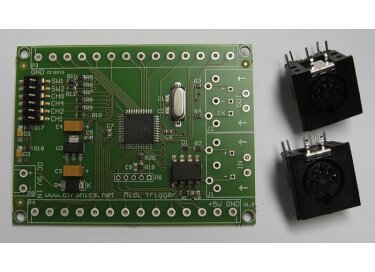

Dtronics Midi to Trigger interface V4

Features:

• Has Midi input and midi thru connectors (included seperately)
• Has 24 trigger outputs ( 5 volt positive puls, selectable 1ms, 10ms per pulse or note on/off)
• Has 1 master trigger output ( triggers always when 1 of the 24 outputs are triggered)
• Triggers notes 36 to 59 (c2 to b3)



When you play a note , the corresponding trigger output will genarate a pulse of 1ms or 10ms,
or will be high as long as the note is on (set with dipswitch) Ideal for your D.I.Y. synthesizer / drumcomputer project.

• Can be set from channel 1 to 16 with a dipswitch
• 1ms ,10ms or note on/off selectable with jumper.
• Trigger outputs are available on 2 14pin headers.
• Can be set to midi monitor mode.



Input: 8 to 12VDC

Size: 80x60mm
