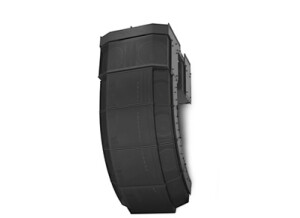

Bose MSA12X

Full-frequency range 75 – 14,000 Hz (-10 dB)

Articulated Array® design produces wide, 160° horizontal coverage

12x full-range 2.25" transducers with onboard 600 W amplification

Integrated DSP allows digital control and dual-beam steering per module

Four beam algorithm modes: steer/spread, asymmetrical steer, and spiral

Independent level and EQ control per-beam, with a ten-preset memory

Integrated bracket system for up to 90° pivoting from wall

DanteTM network audio and line-level analog input connectivity

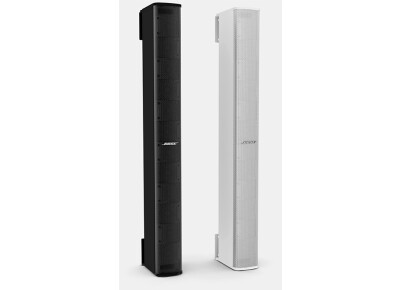

Slim, unobtrusive aluminum design in both white and black

Design, setup, and control of beam coverage using Bose Modeler® and

ControlSpace® software
