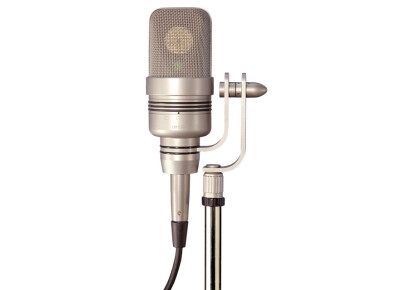

Microtech Gefell UM 930

Ajouter ce produit à
  • Mon ancien matos
  • Mon matos actuel
  • Mon futur matos
Déposer un avis
Où acheter UM 930 ?
Moins
  • Neuf
  • Occasion
Aucun revendeur ne propose ce produit pour le moment.
Il n’y a pas de petite annonce pour ce produit.
Alerte nouvelle annonce
Déposer une annonce

Fiche technique

Créée le 21/05/2006
Dual Condenser Microphone
UM 930
Polar pattern
Omni, wide cardioid, cardioid, hyper cardioid, figure 8
Acoustic operating principle
Pressure gradient transducer
Dual-capsule
Large diaphragm
Frequency range
40 . . . 18000 Hz
Sensitivity at 1 kHz (cardioid)
20 mV/Pa
Output impedance
100 Ω
Noise level
(cardioid)
CCIR 468 - 4
13 dB
DIN EN 60651
7 dB - A
Signal-to-noise-ratio
(re 1 Pa bei 1 kHz)
CCIR - weighted
81 dB
A - weighted
87 dB
Max. SPL for 0,5% THD
142 dB
Dynamic range
135 dB
Current consumtion ( P 48, DIN 45596, IEC 268 - 15 )
4,5 mA
Output connector UM 930
3-pin XLR connector, goldplated contacts
Weight
930 g
Dimensions ( L x Ø )
158 mm x 65 mm
Finish
satin nickel, dark bronze

Source : http://www.microtechgefell.de/index.php/en/microphones/broadcast-a-recording/large-membrane-transistor-mics/

»
