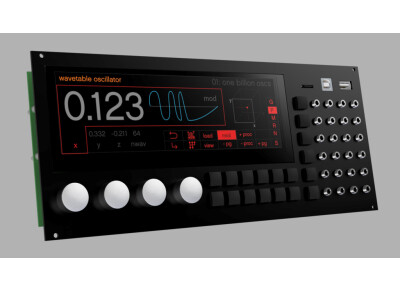

Percussa Super Signal Processor

• Fabricant : Percussa
• Modèle : Super Signal Processor
• Catégorie : Modules générateurs pour synthés modulaires
• Fiche créée le : 17/08/2017

Processeur et générateur de signal au format Eurorack basé sur des processeurs quad-core ARM Cortex A17, avec DSP et drivers d'E/S audio pro

Audio I/O

• 8 outputs via high end AKM DAC with 32 bit resolution / 192kHz sample rate (AK4458)
• 2 inputs via high end AKM ADC with 32 bit resolution / 192kHz sample rate (AK5552)
• Support for eurorack DC voltage level ranges on inputs and outputs (-5V to +5V)
• Low-noise power supplies and op-amp stages, featuring 0.1% resistors

Control Voltage I/O

•  14 inputs via industrial ADCs or via AKM audio ADCs (see “status of project” section)
• Support for eurorack DC voltage level range (-5V to +5V)

DSP Processing

• Quad core processor running at 1.8 GHz per core 32-bit SIMD and 64-bit floating point arithmetic
• 32-bit floating point ADC/DAC input / output
• Capable of running multiple software modules in parallel on multiple cores

Synthesis Engine

• Supports recording audio inputs and outputs directly to SD card for instant wavetable / sample creation or recording of live performances without the need for external software
• Supports loading your own WAV files into the Wavetable Oscillator and Sampler software modules, via the SD card (limited only by SD card size / RAM size)
• Coarse and Fine frequency controls on all Oscillators
• Comes with a set of 100+ pre-recorded samples / wavetables
• Storage and Recall of Presets and Settings with the press of a button
• Rule-based fast 2D patching
• Supports routing / mixing multiple inputs to multiple software modules
• Supports routing / mixing multiple software modules to multiple outputs

Included DSP modules (see stretch goals for additional modules)

• Wavetable Oscillator with true 3D morphing (XYZ) and cloud features
• Sampler with Layering features
• LFO with multiple waveforms (sine, saw, square, triangle)
• Variable Frequency Noise
• DC generator
• Enveloped Generator with Exponential A and DR
• Waveshaper
• Comb Filter
• State Variable Filter
• Step Sequencer

Development Kit

• SDK with examples for writing your own modules in C++
• Support on the SSP to load your modules from the SD Card

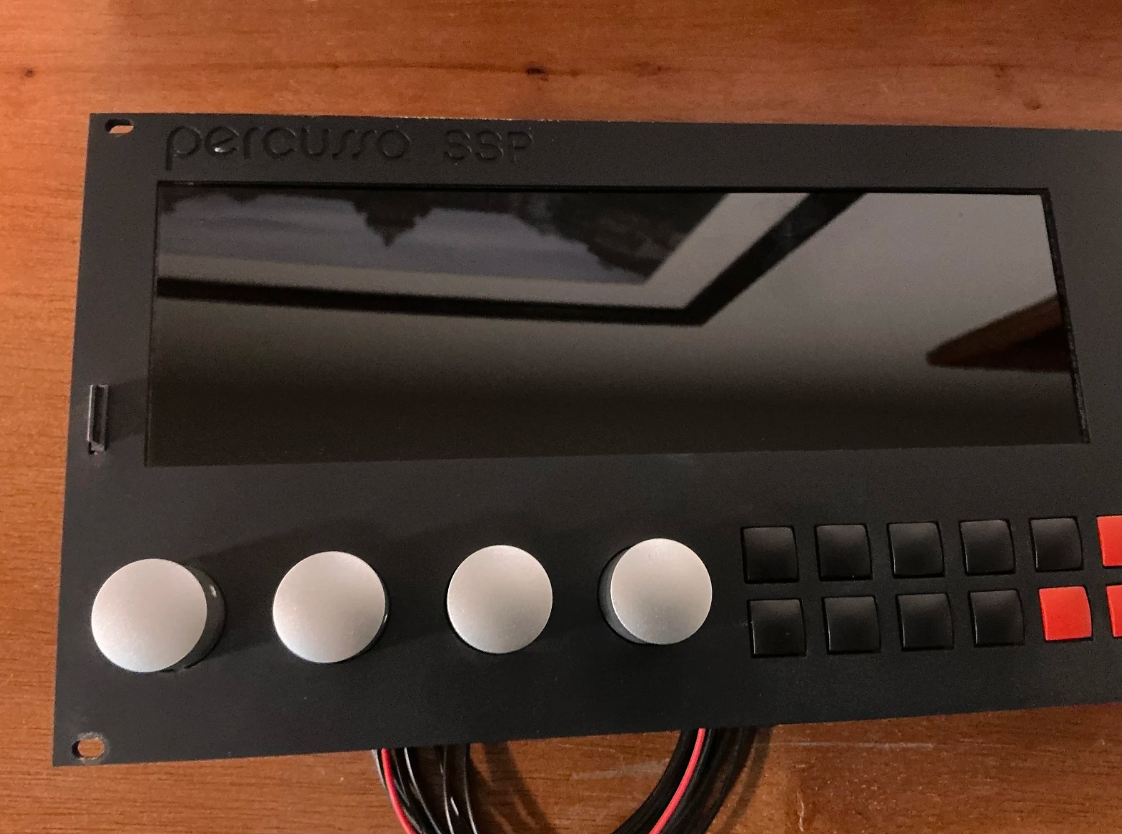

Display, Graphics and User Interface

• 1600x480 pixel wide format full colour LVDS IPS display
• 2D & 3D Graphics acceleration support (see stretch goals)
• 4x High quality Aluminium Machined Knobs
• 4x Bourns Endless and Click-less Encoders
• 18x Industrial Temperature MEC Switches
• User interface design featuring shallow menus (no menu diving), large fonts for readability and signal input / output Oscilloscope features

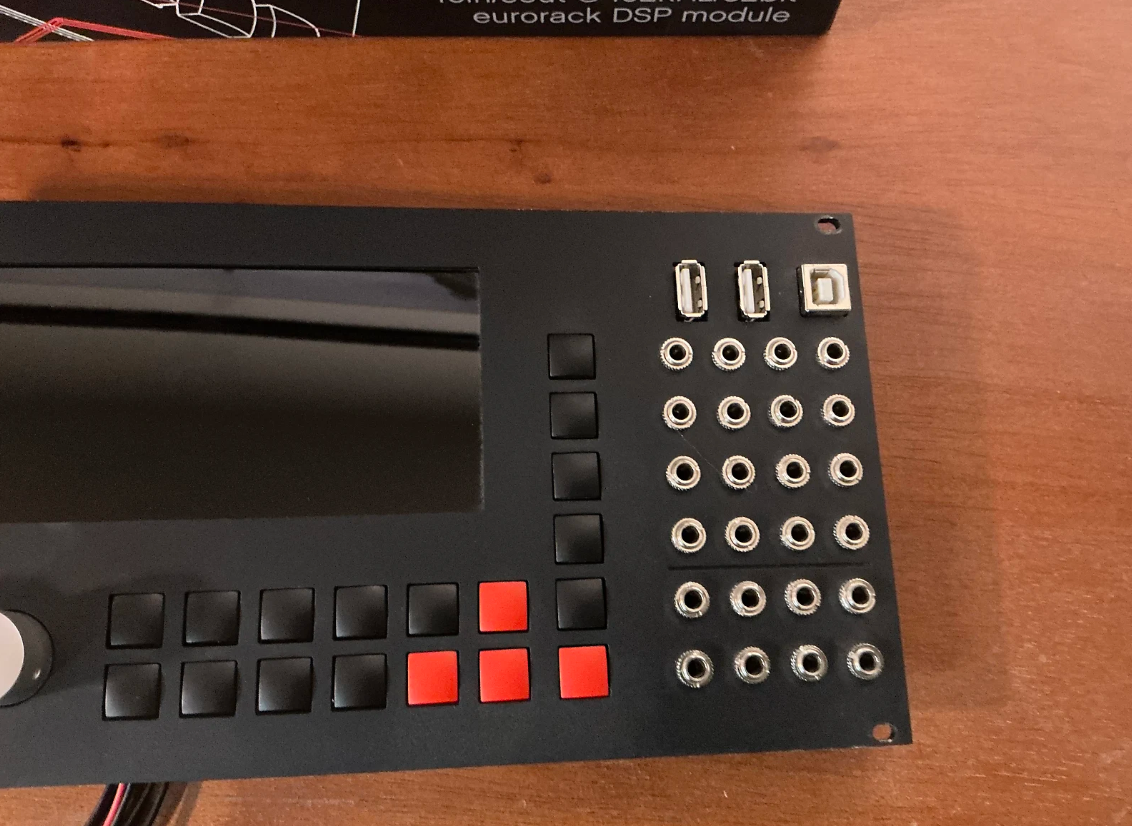

Connectivity

• 1 USB device port with USB Audio Class 2.0 support
• 1 USB host port with USB MIDI class and USB ethernet adapter support
• Serial (header) connector on PCB to access linux serial console

Storage

• 1 microSD card slot 16 GB professional microSD card (not included in DIY pledge) with FAT partition for easy sharing of presets and samples and for software updates (OS agnostic)
• 2GB onboard RAM

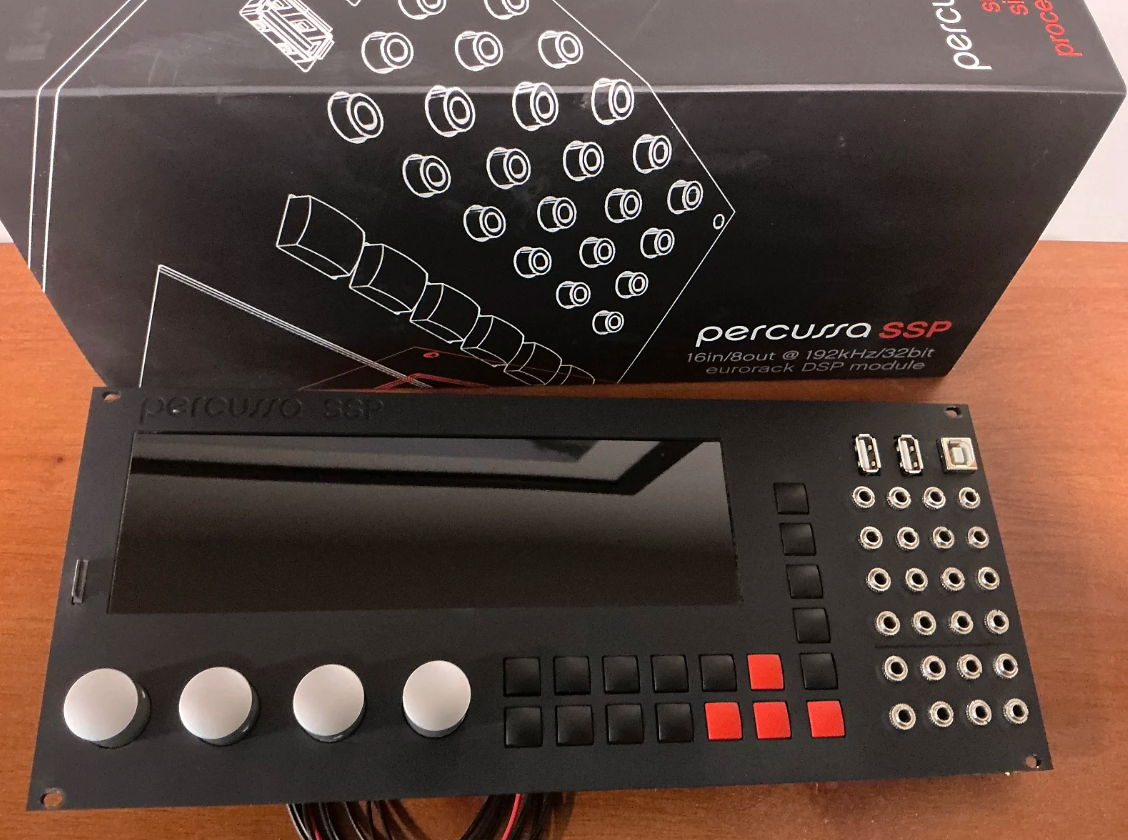

Dimensions and Front Panel

• 60HP width, 3U in height (eurorack compatible, see pledges for customization options)
• 50mm depth behind front panel (estimated)
• 2mm thick CNC machined / laser cut aluminium front panel, sandblasted and black anodized (see pledges for customization options)

Power

• 350mA @ +12V and 50mA @ -12V consumption (estimated)
• Standard 16-pin eurorack power connector
