Fiche technique
- Fabricant : Midas
- Modèle : XL4-2
- Catégorie : Préamplis à lampes
- Autres dénominations : xl42, xl 4 2
-

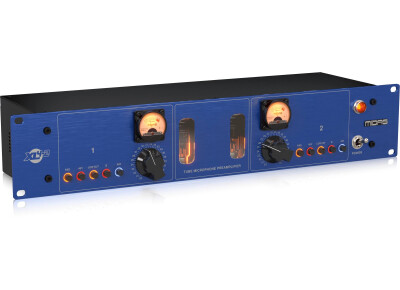

Classic tube microphone preamplifier for vocals, instruments and line-level sources
-
Perfectly matches your studio, live and hard disk recording set-up
-
Class-A, dual mono architecture with separate signal path for spatial imaging on stereo recordings
-
Extremely wide dynamic range for highest signal integrity
-
72 dB gain range for high-definition recordings
-
Large gain trim knobs provide precision control of input gains
-
Premium 12AX7 vacuum tubes for exceptional warmth and lowest noise
-
Vintage-style illuminated VU meters feature output signal levels
-
AIR circuitry enhances clarity and presence
-
Illuminated switches for phantom power, low cut filter, phase reverse, and pad for utmost flexibility
-
Rugged 2U rack mount chassis for durability in portable applications
-
Auto-ranging universal switch-mode power supply
| Microphone | |
| Type |
2 x XLR, balanced |
| Impedance |
3 kΩ |
| Max. input level |
+7 dBu pad out, +37 dBu pad in. |
| Gain |
+20 to +72 dB |
| Mic EIN @ 72 dB gain |
-128 dBu, 22 Hz to 22 kHz unweighted |
| CMRR @ 72 dB gain |
Typically >80 dB |
| PAD |
-30 dB |
| Type |
2 x XLR, 2 x 1/4" TRS, balanced |
| Impedence |
< 50 Ω balanced |
| Max. output level |
+27 dBu |
| System Specifications | |
| Frequency response (microphone) |
10 Hz to 50 kHz, ±0.5 dB |
| Distortion (THD+N) |
< 0.4% typical, 20 Hz to 20 kHz @ +20 dB gain |
| EIN Noise |
< -100 dBu, 20 Hz - 20 kHz unweighted @ +20 dB gain |
| Dynamic range |
> 107 dB typical (20 Hz to 20 kHz unweighted) |
| Crosstalk |
< 100 dB @ 1 kHz, +20 dB gain |
