Fiche technique
- Fabricant : Schertler

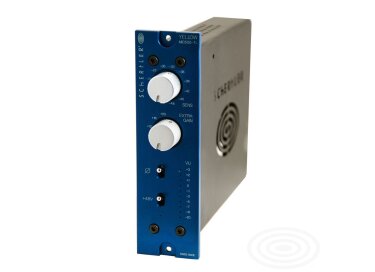

- Modèle : Yellow Mic500 TL
- Catégorie : Préamplis à transistors
- Autres dénominations : yellowmic500 tl, yellowmic500tl, yellow mic 500 tl, yellow mic500tl
single channel, full Class A, 500 series microphone preamp
anodized aluminium front panel
12-step rotary switch for adjusting input sensitivity (in 3dB increments)
extra gain control for use in weak signal conditions or when connecting low output sources such as ribbon mics.
full 10-segment VU meter with peak hold
two-position phase reverse switch
phantom power switch (+48V)
fully balanced signal path with no capacitor
discrete electronics
| Input impedance | TL model: 1880 Ohm |
| Output impedance | TL model: 70 Ohm |
| Maximum input level | +8dBu (@1kHz ; THD<0,5%) |
| Maximum output level | +18dBu (@1kHz ; THD<0,5%) |
| Gain range | 15 68 dB |
| Frequency response | 20Hz 20kHz +/ 0.5 dB |
| Equivalent input noise (EIN) | 128.7dB (150 Ohm ; @max gain) |
| Distorsion (THD+N) | < 0,02 % (@1kHz ; 10 dBu) |
| Power consumption | 84 mA DC |
»
