Fiche technique
- Fabricant : Audinate
- Modèle : Dante AV
- Catégorie : Produits divers
- Autres dénominations : danteav

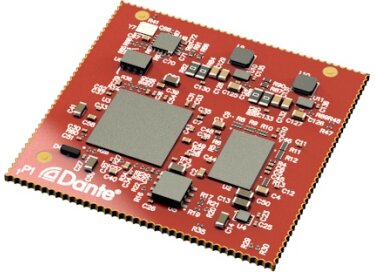

Carte permettant d'interfacer l'audio et la vidéo avec un réseau IP
- Compact Power – 8 in or out audio, 1 in or out video, plus 1Gbps Ethernet interface in a 50mm x 50mm package
- Simple audio and video interfacing – I2S interface allows direct connection to a wide variety of ADC, DAC, DSP and amplifier chips and the 32 bit video interface can be interconnected to any video codec running at up to 800Mbps
- HDCP on board processing – Dante AV Module provides logic in a turnkey design for HDCP over networking.
- Point to Multipoint and Point to Point Distribution – Dante AV Module supports both unicast and multicast video distribution of both HDCP protected and unprotected content. HDCP multicast is managed by Dante Domain Manager.
- Rich set of control interfaces – Choice of SPI, UART, and GPIO interfaces enable sophisticated products with networked control
- Firmware updatable – Software updates with new features and fixes can be loaded via the network
- Device monitoring: Signal presence, latency statistics and clock stability statistics exposed to Dante Controller for real-time device status monitoring
»
