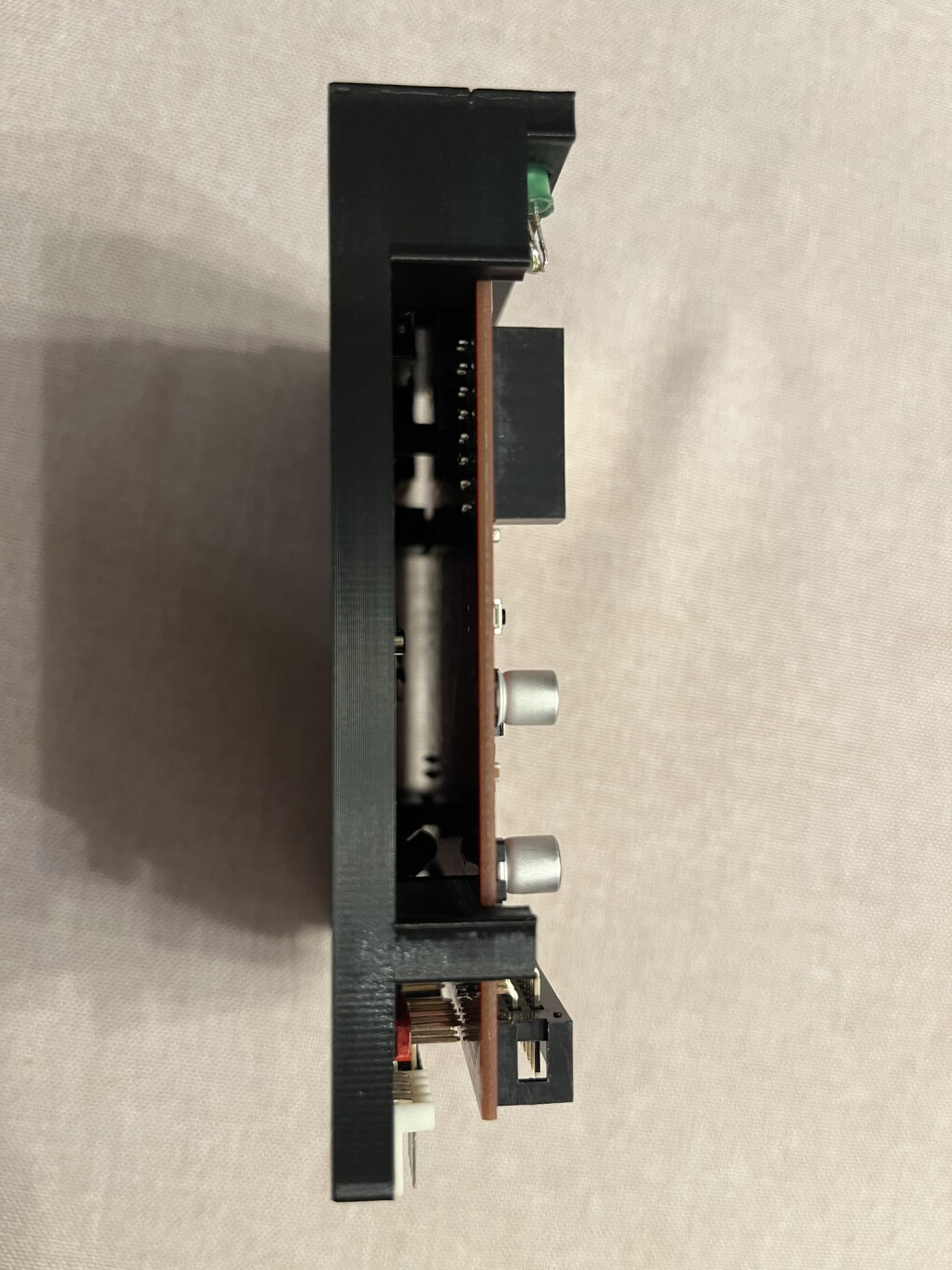

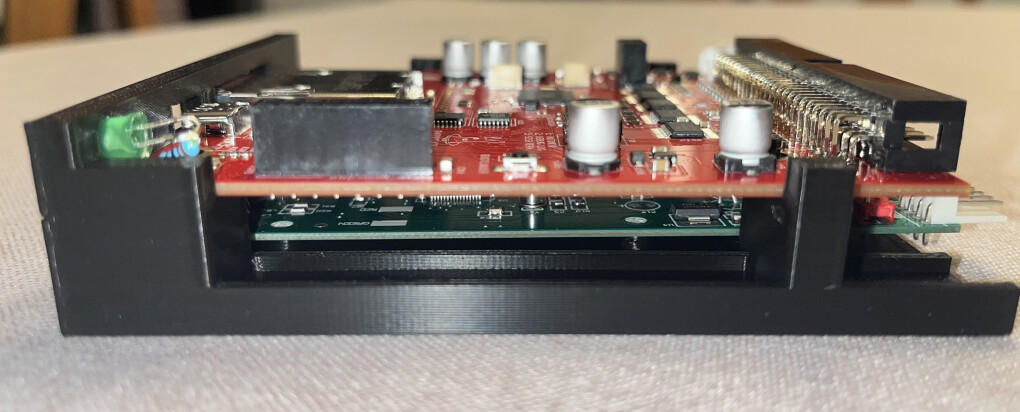

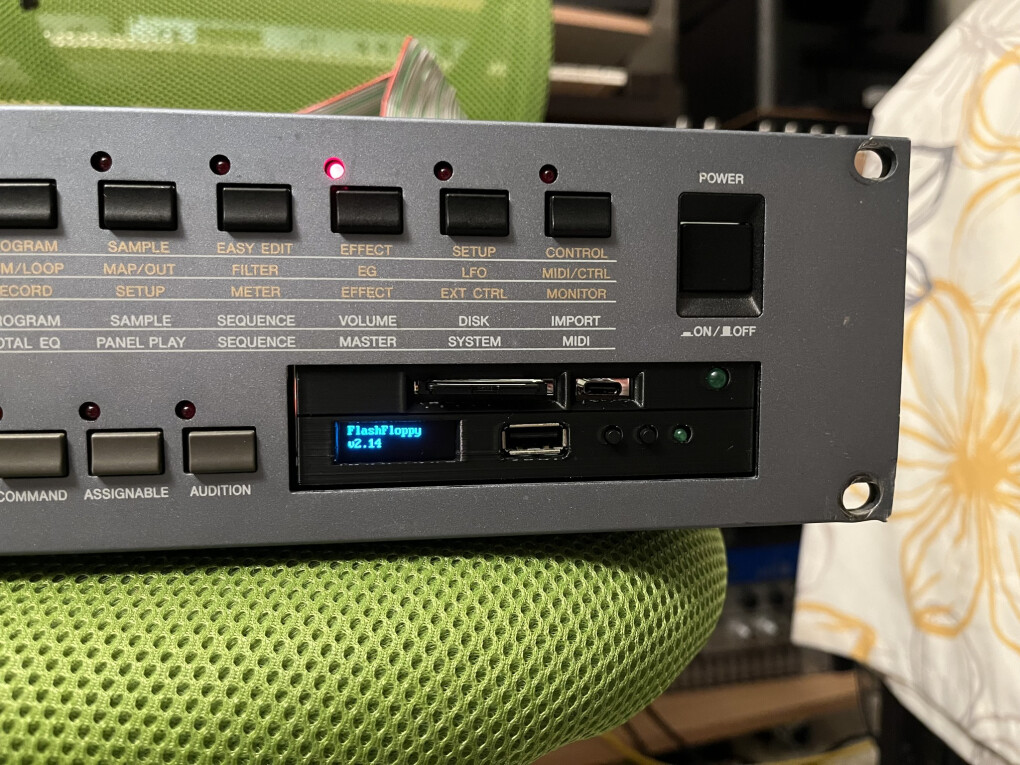

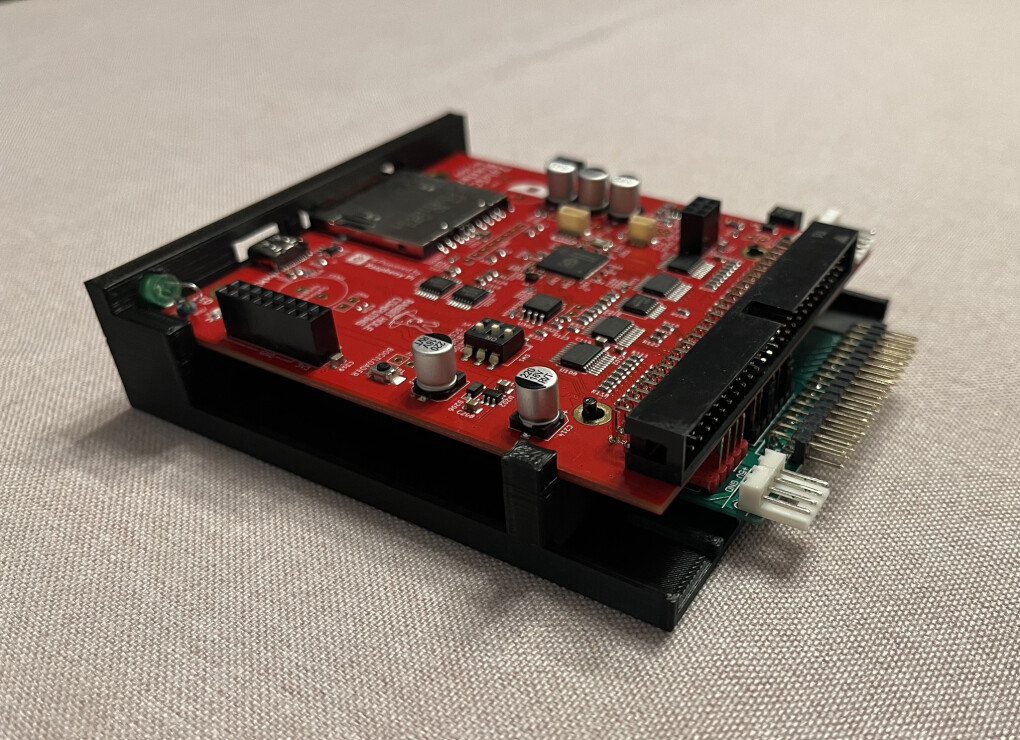

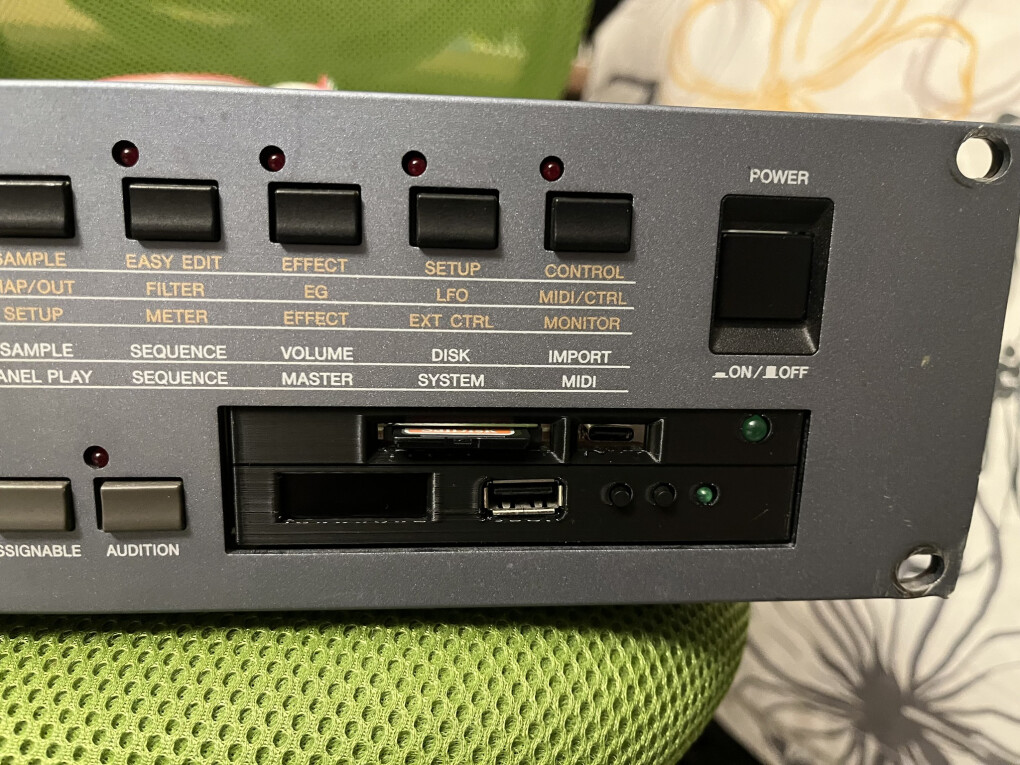

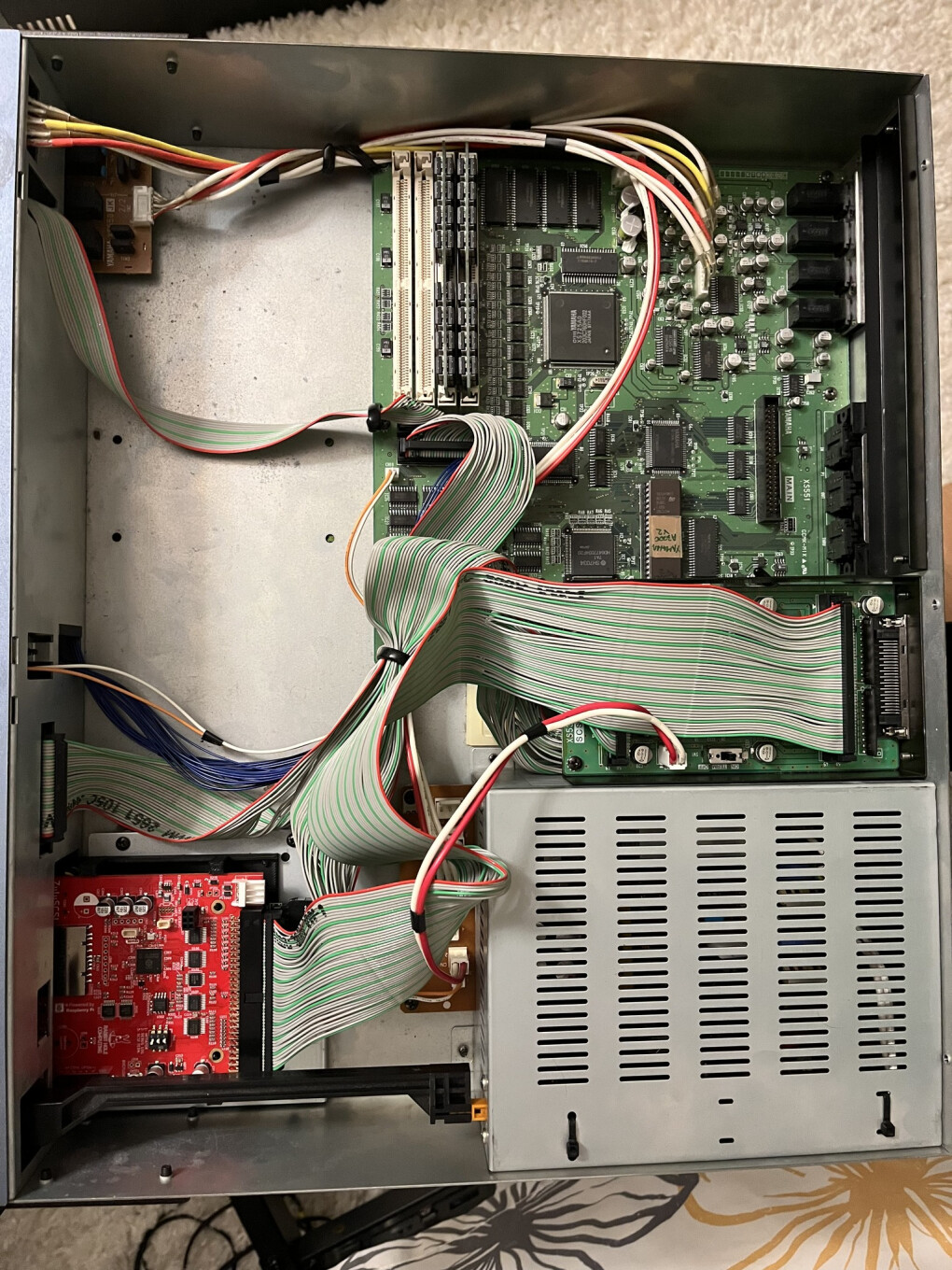

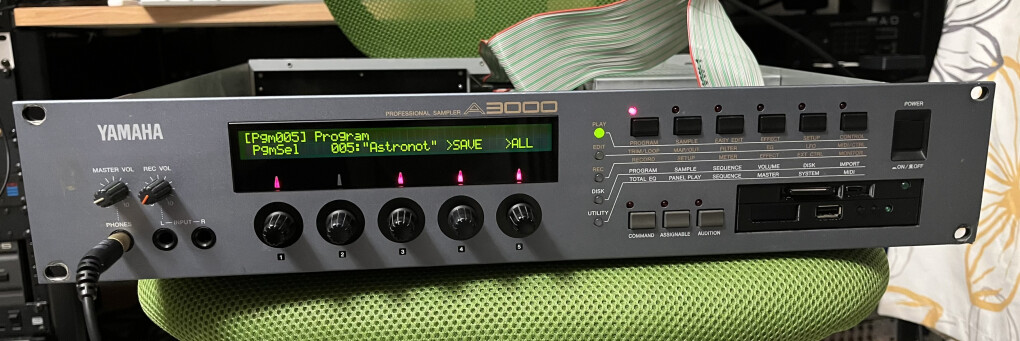

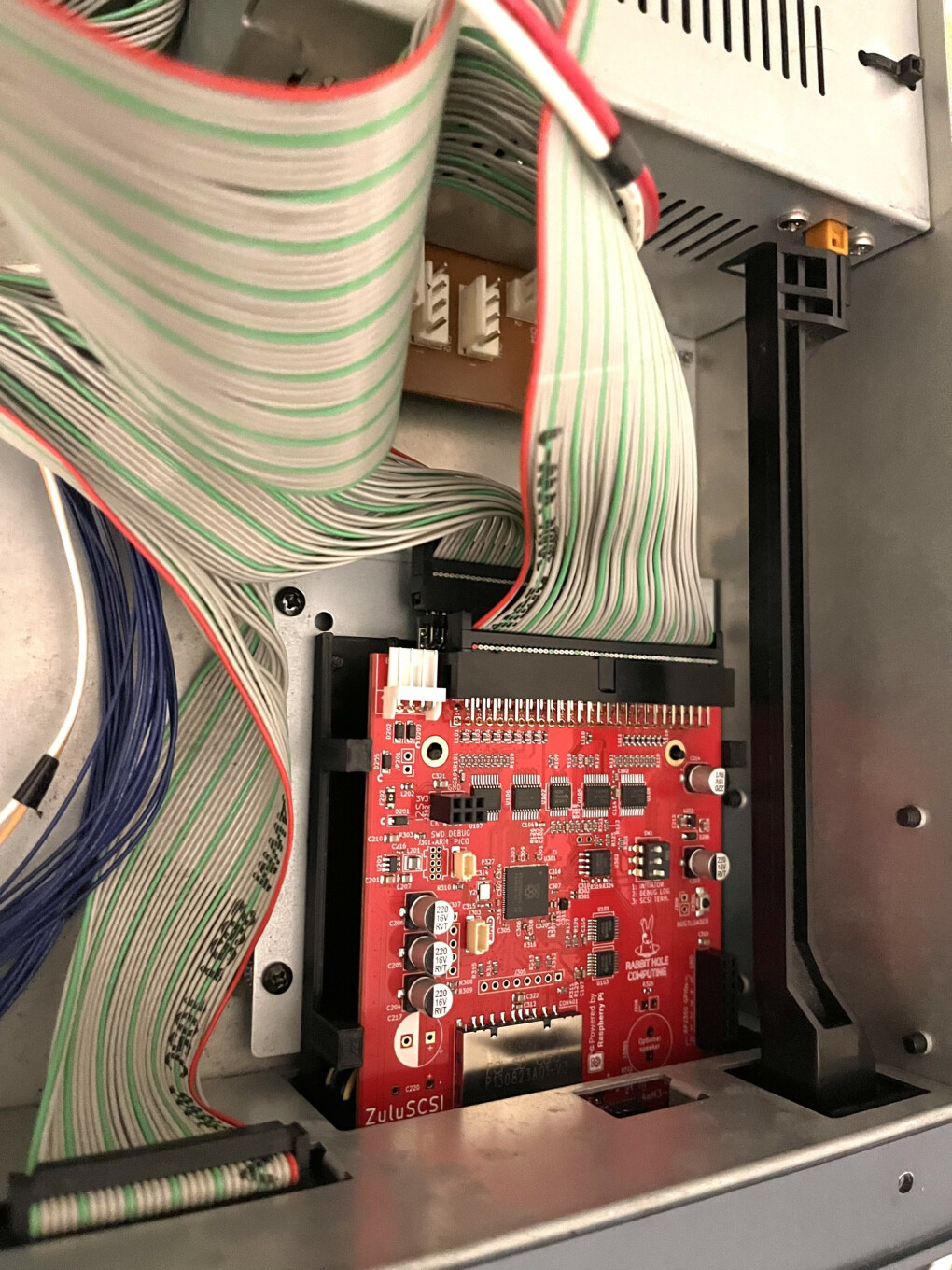

After getting ASIB1 (directly from Japan, LOL) and ZuluSCSI Blaster for my A3000, and inability to run it without FDD (Gotek Floppy emulator in my case), I was thinking on retaining both and after few attempts I came up with this:
NOTES:
1) My Gotek is old model (installed some years ago) which I flashed with FlashFloppy and installed OLED by myself. I am not sure if Gotek had encoder it would fit (never really needed encoder and looks cleaner without it).
2) Gotek LED was relocated (routed) to be at the same row as buttons (it was flexible and long enough to allow that.

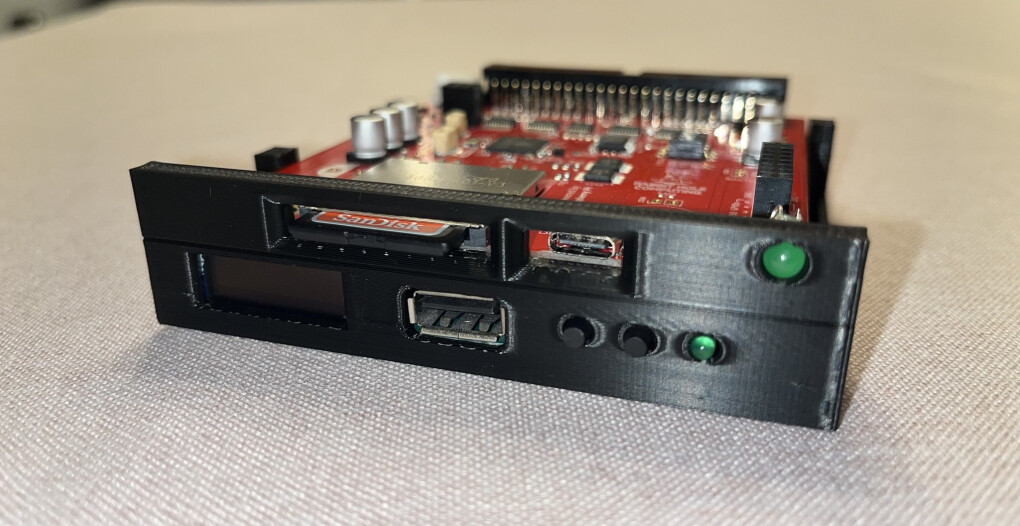

3) I have added green LED to ZuluSCSI, so faceplate has a hole for it (with 5.1K resistor, should have chosen higher value as it still bright in the dark room and A-series polls disks often, so it is like "heartbeat" even if a disk is not in use🙃).
4) The model was specifically built for A-series, so I haven't tested the top clearance (it should fit, but didn't actually checked).

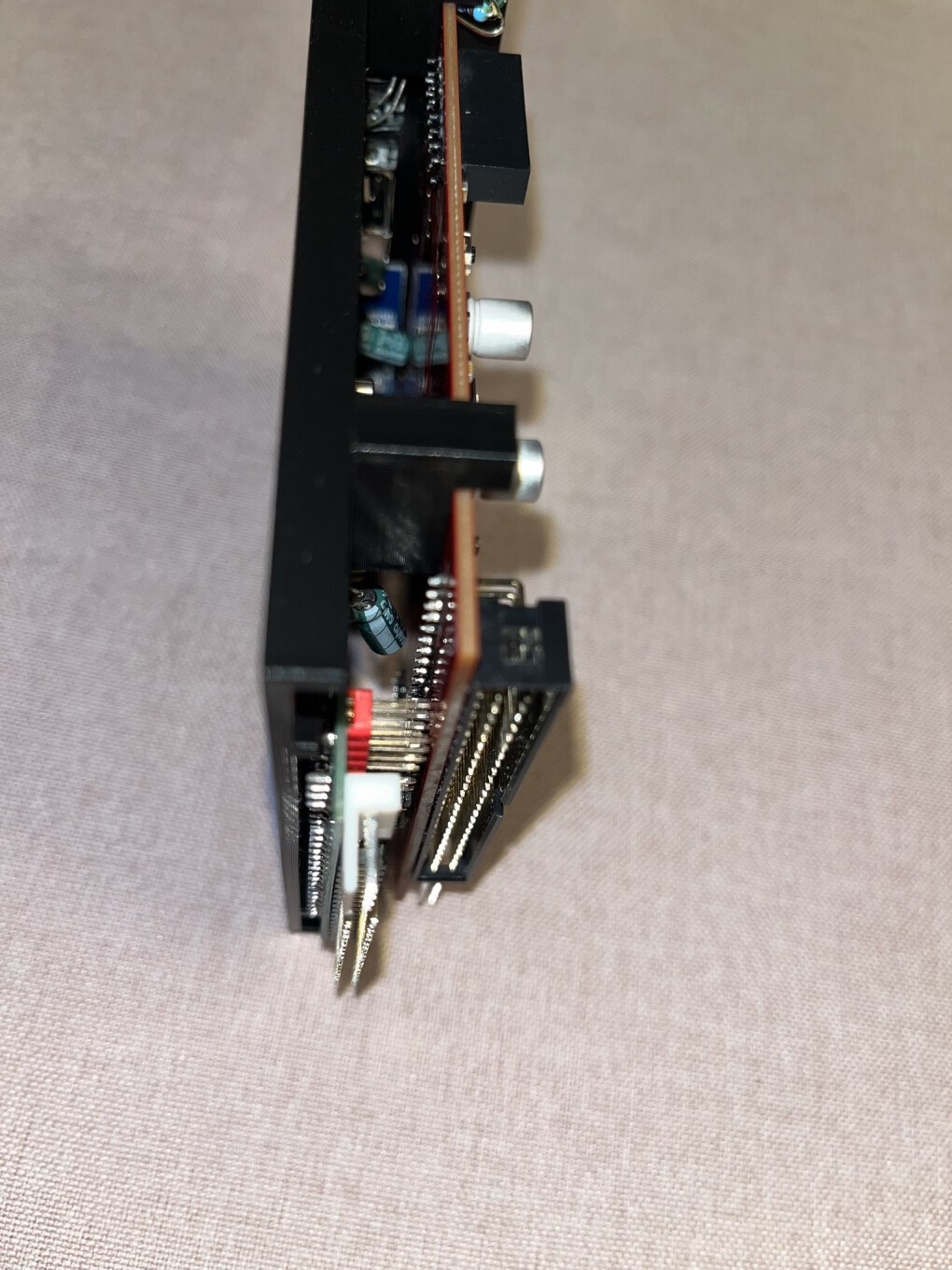

5) Gotek tall capacitors needs to be pushed to the side as possible to allow enough clearance (again, I have used old Gotek here and haven't checked with current ones).

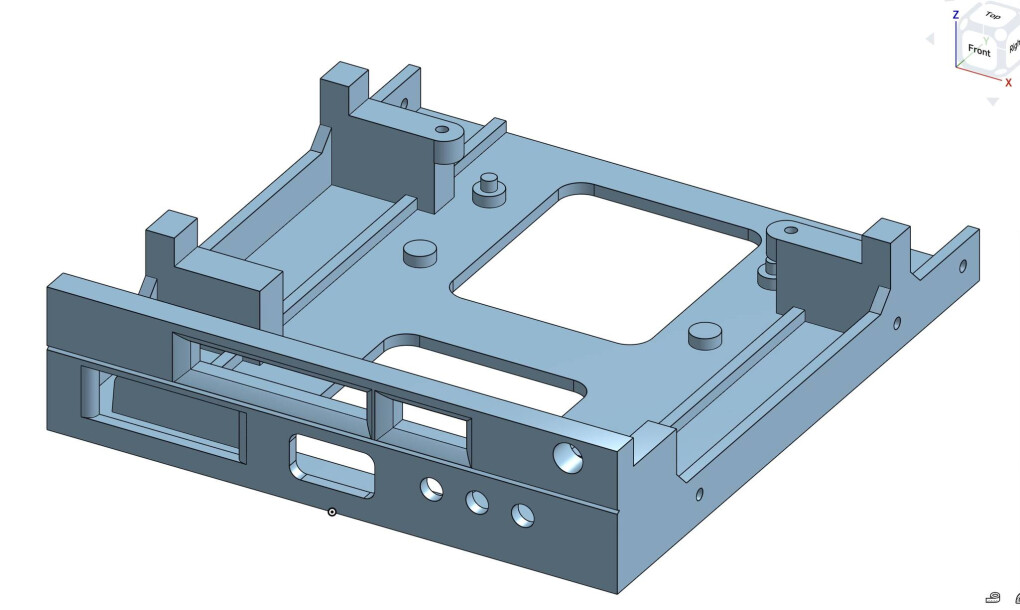

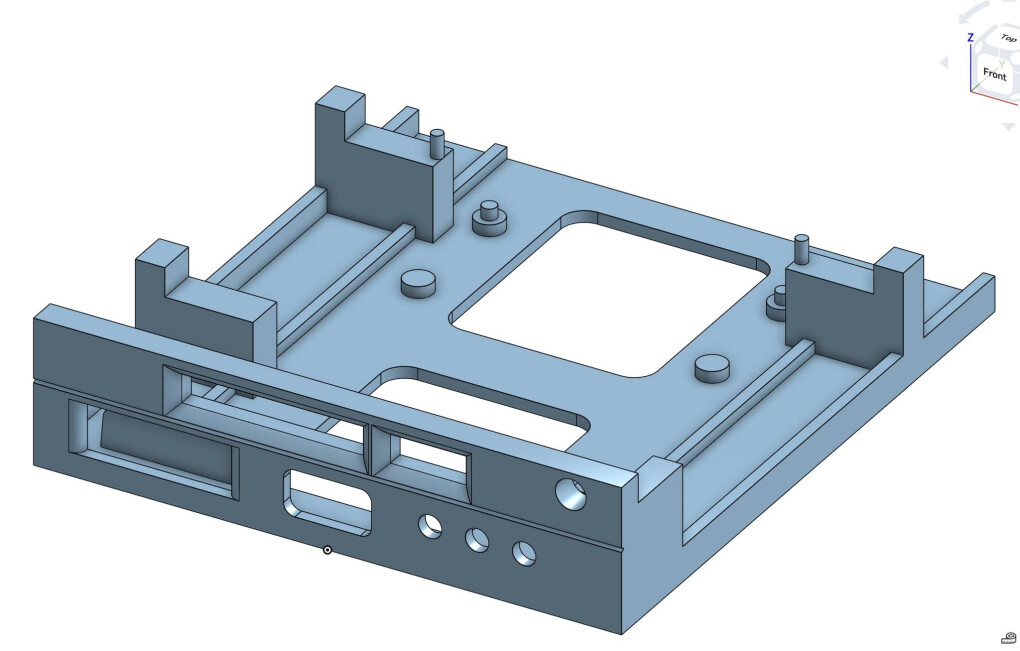

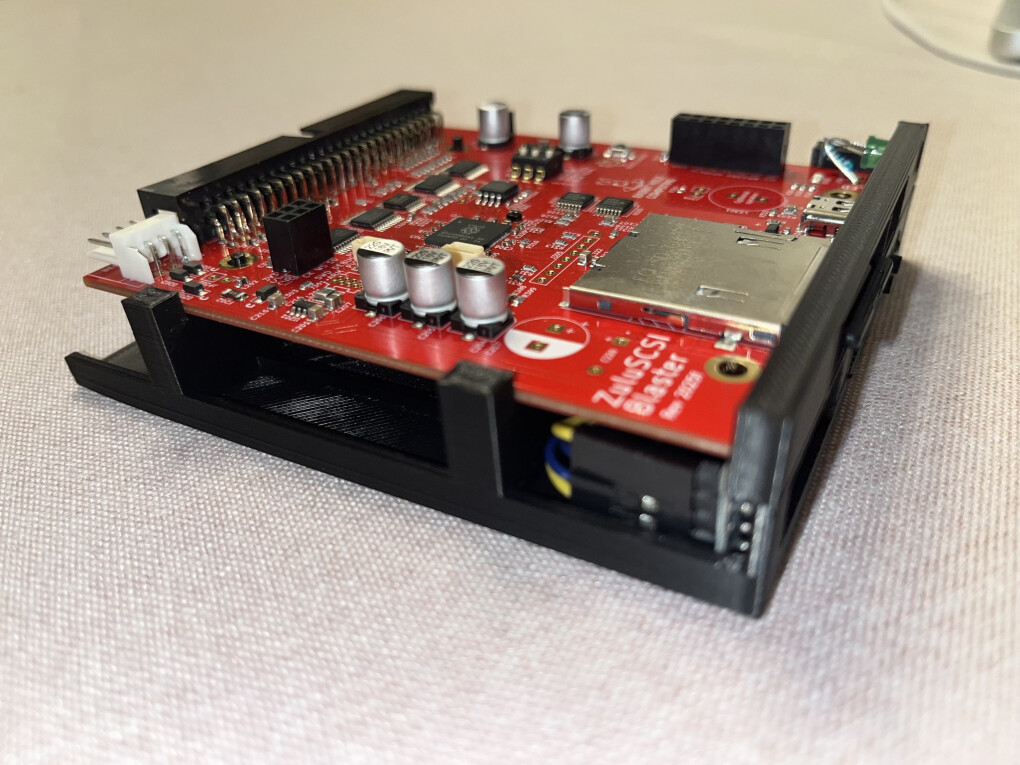

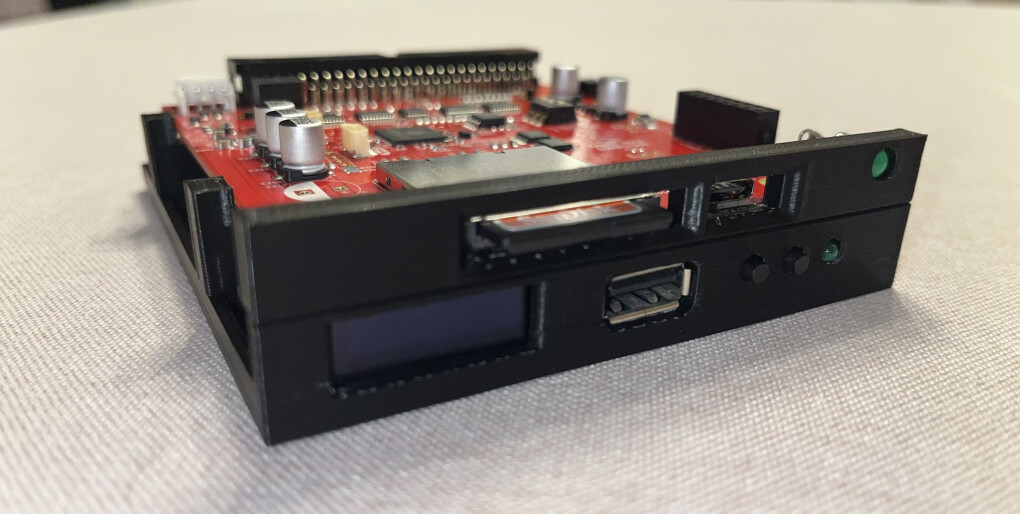

Two 3D models images represent the model I've printed and shown in photos, while another one has some improvements, such as screw holes for the ZuluSCSI instead of pins, and I forgot outer mounting holes.🤣 I plan to add STLs to this post after I will print the final version for my A5000.
