Fiche technique
- Fabricant : VintageMaker
- Modèle : littleone 16x2 DB25 DSUB
- Catégorie : Sommateurs
- Fiche créée le : 03/12/2017

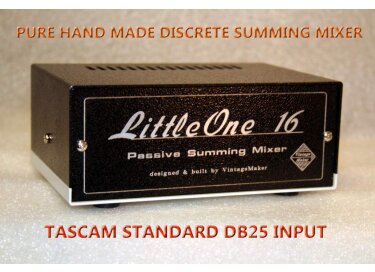

LittleOne Passive Summing mixer come with 3 type of gain make up requirements:
- LOW: -15dB gain up ideal for entry level preamps or DAW mic pre or instrument input
- MID: -20dB gain up ideal for mid range preamps or DAW mic pre or instrument input
- HIGH: -25dB gain up ideal for high range preamps like Neve, Api, Avalon or DAW mic pre
- Selected VISHAY DALE military metal-film resistors!
- In/Out:Balanced, floating to ground
- Insertion input resistance: -15dB / -20dB / -25dB (order)
- Output impedance 600-1k ohms balanced
- Output level: -15 dB nominal (basic setup)
- Frequency response: 0-500Khz
- Crosstalk 1Khz: -95dB
- In/Out: Balanced, floating to ground
- Signal/ Noise rate: -110dB (RME HDSP tested, no DAW inputs connected)
- TRS wiring: (Tip:HOT/,Ring:COLD/Sleeve:GROUND)
- Pure hand made! Hand wired and tested point-to-point!
- Selected VISHAY DALE military metal-film resistors!
- Laser engraved massive aluminium alloy box!
»
