Fiche technique
- Fabricant : Roland
- Modèle : SYR-E84
- Série : AIRA
- Catégorie : Stands & Racks
- Poids du colis : 3.7 kg
- Fiche créée le : 20/11/2015

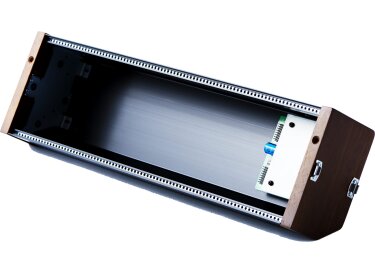

8HP Eurorack lunchbox for the AIRA modular electronic instruments such as the SYSTEM-1m, BITRAZER, DEMORA, TORCIDO, SCOOPER, and SYSTEM-500, as well as standard Eurorack modules from other manufacturers, with power supply
- 84HP Eurorack case with rugged aluminum construction and wood side panels
- Modules can be securely mounted to the M3 bar nut and the included flying male bus cable
- Includes a super-clean 2000 mA power supply designed especially for modular synths and effects
- Stackable design and included screws allow two SYR-E84 cases to be joined together when a larger setup is required
- Slant on the bottom corner of the case allows for angled positioning
- Portable size and weight with a protective cover for travel
- Case cover can be attached to the back with a latch to provide extra stability
- Overcurrent protection to safeguard users and modules from hazardous currents
Power SupplyAC Adaptor (DC 12 V)Current Capacity2,000 mA: +12V
300 mA: +5V
500 mA: -12VPower Consumption30 W: +12V
3 W: +5V
10 W: -12VAccessoriesOwner's Manual
Leaflet "USING THE UNIT SAFELY"
Eurorack installation screw x 40
16-pin Eurorack power supply cable x 2
AC adaptor
Power cordSIZE AND WEIGHTWidth481 mm
18-15/16 inchesDepth135 mm
5-3/8 inchesHeight157 (H) mm
6-3/16 (H) inchesWeight2.4 kg
5 lbs 5 oz
Distribué par rolandcentraleurope
