Synapse Audio Antidote RE

• Fabricant : Synapse Audio
• Modèle : Antidote RE
• Catégorie : Synthés virtuels soustractifs
• Fiche créée le : 04/03/2013

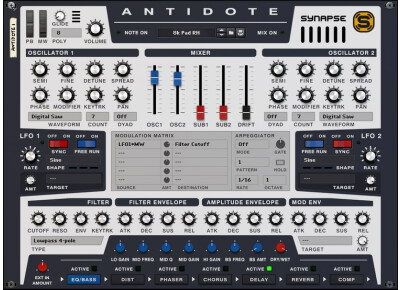

Antidote RE comes feature packed with two stereo oscillator banks, each emitting a stack of up to 50 virtual-analog oscillators per voice, in highest audio quality. Conventional synthesizers cannot even reach that in unison mode.  With all voices active, Antidote delivers up to 800 stereo oscillators.

The available oscillator shapes not only comprise classic analog waveforms such as sawtooth, pulse and triangle. Each oscillator type has an additional feature (called a “Modifier”), which allows to apply extra features such as hard sync, pulse width modulation or to blend between different waveform shapes.


--- Filters ----

Antidote employs a multimode filter with the latest zero-delay feedback designs. This recent technology models the highly sought after sound of analog filters much more faithfully than previous designs. When adding resonance, in particular, the behavior of the filters is much closer to vintage analog hardware.

Filter designs in Antidote comprise the OTA low pass ladder, a filter topology frequently seen in analog synthesizers. Low pass roll offs range from 6 to 24 dB, so that anything from deep fat basses to thin bright sounds can be synthesized. The low pass filter reaches self-oscillation and is properly tuned, so that the filter can be used as an oscillator at high resonant levels. Two derivative filters yield a 12 dB bandpass and high pass response.

A unique feature in Antidote is the diode ladder filter, which models a rare analog filter circuit composed out of diodes (or transistors hooked up as diodes). This filter topology is widely known from the famous "silver box", and responsible for some unforgotten classic analog sounds, like growling basses and squelchy leads.

--- Modulation ----

Three envelopes, two LFOs and the arpeggiator further shape the sound. The powerful modulation matrix, which can modulate almost any sound parameter, adds the necessary depth to realize complex sounds. Furthermore, CV inputs on the back panel can be used to modulate any sound parameter from any Reason device.

--- Arpeggiator ----

The arpeggiator module in Antidote features the well-known classic modes (up/down/...), with 20 preset rhythms to choose from. But there's more to it, of course - the arpeggiator both emits a gate and an accent signal, freely usable as a modulation source.

--- Effects ----

One of the big strengths of Antidote is its massive effect chain, which contain some of the best effect algorithms from Synapse Audio. A total of 8 effect modules is available, all of which can be used simultaneously.

EQ and Bass: A classic three-band EQ design followed by a bass enhancer. The bass enhancer is modeled from circuits found in some legendary analog synths, and allows Antidote to mimic their bass response.

Distortion: Full stereo distortion effect using 4x oversampling to minimize aliasing noise. Tone, Low- and high-pass controls can be used to further refine the distortion timbre at the output of the effect.

Phaser: High-quality stereo phaser, based on the Synapse AP-12 phaser technology.

Chorus: Stereo chorus effect with adjustable delay time and feedback, allowing the unit to be used both as a chorus, as well as a flanger effect.

Delay: A comprehensive delay section with separate L/R controls, a color parameter for low/high pass echoes, and a modulation section to create a full, lush stereo delay sound.

Reverb: The reverb unit is based on the Synapse DR-1 rack extension, a modulated true stereo reverb modeled after high-end hardware.

Compressor: The smooth stereo compressor allows instant level reduction with attack times ranging down to the microsecond range, while minimizing artifacts as much as possible, and without introducing any latency.

The effect processor in Antidote can be used with external sources as well, and was designed with that option in mind. As a result, the processor intensive effects such as the reverb do not use any CPU when idle.

Antidote comes with 500 patches sorted into the common categories (Arpeggiated, Bass, Lead, Pads, etc.) as well as 10 Combinator patches. Be sure to check out our website regularly for free additional content to download.
