Posté sur le site de Waldorf mais le lien n'est plus actif.
Overview
16-voice polyphony, duo-timbral, compatible with the Quantum synth engine; 3 digital oscillators per voice; Choice between the following sound generators: Wavetable, Classic waveforms, Granular Sampler, Resonator; Kernel; Two digital stereo filters in different modes and configurations; 6 LFOs in poly and global mode; 6 envelopes; Master effect rack with 5 slots; Master compressor; Modulation matrix with 40 slots; Load and save presets via USB and SD card; 2 GB internal memory;

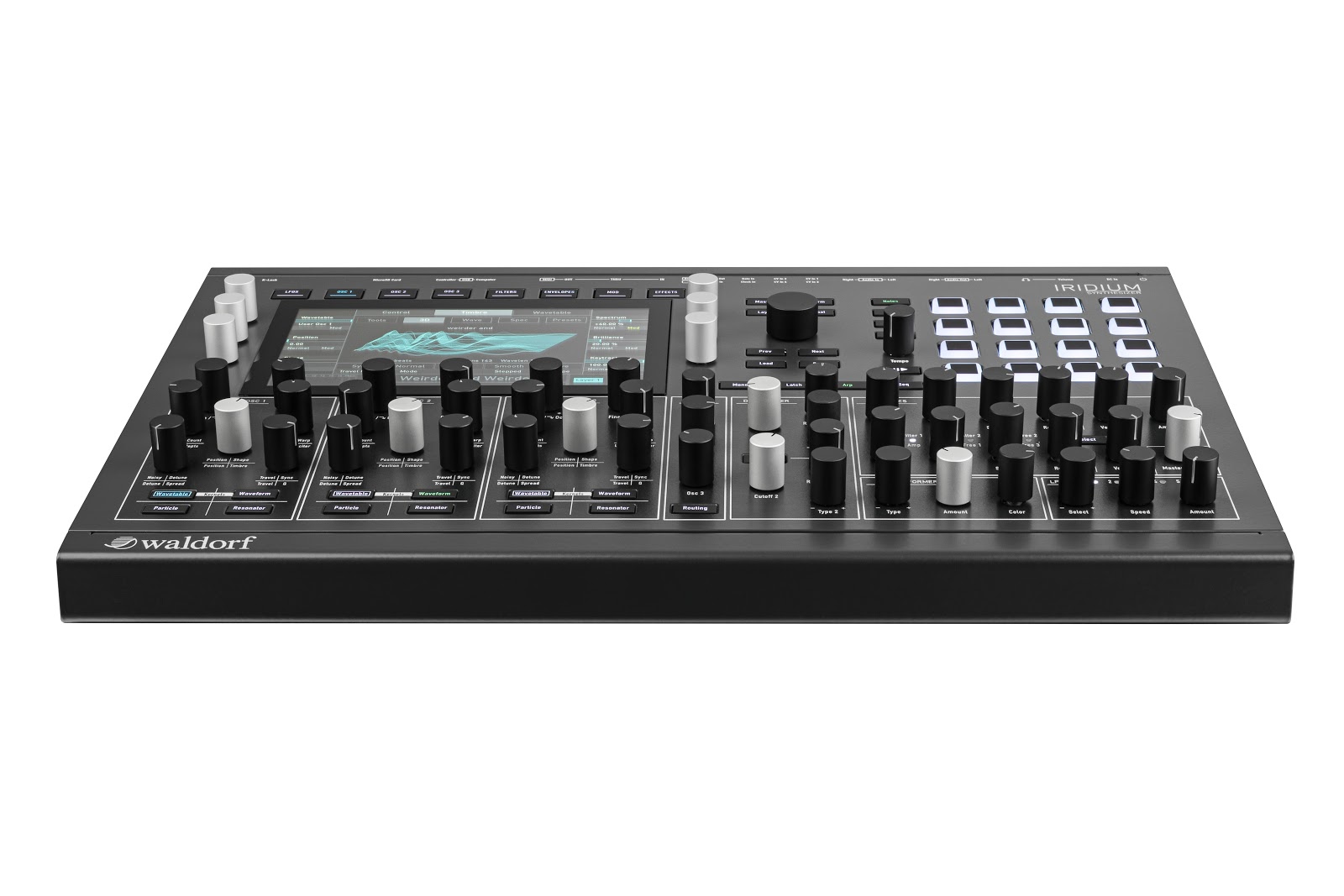

Waldorf Iridium has made the impossible possible. The mighty synth engine from Quantum is now available in a compact form. Tracing the footsteps of its bigger brother, Iridium features all the synthesis elements of Quantum as well in a rack-compatible format. The combination of the powerful engine, incredible flexibility and detailed sound shaping facilities creates sheer endless possibilities of sound. Yet, the comprehensive layout and easy-to-understand structure lets you design your own sounds in no time. Sporting a solid metal casing and the same high level of craftsmanship like Quantum, Iridium is now ready to take over studios and stages throughout the world.
Contributing another entry in Waldorf’s rich history, Iridium joins the family as a direct descendant of the PPG Wave. Though, Iridium offers much more than its ancestor. Five different synthesis models are provided by Iridum for each of the three oscillators:
Wavetable
Waveform (Virtual Analog)
Particle (Sampling and Granular Sampling)
Resonator
Kernels
Kernel mode has been introduced with the OS 2.0 of Quantum. This huge upgrade allows one oscillator to be turned into up to six sub oscillators. These can be interlinked through FM at audio rate and arranged in user-definable constellations. Just this upgrade alone would have provided enough additional features to create a synthesizer on its own. Now, all those functions have been integrated into Iridium as well.
Up to 7000 patches can be saved in Iridium. Patches from Quantum can be loaded in Iridium and vice-versa.
Iridium features three digital filters per voice. Two in the Dual Filter section and another one in the Digital Former. Several types are available to choose from:
12 or 24dB and Lowpass/Highpass/Bandpass with optional saturation or dirtiness.
Various filter models are available including those from Waldorf Nave, Largo and PPG 3V.
The Dual Filter section can be controlled independently or together in several different link modes.
The Digital Former offers all the filter types and models from the Dual Filter plus unusual models like Comb, Drive, Bitcrusher and more in addition.
All filters retain a true stereo signal throughout the entire structure of the instrument.
Up and down, back and forth
6 Envelopes, 6 LFOs and many more are just waiting for being used as sources in the 40 slots of the Modulation Matrix. Each slot has one additional control amount. Modulations can be directed to almost every numerical value in Iridium. All sources and destinations can be used as many times as desired until the Modulation Matrix is full. If you ever happen to run out of LFOs or Envelopes, you can use the Komplex Modulator for generating a custom shape LFO or Envelope.
Complex, but not complicated
Even though Iridium features a staggering amount of parameters to control, everything is organized in a logic structure which is easy to master. The major controls have their own dedicated knob, while the rest is accessible through the touch screen and the encoders around. There are no long menus keeping you from doing what you had planned. Instead, you will find a workflow which you will soon miss on other synthesizers.
Hands-on
Embedded in the front panel, a 4x4 silicon pad matrix invites you to launch notes, chords, arpeggios and sequences with up to 32 steps for notes and multiple parameter lines. Direct access to the parameters is granted by the seven encoders to the left and the right hand side of the touch screen.
Take a look inside!
Iridiums large color touch screen keeps you informed at all times. Upon moving a knob, Iridium gives you an optical feedback of your changes in real-time. Filter curves move, Particle grain sizes change, Envelopes warp and much more:
Komplex Modulator curves can be drawn with your finger
Envelopes show at which point the voices currently are
Wavetables are displayed in comprehensive view modes
VU meters show which voices are used and the individual voice levels
Different Analyzers show the audio signal at different points
Get connected
Two Audio Outputs allow you to listen to Iridium, while two Inputs allow Iridium to process external signals. 4 CV inputs plus Gate In and Trigger In are ready to forward external signals to the Mod Matrix. Furthermore, Clock In and Clock Out will get your gear in sync. MIDI connections can be made through USB and DIN MIDI. Iridium is also equipped with a USB Host port for MIDI devices. This port also handles data exchange, in addition to the MicroSD card slot.
Once again, Waldorf have underlined their status with a new and exciting synthesizer.
Iridium is designed, constructed and made in Germany. All components used are industrial grade quality to create a reliable studio device that is made to last for many years.
Iridium has been released and is now available from a dealer near you. Please inquire at our distributor for your country.
MSRP: 1960€ (not including taxes)
Overview
16-voice polyphony, duo-timbral, compatible with the Quantum synth engine; 3 digital oscillators per voice; Choice between the following sound generators: Wavetable, Classic waveforms, Granular Sampler, Resonator; Kernel; Two digital stereo filters in different modes and configurations; 6 LFOs in poly and global mode; 6 envelopes; Master effect rack with 5 slots; Master compressor; Modulation matrix with 40 slots; Load and save presets via USB and SD card; 2 GB internal memory;
Waldorf Iridium has made the impossible possible. The mighty synth engine from Quantum is now available in a compact form. Tracing the footsteps of its bigger brother, Iridium features all the synthesis elements of Quantum as well in a rack-compatible format. The combination of the powerful engine, incredible flexibility and detailed sound shaping facilities creates sheer endless possibilities of sound. Yet, the comprehensive layout and easy-to-understand structure lets you design your own sounds in no time. Sporting a solid metal casing and the same high level of craftsmanship like Quantum, Iridium is now ready to take over studios and stages throughout the world.
Contributing another entry in Waldorf’s rich history, Iridium joins the family as a direct descendant of the PPG Wave. Though, Iridium offers much more than its ancestor. Five different synthesis models are provided by Iridum for each of the three oscillators:
Wavetable
Waveform (Virtual Analog)
Particle (Sampling and Granular Sampling)
Resonator
Kernels
Kernel mode has been introduced with the OS 2.0 of Quantum. This huge upgrade allows one oscillator to be turned into up to six sub oscillators. These can be interlinked through FM at audio rate and arranged in user-definable constellations. Just this upgrade alone would have provided enough additional features to create a synthesizer on its own. Now, all those functions have been integrated into Iridium as well.
Up to 7000 patches can be saved in Iridium. Patches from Quantum can be loaded in Iridium and vice-versa.
Iridium features three digital filters per voice. Two in the Dual Filter section and another one in the Digital Former. Several types are available to choose from:
12 or 24dB and Lowpass/Highpass/Bandpass with optional saturation or dirtiness.
Various filter models are available including those from Waldorf Nave, Largo and PPG 3V.
The Dual Filter section can be controlled independently or together in several different link modes.
The Digital Former offers all the filter types and models from the Dual Filter plus unusual models like Comb, Drive, Bitcrusher and more in addition.
All filters retain a true stereo signal throughout the entire structure of the instrument.
Up and down, back and forth
6 Envelopes, 6 LFOs and many more are just waiting for being used as sources in the 40 slots of the Modulation Matrix. Each slot has one additional control amount. Modulations can be directed to almost every numerical value in Iridium. All sources and destinations can be used as many times as desired until the Modulation Matrix is full. If you ever happen to run out of LFOs or Envelopes, you can use the Komplex Modulator for generating a custom shape LFO or Envelope.
Complex, but not complicated
Even though Iridium features a staggering amount of parameters to control, everything is organized in a logic structure which is easy to master. The major controls have their own dedicated knob, while the rest is accessible through the touch screen and the encoders around. There are no long menus keeping you from doing what you had planned. Instead, you will find a workflow which you will soon miss on other synthesizers.
Hands-on
Embedded in the front panel, a 4x4 silicon pad matrix invites you to launch notes, chords, arpeggios and sequences with up to 32 steps for notes and multiple parameter lines. Direct access to the parameters is granted by the seven encoders to the left and the right hand side of the touch screen.
Take a look inside!
Iridiums large color touch screen keeps you informed at all times. Upon moving a knob, Iridium gives you an optical feedback of your changes in real-time. Filter curves move, Particle grain sizes change, Envelopes warp and much more:
Komplex Modulator curves can be drawn with your finger
Envelopes show at which point the voices currently are
Wavetables are displayed in comprehensive view modes
VU meters show which voices are used and the individual voice levels
Different Analyzers show the audio signal at different points
Get connected
Two Audio Outputs allow you to listen to Iridium, while two Inputs allow Iridium to process external signals. 4 CV inputs plus Gate In and Trigger In are ready to forward external signals to the Mod Matrix. Furthermore, Clock In and Clock Out will get your gear in sync. MIDI connections can be made through USB and DIN MIDI. Iridium is also equipped with a USB Host port for MIDI devices. This port also handles data exchange, in addition to the MicroSD card slot.
Once again, Waldorf have underlined their status with a new and exciting synthesizer.
Iridium is designed, constructed and made in Germany. All components used are industrial grade quality to create a reliable studio device that is made to last for many years.
Iridium has been released and is now available from a dealer near you. Please inquire at our distributor for your country.
MSRP: 1960€ (not including taxes)
[ Dernière édition du message le 10/06/2020 à 18:44:24 ]
- 1
- 2
Sn2o
1721
AFicionado·a
Membre depuis 17 ans
tomheck
772
Posteur·euse AFfolé·e
Membre depuis 18 ans
Sn2o
1721
AFicionado·a
Membre depuis 17 ans
oui oui c'est un bel objet
Ho'Dog
24647
Vie après AF ?
Membre depuis 16 ans
Ah ouais pas mal, pas donné effectivement mais c'est pas volé
Très bel objet, c'est clair !
Très bel objet, c'est clair !
